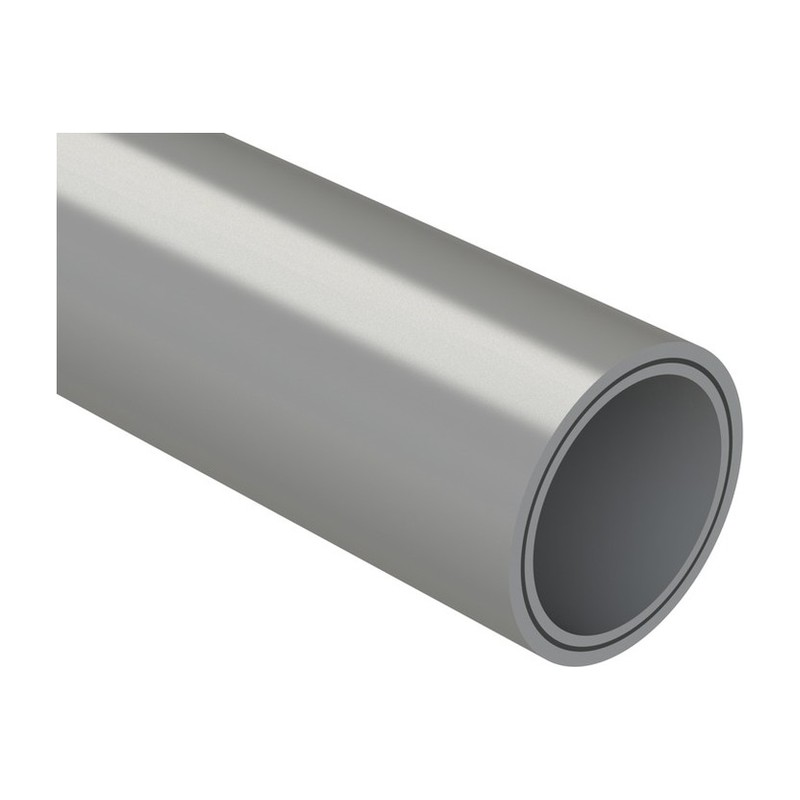

PolyPlumb Polybutylene Barrier Pipe 22mm

Straight lengths of Polyplumb Polybutylene Barrier Pipe 22mm are what you’ll want for the main legs of a plastic heating or water system: boiler flow and return, the incoming main and cylinder feeds. It comes in 1m, 2m and 3m lengths.

What 22mm Polyplumb polybutylene barrier pipe is used for

22mm Polyplumb is the plastic answer to 22mm copper, with no soldering and far fewer joints, as it flexes through joists and round corners. The barrier pipe has an oxygen barrier layer built into the wall, which matters on heating, where oxygen in the water leads to rust and sludge. It suits hot and cold water as well as central heating.

It is not for gas, oil or compressed air, nor for solar heating or the primaries of a solid fuel back boiler.

• 1m length
• 2m length
• 3m length

These are collected from the counter. For long runs we have 22mm coils in 25m and 50m.

Use a proper plastic pipe cutter for a clean, square end. Push a stiffener into the pipe, then push it into the Polyplumb fitting until it bottoms out, and mark the depth so you can see it hasn’t backed off. Before connecting near a boiler, read its installation manual, as some makers ask for copper off the boiler connections before you change to plastic. Clip at closer spacings than copper. Take a look at our Polyplumb pipe range for conduit and coils.

Glasgow trade counter: 22mm plastic pipe

Datasheets

• Polypipe PolyPlumb Enhanced Installation and Testing Guide (PDF)

Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX. Staffed Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Or place the order online.

Specification

• Brand: Polyplumb
• Material: Polybutylene with an oxygen barrier
• Connection: Polyplumb Push Fit fittings, with a pipe stiffener in each cut end
• Sizes: 22mm, in 1m, 2m or 3m lengths
• Suitable for: Boiler flow and return, mains and cylinder feeds

Common Questions

Is 22mm Polyplumb a direct swap for 22mm copper?

It has the same outside size, so it takes 22mm Push Fit fittings. Check the boiler instructions, as some want copper off the boiler first.

How do I check 22mm pipe is fully home?

Mark the insertion depth on the pipe before pushing it in. If the mark meets the fitting, it is in.

Is Polyplumb pipe OK on a solid fuel back boiler?

No. Solid fuel back boiler primaries can run far hotter than a gas system, so use copper there instead.
