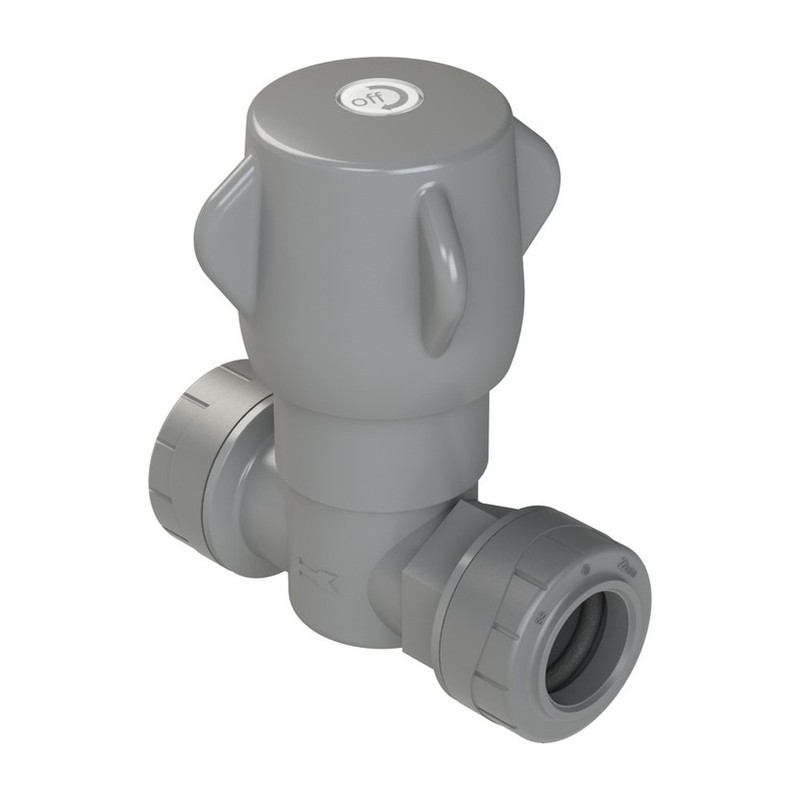

PolyPlumb Stopcock 15mm to 22mm

The Polyplumb Stopcock is a screw down stop valve with Push Fit sockets on each end. It is the valve that shuts off the incoming cold supply to a property, or isolates a large section of pipework.

Fitting a Polyplumb Stopcock

Every home needs a stopcock that works and that people can find. Fit it just inside the building where the main comes in, usually under the kitchen sink. The 15mm size suits most houses and flats, and the 22mm size suits bigger supplies. Because the ends are Push Fit, it goes onto plastic or copper without a blowlamp or spanners.

• Sizes: 15mm and 22mm
• Stop valve with turning head
• Polyplumb Push Fit sockets
• Arrow on the body shows flow direction

Fit it the right way round, with the arrow pointing away from the incoming main. Use stiffeners in plastic pipe. Clip the pipe both sides, because people lean on a stopcock handle. Show the householder where it is and how it works. For gate valves and service valves, look at Polyplumb Fittings.

Stopcocks in Glasgow

Stopcocks like this sit on the racks at Plumb Parts, 555 South Street, Glasgow G14 0QX. The counter opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or you can order online.

Specification

• Brand: Polyplumb
• Range: Polyplumb Push Fit
• Connection: Push Fit sockets each end
• Sizes: 15mm and 22mm
• Suitable for: Shutting off the incoming cold main

Common Questions

What is a stopcock? It’s the valve that shuts off the cold mains water coming into a property. This one is from the PolyPlumb push-fit range.

Which way does a stopcock turn? Turn it clockwise to close and anticlockwise to open.

What size stopcock do I need? Match it to the pipe it’s going on. In most homes that’s 15mm or 22mm.

Can you replace a stopcock yourself? Yes, if you can turn the supply off at the outside stop tap first. If that won’t shut off, or you’re unsure, get a plumber in.

Does the stopcock stop hot water as well? It cuts the cold mains, so a combi boiler stops getting hot water too. A stored hot water cylinder will still have water in it until it’s drained.

Does a stopcock need to be fully open? Normally yes, so you get full flow. Turning it back a touch from fully open can help stop it seizing.

Can I fit a PolyPlumb stopcock onto copper pipe? Yes, PolyPlumb fittings work with copper as well as PolyPlumb plastic pipe.

Datasheets

• Polypipe PolyPlumb Enhanced Installation and Testing Guide (PDF)
