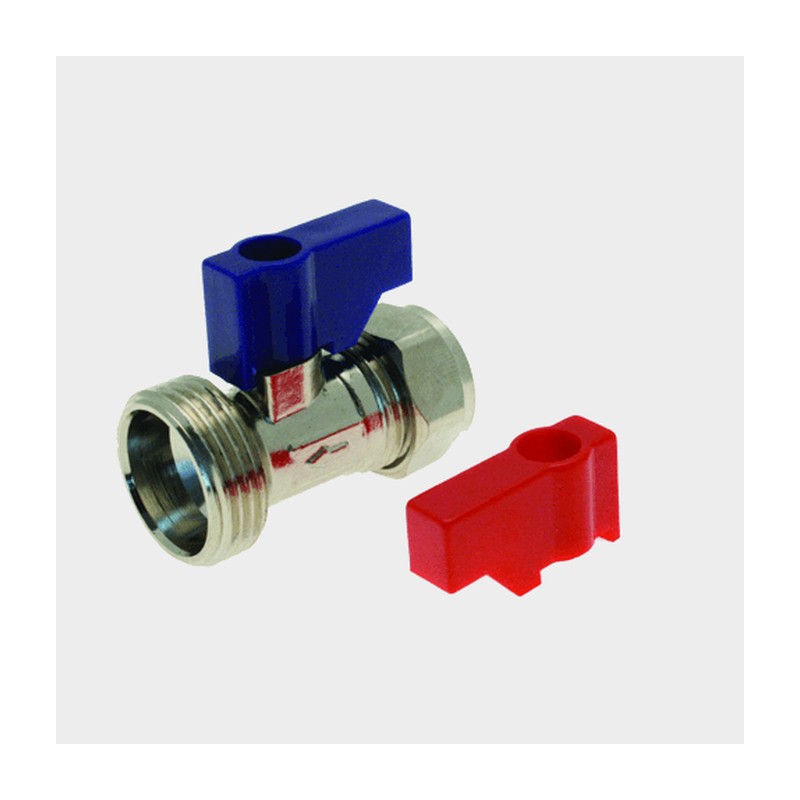

Straight Washing Machine Valve 15mm X 3/4″

A Straight Washing Machine Valve 15mm x 3/4″ takes a 15mm pipe in one end and gives a 3/4″ hose outlet straight out of the other. A quarter turn of the handle isolates the appliance.

Fitting a Straight Washing Machine Valve

The straight pattern suits a pipe that runs along the wall and ends where the machine sits, or a supply rising vertically behind it. In those cases an angled valve would push the hose out awkwardly. It can also feed a dishwasher where the pipe runs straight inside a kitchen unit. One Straight Washing Machine Valve 15mm x 3/4″ per appliance feed is the usual rule.

• Size: 15mm x 3/4″
• Straight, in line pattern
• Lever handle
• For washing machines and dishwashers

Cut the pipe to length, deburr it and make the inlet joint while holding the body still. Leave the lever where it can be reached from the front or through the next unit. Turn it off before moving the machine, and check the hose is not kinked once the machine is pushed back. For the angled version, see our washing machine valves.

Appliance valves at our Glasgow counter

Straight valves are sold at 555 South Street, Glasgow G14 0QX. Plumb Parts opens Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm. Online too.

Specification

• Connection: 15mm pipe end and 3/4″ hose outlet, in line
• Sizes: 15mm x 3/4″
• Suitable for: Dishwasher and washing machine supply isolation

Common Questions

Can I use a straight valve for a dishwasher?

Yes, dishwasher fill hoses use the same 3/4″ connection as washing machines. Fit it where you can reach the lever without pulling the dishwasher out.

How do I fit it to the 15mm pipe?

Cut the pipe square, slip on the nut and olive, push the pipe into the valve and tighten. Hold the valve body with a second spanner so it stays straight.

Which way is the lever off?

Lever across the valve means off, and in line with it means on. Turn it off whenever the machine is moved or the hose is changed.
