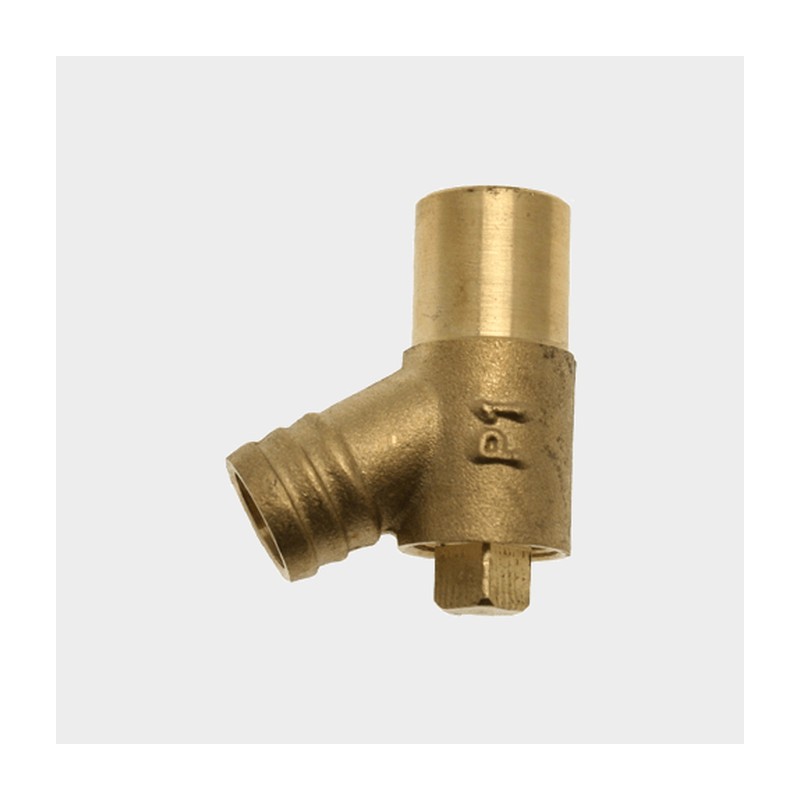

MT Draw Off Cock Type C 15mm

A drain point at the bottom of a circuit saves a lot of mess, and the MT Draw Off Cock Type C provides one on 15mm pipe. It has a hose outlet and a spindle that you open with a drain cock key or spanner, so the system can be emptied into a hose rather than a bucket.

Using the MT Draw Off Cock Type C

Fit it at the lowest point of the heating or water circuit, for example under a radiator drop or at the foot of a pipe run. Once it is in, attach a hose to the outlet, run the hose to a drain and open the spindle a turn or two. Open a bleed point higher up so air can get in and the water flows freely.

When the job is finished, close the spindle snugly but do not force it. Take the hose off and check the outlet stays dry before you refill.

• Size: 15mm
• Hose outlet for draining
• Spindle operated
• For heating and water pipework

Check the pipe end on the product photo or ask at the counter before ordering, so you get the right connection. Type A versions are listed in Valves & Control Devices.

Where to collect it in Glasgow

Plumb Parts, 555 South Street, Glasgow G14 0QX. Opening times: Mon-Fri 8am-5pm, and weekends Sat-Sun 8am-1pm. Online ordering runs all the time.

Specification

• Sizes: 15mm
• Suitable for: a drain point at the low point of heating or water pipework

Common Questions

How do I drain a system through the Type C draw off cock?

Push a hose on the outlet and run it outside or to a drain, open the spindle a turn or two, and open a vent higher up to let air in.

Which pipe connection does Type C have?

Check the product photo or ask at the counter before ordering, so it matches the way you will join it to the 15mm pipe.

How tight should I close it afterwards?

Snug, not forced. Overtightening damages the washer and makes it drip next time.
