XPRESS YORKSHIRE PRESS-FIT COPPER FEMALE BRANCH TEE 15mm to 76.1mm
Price range: £14.09 through £225.90 inc VAT ( Price range: £11.74 through £188.25 ex VAT)

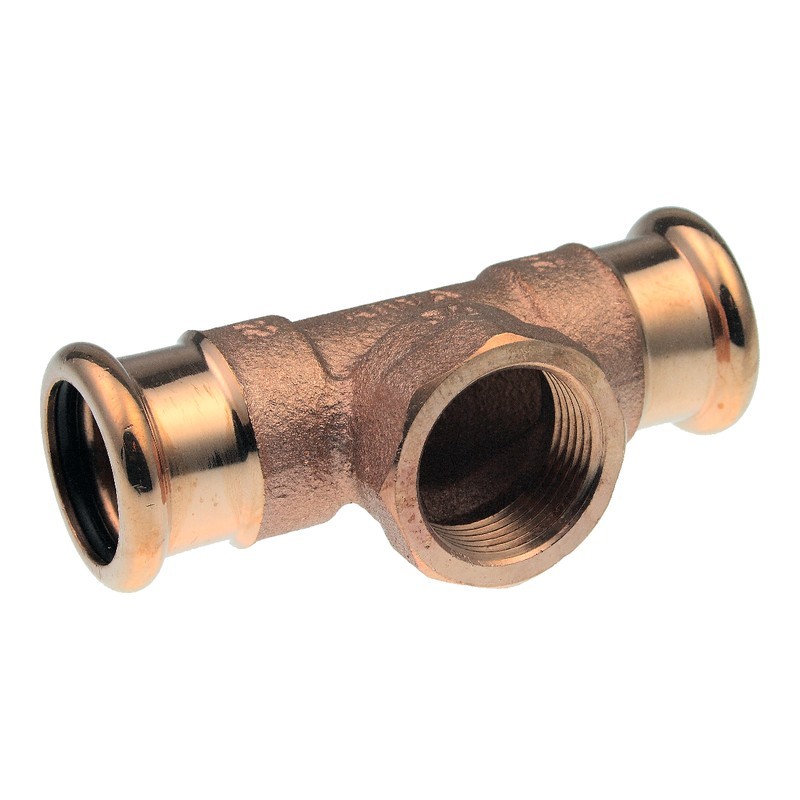

The Xpress Yorkshire Press-Fit Copper Female Branch Tee has press run ends and a female threaded branch, from 15mm x 15mm x 1/2 inch to 76.1mm x 76.1mm x 1/2 inch. It suits gauges and vents. Sold at Plumb Parts, Glasgow.
| SKU | Thumbnail | SIZE | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYT1515D |
|
15mm x 15mm x 1/2" | £14.09 inc VAT (£11.74 ex VAT) |
-
+
|
£14.09 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT2222D |
|
22mm x 22mm x 1/2" | £20.90 inc VAT (£17.42 ex VAT) |
-
+
|
£20.90 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT2222E |
|
22mm x 22mm x 3/4" | £28.75 inc VAT (£23.96 ex VAT) |
-
+
|
£28.75 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT2828D |
|
28mm x 28mm x 1/2" | £32.33 inc VAT (£26.94 ex VAT) |
-
+
|
£32.33 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT2828E |
|
28mm x 28mm x 3/4" | £34.37 inc VAT (£28.64 ex VAT) |
-
+
|
£34.37 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT3535D |
|
35mm x 35mm x 1/2" | £36.58 inc VAT (£30.48 ex VAT) |
-
+
|
£36.58 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT4242D |
|
42mm x 42mm x 1/2" | £43.85 inc VAT (£36.54 ex VAT) |
-
+
|
£43.85 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT5454D |
|
54mm x 54mm x 1/2" | £54.59 inc VAT (£45.49 ex VAT) |
-
+
|
£54.59 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYT7676D |
|
76.1mm x 76.1mm x 1/2" | £225.90 inc VAT (£188.25 ex VAT) |
-
+
|
£225.90 inc VAT ({price_excluding_tax} ex VAT) |
The Xpress Yorkshire Press-Fit Copper Female Branch Tee has Press-Fit ends on the run and a female BSP threaded branch in the middle. It lets you take a threaded connection straight off a copper pipe without an extra adaptor.
What it’s used for
Gauges, thermometers, sensor pockets, air vents and drain cocks all screw into a tee like this. It is also handy for a threaded test point on a commercial run. On larger pipe sizes with a 1/2″ branch, it does the job of a boss without any welding or brazing.
This tee belongs to the Xpress copper system used on heating, hot and cold water and chilled water. For gas work, there’s a separate gas version with yellow marking.
Sizes available
- 1/2″ branch: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm and 76.1mm runs
- 3/4″ branch: 22mm and 28mm runs
Fitting tips
If you can, fit the threaded item into the branch first, so you aren’t straining the pressed joints when you tighten it. Use PTFE or a suitable sealant on the male thread going in. Cut and deburr the tube, mark the depth, and line the branch up before pressing.
Equal tees and reduced tees are in our Xpress copper Press-Fit range.
Branch tees at Plumb Parts Glasgow
Call in at the Plumb Parts trade counter on 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Copper
- Maker code: S30
- Material: Copper (Cu-DHP)
- Connection: Press Fit with EPDM seal on the run, female BSP thread on the branch
- Sizes: 15mm x 15mm x 1/2″, 22mm x 22mm x 1/2″, 22mm x 22mm x 3/4″, 28mm x 28mm x 1/2″, 28mm x 28mm x 3/4″, 35mm x 35mm x 1/2″, 42mm x 42mm x 1/2″, 54mm x 54mm x 1/2″ and 76.1mm x 76.1mm x 1/2″
- Standard or approval: EN 1254-7 press fittings, BSI certificate KM 789225 (water fittings)
- Max pressure: 16 bar
- Suitable for: Hot and cold water, heating and chilled water on hard and half-hard copper tube; not gas
Common Questions
What can go into the 1/2 inch branch?
A gauge, thermometer pocket, sensor, air vent or drain cock with a 1/2″ male thread. The 22mm and 28mm tees also come with a 3/4″ branch.
Is there a 76.1mm female branch tee?
Yes, the listing includes 76.1mm x 76.1mm x 1/2″. That gives a threaded tapping on a large main with no brazing.
Which press jaw do I use?
Use the jaw for the run size on a tool approved for Xpress. The branch is threaded, so it is not pressed.
| SIZE |
15mm x 15mm x 1/2" ,22mm x 22mm x 1/2" ,22mm x 22mm x 3/4" ,28mm x 28mm x 1/2" ,28mm x 28mm x 3/4" ,35mm x 35mm x 1/2" ,42mm x 42mm x 1/2" ,54mm x 54mm x 1/2" ,76.1mm x 76.1mm x 1/2" |
|---|
