Banico Gas Interlock System GM-4, ISP-3 and GM-4CS
Price range: £191.40 through £271.69 inc VAT ( Price range: £159.50 through £226.41 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Banico Gas Minder gas interlock systems GM-4, ISP-3 and GM-4CS, so gas only flows when the kitchen extract fan is running. Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
| SKU | Thumbnail | Model | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| GM-4 |
|
GM-4 Control Unit | £191.40 inc VAT (£159.50 ex VAT) |
-
+
|
£191.40 inc VAT ({price_excluding_tax} ex VAT) | ||
| ISP-3 |
|
ISP-3 System Pack | £214.50 inc VAT (£178.75 ex VAT) |
-
+
|
£214.50 inc VAT ({price_excluding_tax} ex VAT) | ||
| GM-4CS |
|
GM-4CS with Fan Current Sensors | £271.69 inc VAT (£226.41 ex VAT) |
-
+
|
£271.69 inc VAT ({price_excluding_tax} ex VAT) |
Banico Gas Minder interlock systems stop gas reaching the burners in a commercial kitchen unless the extract fan is running, which BS 6173 and the Gas Safe rules call for. The panel watches the extraction and switches a 230V gas solenoid valve, and its stop button cuts the gas straight away in an emergency. Choose the GM-4 control unit on its own, the ISP-3 pack with everything except the valve, or the GM-4CS with fan sensing built in.

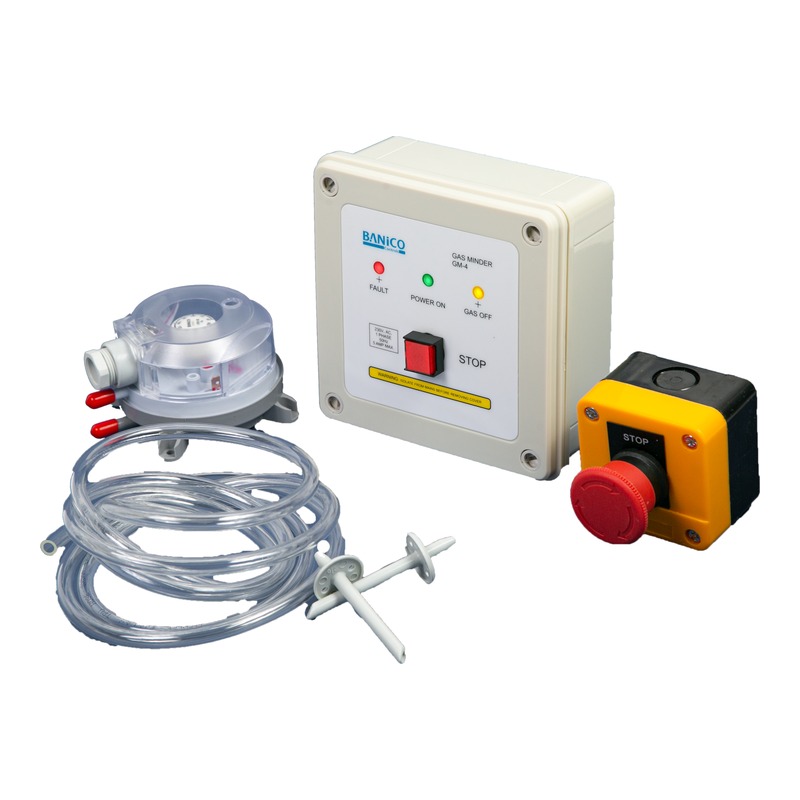

The GM-4 proves the fan with an air pressure switch or fan current sensor. The ISP-3 pack adds the DPSA-20 differential pressure switch, DK-1 duct kit with tube and connectors, and the EM-1 remote emergency stop button. The GM-4CS has two fan current sensors inside the box, so it interlocks up to two fans without a pressure switch. Each needs a 230V Banico ZEV gas solenoid valve, sold separately in our gas interlock section. Fitting must be done by a Gas Safe registered engineer with the electrical work to current wiring regulations.
Specification
- Brand: Banico Gas Minder
- Models: GM-4 control unit, ISP-3 system pack, GM-4CS with fan current sensors
- GM-4: IP56 control box, 14 x 14 x 6 cm
- ISP-3 pack contents: GM-4 control unit, DPSA-20 pressure switch, DK-1 duct kit, EM-1 remote emergency stop button
- GM-4CS: GM-4 with dual CS-2 fan current sensor built in, 16 x 24 x 6 cm
- Supply: 230V AC 50Hz single phase
- Valve: For use with 230V AC Banico ZEV gas solenoid valves (not included)
- Standard: Meets BS 6173:2020 for commercial kitchens
Common Questions
Is a gas solenoid valve included? No. Every model needs a 230V gas solenoid valve sized to the gas pipe, and we stock the Banico ZEV valves from 1/4 inch to 3 inch.
Which model should I buy? The ISP-3 pack is the complete kit for a canopy with an air pressure switch. Pick the GM-4CS where you would rather sense the fan current, or the GM-4 alone if you already have the switch and stop button.
Does a commercial kitchen need an interlock? Yes. BS 6173 requires the gas to burners to be interlocked with the mechanical extraction in a commercial kitchen.
Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Free delivery on orders over £250, or collect free from our Glasgow counter.
| Model |
GM-4 Control Unit ,ISP-3 System Pack ,GM-4CS with Fan Current Sensors |
|---|
