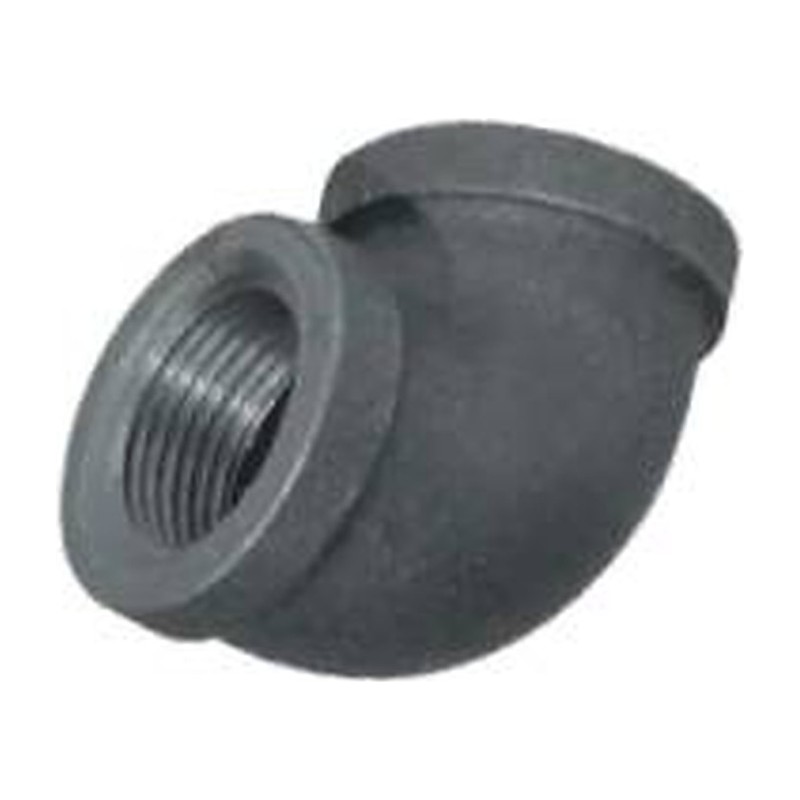

Black Malleable Iron 90 Deg Elbow F x F 1/4 inch to 4 inch

Black Malleable Iron 90 Deg Elbow F x F

Black Malleable Iron 90 deg Elbow F x F used to connect two male threaded fittings at 90 deg.

At Plumb Parts in Glasgow, we stock a wide range of Black and Galvanised Malleable Iron Pipe Fittings.

Due to their durability, corrosion resistance and mechanical strength these fittings are ideal when compared to grey cast iron and mild steel.

Black Malleable attachments are solidly made for long-lasting durability and dependability. Black Malleable Iron fire and corrosion-resistant properties make them especially useful for natural gas or hot water heating systems or plumbing applications making these fitting ideal to use in Schools, Nursing Homes, Hospitals, Warehouses, and Industrial Spaces.

Malleable iron pipe fittings are available in black and galvanised finishes with the majority of fittings having the BSI Kitemark approval and conforming to BS EN 10242 and have UL approval.

 Our stock of malleable iron fittings is of the Blackheart type which is ideally suited to pipe fittings and manufacturing processes which conforms to BS EN 1562.

Malleable Fittings Features & Benefits

Offer taper to taper threaded joints ensuring uniform stressing of threads due to full engagement between male and female threads, thus avoiding localised stress.

Made from ‘blackheart’ MI, ensuring even distribution of carbon content.

Specially tested fittings for high pressures above 25 bar

Have a full clear bore.

Threads with precise axial alignment ensure high sealing forces and pipelining

Have a high factor of safety over the working pressure.

Fields of Application:

Sanitary, heating and gas installation

Cooling and air conditioning

Sprinkler and gas fire extinguishing systems

HVAC

Steam

General non-aggressive media

Construction of industrial plants (e.g. gas, emulsion, and pressured air pipework)

Machine construction (e.g. oil, cooling, and lubrication pipes)

Construction of petrol stations (gas lines)

Commercial and domestic vehicles construction

 Variations

 At Plumb Parts in Glasgow we keep a variety of Black and Galvanised Fittings including;

  Black Iron 45 deg Elbow F x F

 Black Iron 45 deg Elbow M x F

Black Iron 90 deg Elbow F x F

 Black Iron 90 deg Elbow M x F

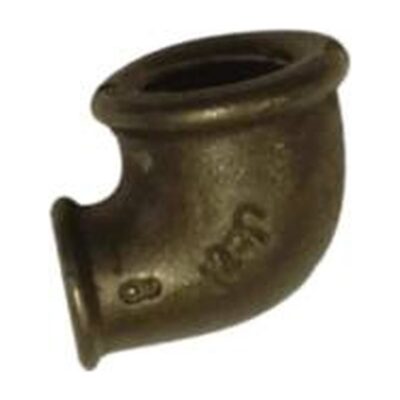

Black Iron 90 deg Reducing Elbow F x F

Black Iron 90 deg Bend F x F

Black Iron 90 deg Bend M x F

Black Iron Back Nut

Black Iron Elbow Union M x F

Black Iron Elbow Union F x F

Black Iron Flanged Plug

Black Iron Plain Plug

Black Iron Hexagon Bush M x F

Black Iron Hexagon Cap

Black Iron Nipple M x M

Black Iron Reducing Nipple M x M

Black Iron Socket F x F

Black Iron Reducing Socket M x F

Black Iron Equal Tee

Black Iron Reducing Tee

Black Iron Straight Union M x F

Black Iron Straight Union F x F

Galvanised Iron 45 deg Elbow F x F

 Galvanised Iron 45 deg Elbow M x F

Galvanised Iron 90 deg Elbow F x F

 Galvanised Iron 90 deg Elbow M x F

Galvanised Iron 90 deg Reducing Elbow F x F

Galvanised Iron 90 deg Bend F x F

Galvanised Iron 90 deg Bend M x F

Galvanised Iron Back Nut

Galvanised Iron Elbow Union M x F

Galvanised Iron Elbow Union F x F

Galvanised Iron Flanged Plug

Galvanised Iron Plain Plug

Galvanised Iron Hexagon Bush M x F

Galvanised Iron Hexagon Cap

Galvanised Iron Nipple M x M

Galvanised Iron Reducing Nipple M x M

Galvanised Iron Socket F x F

Galvanised Iron Reducing Socket M x F

Galvanised Iron Equal Tee

Galvanised Iron Reducing Tee

Galvanised Iron Straight Union M x F

Galvanised Iron Straight Union F x F

Specification

• Material: Black malleable iron
• Connection: Female BSP thread on both ends
• Sizes: 1/4″ to 4″
• Suitable for: Tight 90 degree turns on screwed steel pipework

Common Questions

Can I use a black iron F x F elbow on water pipework? It’s suited to heating systems and other closed pipework, but it isn’t the usual choice for drinking water. For mains or potable water, copper or plastic is the normal route.

Can I use this black iron elbow on natural gas? Yes, black malleable iron is a common choice for natural gas pipework and these fittings are made for gas installation. The job must be done by a Gas Safe registered engineer.

Can black iron fittings like this elbow be used outside? The black finish will rust if it’s left exposed to the weather. For outdoor runs, go for the galvanised version of the same elbow.

Can I paint black iron fittings? Yes, once they’re clean and grease free you can paint them, which also helps keep rust away. A metal primer first gives the topcoat a better grip.

Can I use this black iron elbow on compressed air? Yes, compressed air lines are one of the jobs malleable iron fittings are made for, alongside heating, gas and steam.

What thread does a black iron elbow have? The fittings use tapered threads, so the male and female threads pull up tight against each other along their full length.
