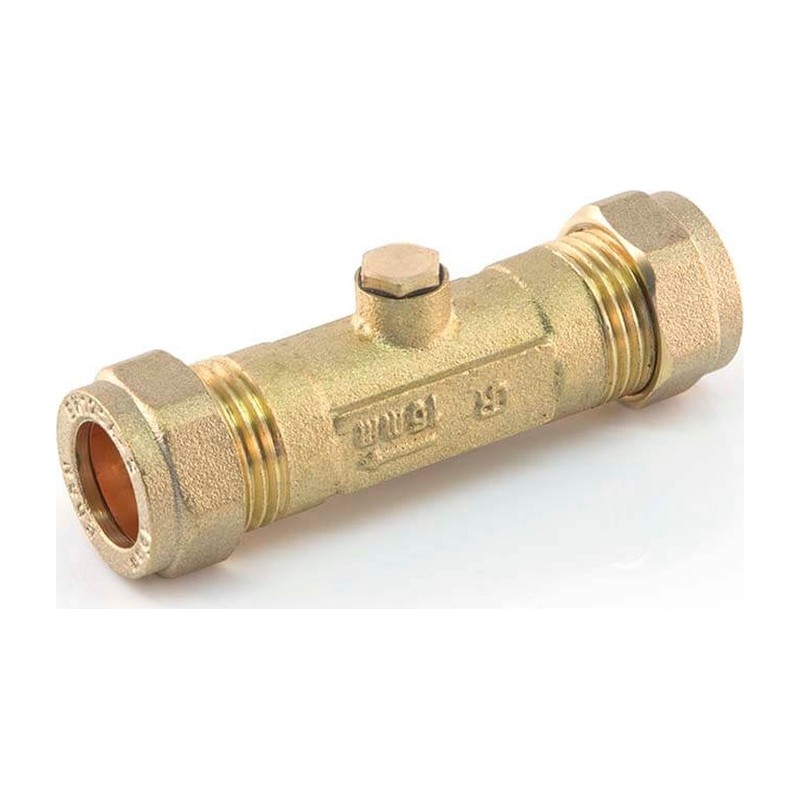

Chrome and DZR Double Check Valve 15mm to 28mm

Compression double check valves in 15mm chrome (WRAS) and 15mm, 22mm and 28mm DZR brass. Chrome for show, DZR for hidden or buried pipe.

A check valve lets water go one way only. Fit it with the arrow on the body pointing the way the water flows, and leave it where it can be got at for checking.

Specification

• Type: Double check valve
• Material: Chrome plated or DZR brass
• Connection: compression both ends
• Sizes: 15mm Chrome WRAS, 15mm DZR Body, 28mm DZR Body, 22mm DZR Body
• Codes: 15mm Chrome WRAS DCVC15, 15mm DZR Body DCVDZ15, 28mm DZR Body DCVDZ28, 22mm DZR Body DCVDZ22
• Approval: WRAS listed where shown in the size list

Common Questions

Which way round does a check valve go?
The arrow cast on the body points the direction of flow. Fitted backwards, it will stop the water altogether.

Single or double check valve?
A double check valve has two non return valves in one body and is the usual fit on outside taps, hose points and other higher risk supplies under the water regulations. A single check valve is for lower risk points. Ask at the counter if you are not sure which you need.

What does DZR mean?
DZR is dezincification resistant brass. It stands up to aggressive water that can eat ordinary brass, so it is the safer pick for buried or hidden pipework and hard to reach spots.
