Compression Chrome Plated Coupler 8mm to 54mm

Compression Chrome Plated Coupler

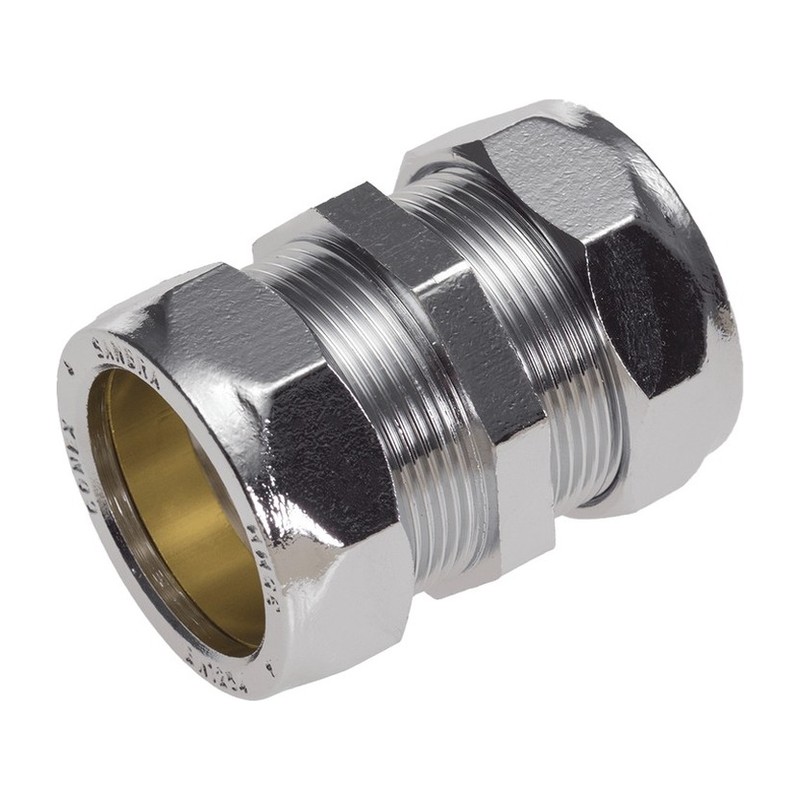

Compression Chrome Plated Coupler used to connect two copper pipes or tubes of equal diameter.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: straight, nut and olive at both ends
• Sizes: 8mm to 54mm
• Suitable for: joining two pipes of the same size on exposed runs

Common Questions

Which coupler size do I need?

Match it to the outside size of the pipe. The 8mm and 10mm suit microbore heating, 15mm covers radiator and tap feeds, 22mm the main runs, and 28mm to 54mm bigger supplies.

Can it join chrome pipe to plain copper?

Yes, the outside sizes are the same, so one end can take chrome and the other bare copper. That is handy where the visible part of a run is chrome and the hidden part is not.

Should I use jointing paste on the olive?

It is not needed for the seal, as the olive does the work. Some fitters wipe a little on the olive to help it bed in, but wipe off any excess so it does not mark the chrome.
