Compression Chrome Plated Male Elbow 15mm to 28mm

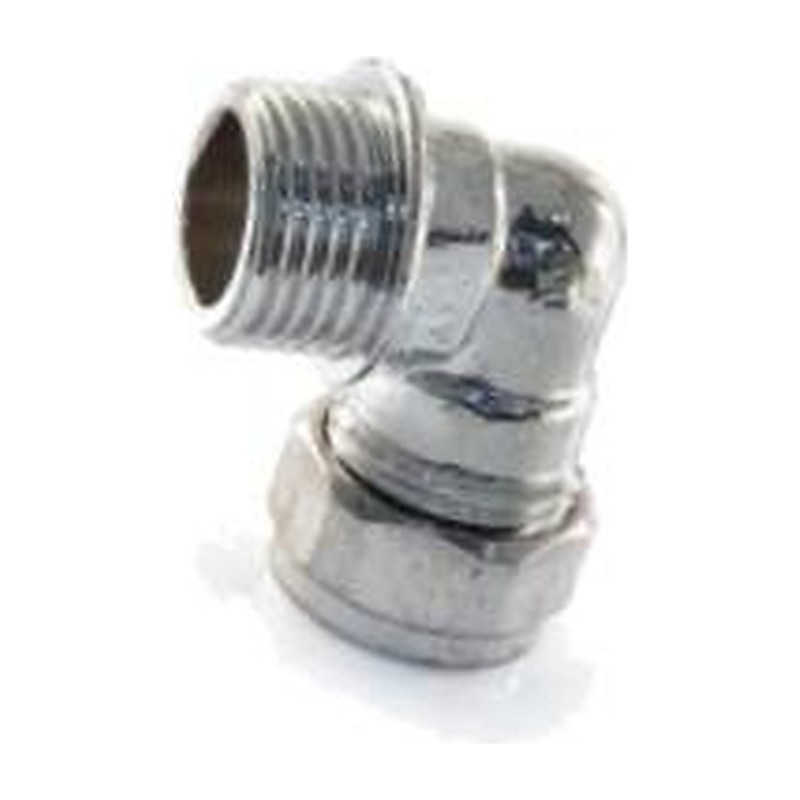

Compression Chrome Plated Male Elbow

Compression Chrome Plated Male Elbow used to connect pipework to an appliance or fitting that has a female thread at 90 deg.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: elbowed, male thread x Compression
• Sizes: 15mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1.1/4″
• Suitable for: leaving a female threaded port at a right angle on visible pipe

Common Questions

What is a compression chrome plated male elbow? It’s a 90 degree fitting with a compression end for the pipe and a male BSP thread on the other. It lets you turn a corner and connect to threaded equipment in one fitting.

What should I use to seal the BSP thread on this elbow? PTFE tape with thread compound over it gives a reliable seal. Wind the tape clockwise as you look at the end of the male thread, so it doesn’t unwind when you screw it in.

Can I use this compression elbow on plastic pipe? Yes, it suits copper pipe, or plastic pipe as long as you fit a pipe insert in the end. It comes in 15mm x 1/2 inch, 22mm x 3/4 inch and 28mm x 1 inch.

Can I reposition the elbow once it’s fitted? You get a little bit of adjustment before the final tightening. If it needs a big turn, take it apart and remake the thread with fresh sealant.

How tight should the threaded end be? Screw it in by hand until it starts to stiffen, then give it a turn or two more with a spanner. Going much further can damage the thread.

What is the chrome male elbow made from? It’s chrome plated CZ121 brass with a working pressure of 20 bar.
