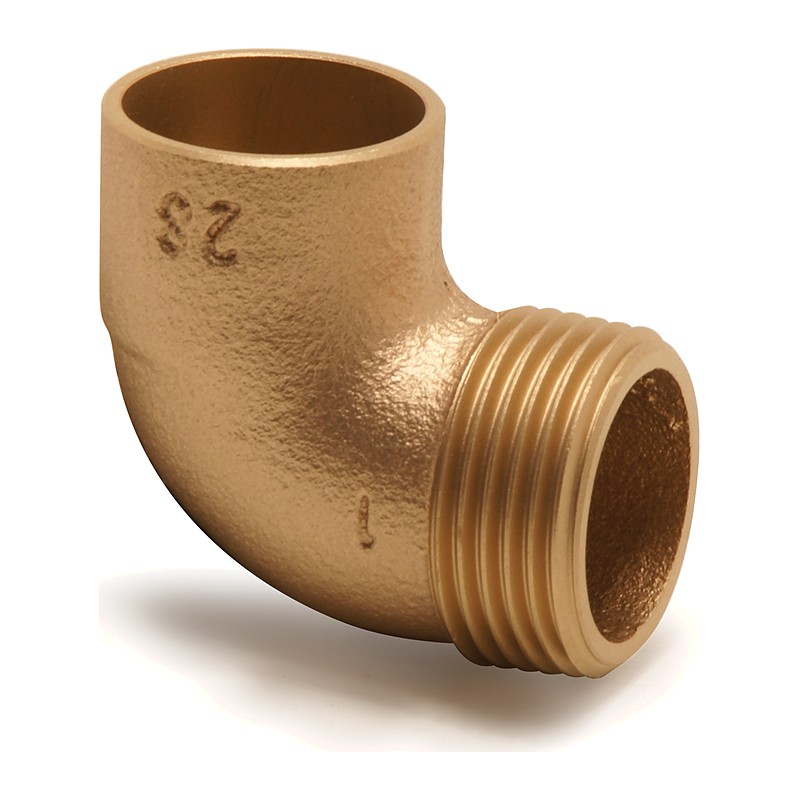

End Feed Male Elbow 15mm to 54mm
Price range: £0.98 through £42.00 inc VAT ( Price range: £0.82 through £35.00 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
End Feed Male Elbows solder onto copper and turn it 90 degrees into a male thread. Sizes 15mm x 1/2″ to 54mm x 2″, for valves and appliance inlets. Ask at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFME15D |
|
15mmx1/2" | £0.98 inc VAT (£0.82 ex VAT) |
-
+
|
£0.98 inc VAT | ||
| EFME22E |
|
22mmx3/4" | £5.59 inc VAT (£4.66 ex VAT) |
-
+
|
£5.59 inc VAT | ||
| EFME28F |
|
28mmx1" | £5.99 inc VAT (£4.99 ex VAT) |
-
+
|
£5.99 inc VAT | ||
| EFME35G |
|
35mmx1.1/4" | £23.99 inc VAT (£19.99 ex VAT) |
-
+
|
£23.99 inc VAT | ||
| EFME42H |
|
42mmx1.1/2" | £29.99 inc VAT (£24.99 ex VAT) |
-
+
|
£29.99 inc VAT | ||
| EFME54I |
|
54mmx2" | £42.00 inc VAT (£35.00 ex VAT) |
-
+
|
£42.00 inc VAT |
End Feed Male Elbows take copper pipe in a soldered socket and turn it through 90 degrees to finish in a male thread, so the pipe can screw directly into a female socket, for example a valve, a tank boss or an appliance inlet.
End Feed Male Elbows by size
The pipe size comes first in each code. On domestic jobs, 15mm x 1/2″ is the usual pick. 22mm x 3/4″ and 28mm x 1″ suit larger valves and connections. The 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″ sizes are for commercial work and plant rooms.
A useful tip: screw the elbow into the female socket first, sealed with PTFE or compound, and get it pointing the right way. Then solder the pipe. If you must solder first, wait until it is cool before sealing the thread, because heat ruins thread sealant.
- 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″
- 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
- 90 degree elbow
- End Feed socket, male threaded end
Female elbows and couplers are in End Feed fittings.
Male elbows at the Glasgow counter
Plumb Parts, 555 South Street, Glasgow G14 0QX is open Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm. Order online if that suits.
Specification
- Connection: End Feed socket x male thread, 90 degrees
- Sizes: 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
- Suitable for: screwing a copper pipe into a female socket at a right angle
Common Questions
End Feed male elbow: thread first or solder first?
Thread first if you can, sealed and pointing the right way, then solder the pipe with the heat kept back from the thread.
Where is the 15mm x 1/2″ used?
On domestic valves, tank bosses and appliance inlets with a 1/2″ female thread.
Can heat damage the thread seal?
Yes. If the thread is already sealed, wrap it with a wet cloth and keep the flame on the socket.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Sizes |
15mmx1/2" ,22mmx3/4" ,28mmx1" ,35mmx1.1/4" ,42mmx1.1/2" ,54mmx2" |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products
End Feed Female Coupler 8mm to 54mm
Price range: £0.50 through £21.41 inc VAT ( Price range: £0.42 through £17.84 ex VAT)

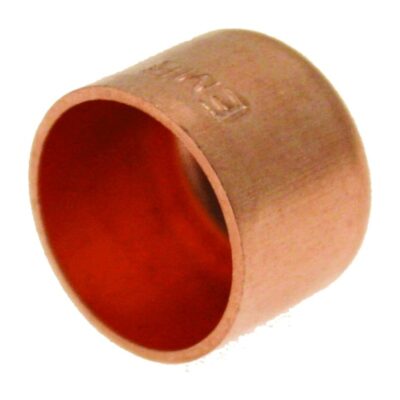

End Feed Stop End 8mm to 159mm
