End Feed 45 Degree Street Elbow 10mm to 108mm
Price range: £0.44 through £176.48 inc VAT ( Price range: £0.37 through £147.07 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

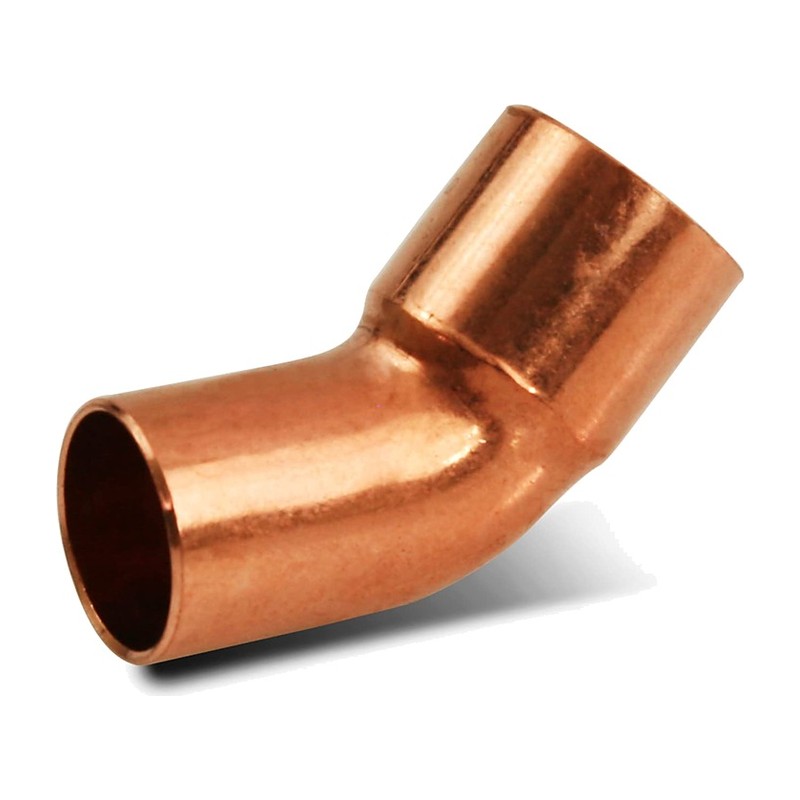

The End Feed 45 Degree Street Elbow pairs a pipe socket with a plain spigot that plugs straight into another fitting. Sizes 10mm to 108mm, from Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFFOSTE10 |
|
10mm | £1.18 inc VAT (£0.98 ex VAT) |
-
+
|
£1.18 inc VAT | ||
| EFFOSTE15 |
|
15mm | £0.44 inc VAT (£0.37 ex VAT) |
-
+
|
£0.44 inc VAT | ||
| EFFOSTE22 |
|
22mm | £1.20 inc VAT (£1.00 ex VAT) |
-
+
|
£1.20 inc VAT | ||
| EFFOSTE28 |
|
28mm | £3.47 inc VAT (£2.89 ex VAT) |
-
+
|
£3.47 inc VAT | ||
| EFFOSTE35 |
|
35mm | £4.19 inc VAT (£3.49 ex VAT) |
-
+
|
£4.19 inc VAT | ||
| EFFOSTE42 |
|
42mm | £8.40 inc VAT (£7.00 ex VAT) |
-
+
|
£8.40 inc VAT | ||
| EFFOSTE54 |
|
54mm | £14.74 inc VAT (£12.28 ex VAT) |
-
+
|
£14.74 inc VAT | ||
| EFFOSTE67 |
|
67mm | £43.12 inc VAT (£35.93 ex VAT) |
-
+
|
£43.12 inc VAT | ||
| EFFOSTE76 |
|
76mm | £62.99 inc VAT (£52.49 ex VAT) |
-
+
|
£62.99 inc VAT | ||
| EFFOSTE108 |
|
108mm | £176.48 inc VAT (£147.07 ex VAT) |
-
+
|
£176.48 inc VAT |
Where two fittings need to sit tight together with a slight offset, the End Feed 45 Degree Street Elbow saves a short length of pipe. One end is a normal capillary socket for the pipe. The other end is a spigot, the same outside size as the pipe, which pushes into the socket of the next fitting.
Fitting an End Feed 45 Degree Street Elbow
End Feed fittings have no solder inside, so you feed solder wire into the joint as you heat it. Clean and flux both the spigot and the socket it goes into. Heat the fitting, then touch the solder to the mouth of each joint until it runs right round.
The 45 degree angle is good for gentle offsets, for example dodging a joist, a valve or another pipe. Small sizes suit house heating and water, and 54mm up to 108mm suit plant rooms and commercial runs.
- Sizes: 10mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm and 108mm
- 45 degree bend
- One socket end and one spigot end
- Solder fed by hand, End Feed style
See the other bends in our End Feed fittings range.
Glasgow pick-up
Collect from Plumb Parts at 555 South Street, Glasgow G14 0QX. The hours are Mon to Fri 8am to 5pm, Sat and Sun 8am to 1pm, and the website takes orders too.
Specification
- Material: copper
- Connection: End Feed socket x spigot, 45 degrees
- Sizes: 10mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm, 108mm
- Suitable for: gentle offsets where one fitting pushes straight into another
Common Questions
What is a street elbow?
It is an elbow where one end is a socket and the other is a pipe sized spigot. That spigot plugs directly into the neighbouring fitting, so no short offcut of pipe is needed.
45 degree street elbow: what solder should I use?
On drinking water pipework use solder that contains no lead, as the water regulations require. Heating pipework is often done with the same solder to keep things simple.
Can I solder both joints in one go?
Yes, if you can get heat to both and feed solder to each mouth. Otherwise do one, let it set, and wrap it in a damp cloth while you do the next.
