End Feed Part Crossover 15mm to 22mm
Price range: £0.94 through £2.96 inc VAT ( Price range: £0.78 through £2.47 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Where two copper runs meet, the End Feed Part Crossover kinks one pipe up and over the other. Sizes 15mm x 15mm and 22mm x 22mm, sold by Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFPCO15 |
|
15mm x 15mm | £0.94 inc VAT (£0.78 ex VAT) |
-
+
|
£0.94 inc VAT | ||
| EFPCO22 |
|
22mm x 22mm | £2.96 inc VAT (£2.47 ex VAT) |
-
+
|
£2.96 inc VAT |

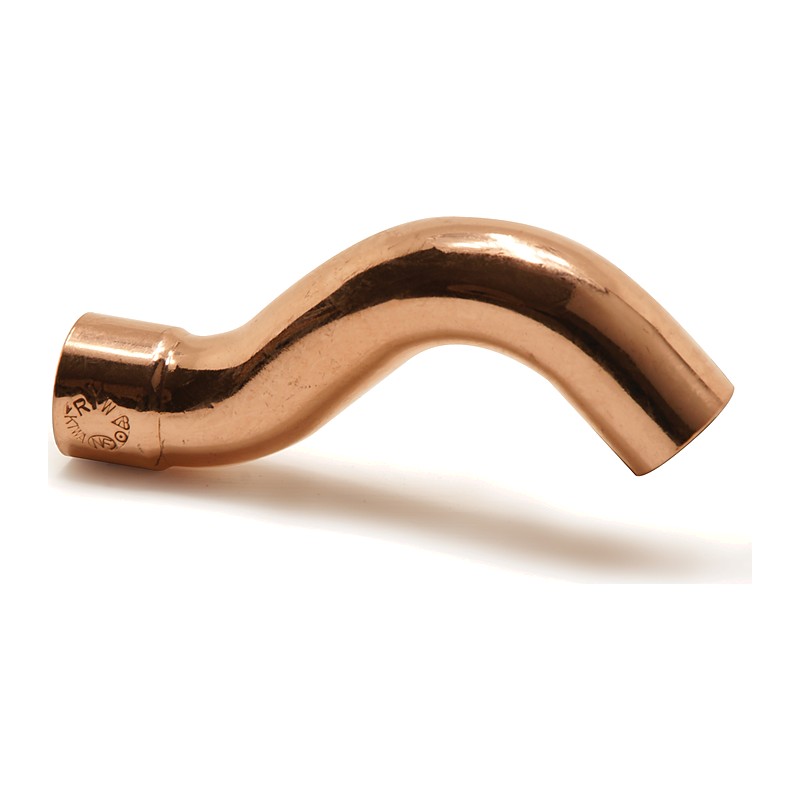

Where two pipe runs cross on the same level, the End Feed Part Crossover lifts one of them over the other. It has a cranked hump in the middle, so the pipe kinks up, passes over the other run and comes back down in line.
Using the End Feed Part Crossover
This is a common fitting on heating and hot and cold runs under floors, where flow and return pipes cross in a joist space. It is also handy on surface pipework, because it lets the pipes stay flat to the wall rather than packing one out on clips.
It is an End Feed fitting, so the solder is not built in. Clean and flux the pipe ends and the sockets, heat each joint and feed in wire solder until it runs round. A part crossover is normally socket by spigot, so its spigot end slides into another fitting. Check which way the hump faces before soldering.
- Sizes: 15mm x 15mm and 22mm x 22mm
- Cranked shape to clear a crossing pipe
- Copper, End Feed joints
- For heating and water pipework
15mm suits radiator and tap pipework. 22mm suits main heating and cold runs. More shapes sit in our End Feed fittings range.
Getting one from Plumb Parts in Glasgow
Plumb Parts is on 555 South Street, Glasgow G14 0QX. Hours are Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm, and orders can go through online.
Specification
- Material: copper
- Connection: End Feed socket x spigot, cranked
- Sizes: 15mm x 15mm, 22mm x 22mm
- Suitable for: lifting one pipe over another where runs cross
Common Questions
End Feed part crossover: what does part mean?
One end is normally a spigot instead of a socket, so that end can plug straight into the next fitting.
Where are part crossovers used most?
Under floors and along skirting where flow and return pipes cross a cold feed, so all pipes can stay flat.
Which way does the hump go?
Toward the pipe being crossed. Check before soldering, as it cannot be turned round afterwards.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Size |
15mm x 15mm ,22mm x 22mm |
|---|
