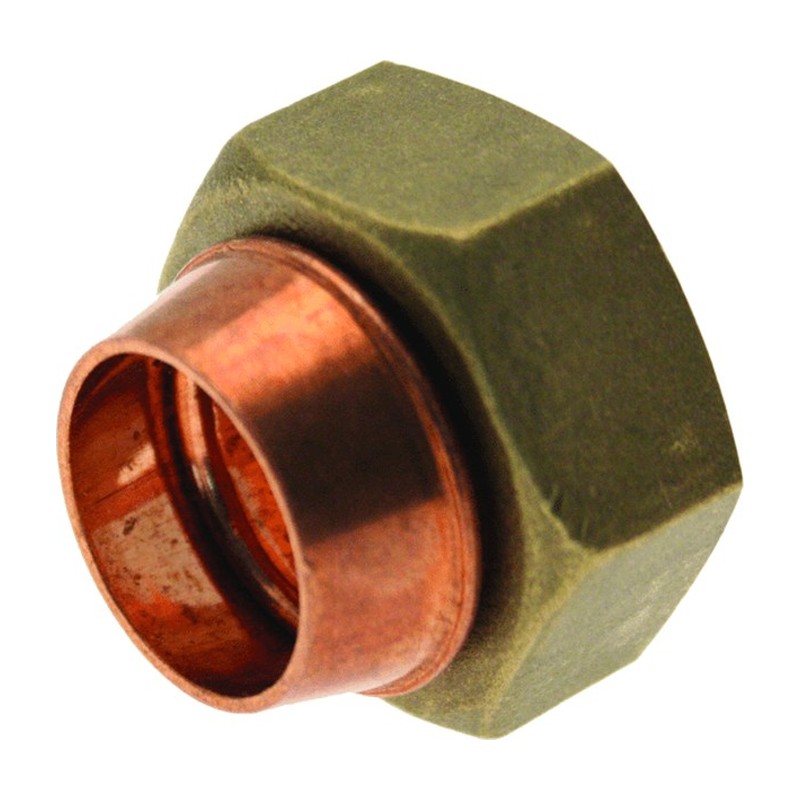

End Feed Straight Cylinder Union 22mm to 28mm
Price range: £2.27 through £2.46 inc VAT ( Price range: £1.89 through £2.05 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The End Feed Straight Cylinder Union connects copper pipe in a straight line to a cylinder boss, with a union for easy removal. Comes in 22mm x 1″ or 28mm x 1″ at Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFFSU22X1 |
|
22mm x 1" | £2.27 inc VAT (£1.89 ex VAT) |
-
+
|
£2.27 inc VAT | ||
| EFFSU28X1 |
|
28mm x 1" | £2.46 inc VAT (£2.05 ex VAT) |
-
+
|
£2.46 inc VAT |
For a straight connection into a hot water cylinder, use the End Feed Straight Cylinder Union. One part screws into the cylinder boss, a union nut joins the two halves, and the copper pipe solders into the other end.
Fitting an End Feed Straight Cylinder Union
Seal the thread with PTFE or a jointing compound and screw it into the 1 inch boss. Solder the pipe into its half away from the cylinder where you can, because heat can harm the cylinder lagging. Then pull the halves together with the union nut.
The union is the useful part. When the cylinder needs changing, you undo the nut and the pipe comes away without cutting. 22mm x 1″ is the usual size for domestic cylinder flow and return connections. 28mm x 1″ suits larger cylinders and higher flow systems.
- Sizes: 22mm x 1″ and 28mm x 1″
- Straight pattern
- Union nut for easy disconnection
- End Feed socket for copper pipe
If the pipe needs to turn at the cylinder, see the bent pattern in our End Feed fittings range.
Cylinder unions in Glasgow
Call at Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm, or order online.
Specification
- Connection: male thread with union nut x End Feed socket, straight
- Sizes: 22mm x 1″, 28mm x 1″
- Suitable for: straight copper connections into the 1″ bosses of a hot water cylinder
Common Questions
Straight cylinder union: which size for a house cylinder?
22mm x 1″ is usual for domestic cylinder flow and return. The 28mm x 1″ suits larger cylinders or higher flow.
How does the union help later?
Undo the union nut and the pipe comes away, so the cylinder can be changed without cutting pipework.
Do I seal the thread into the boss?
Yes, with PTFE tape or a jointing compound, before the pipe half is joined on.
