End Feed 90 Degree Street Elbow 10mm to 108mm
Price range: £0.56 through £127.72 inc VAT ( Price range: £0.47 through £106.43 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

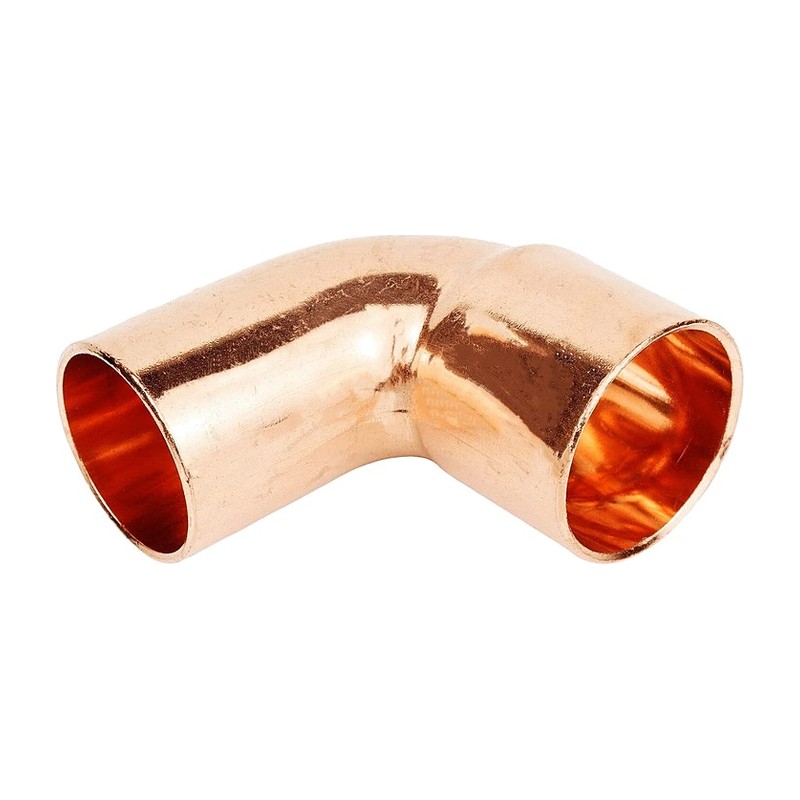

The End Feed 90 Degree Street Elbow turns copper pipe through a right angle with a spigot end that fits into another fitting. Sizes 10mm to 108mm, available at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFFSTE10 |
|
10mm | £0.76 inc VAT (£0.63 ex VAT) |
-
+
|
£0.76 inc VAT | ||
| EFFSTE15 |
|
15mm | £0.56 inc VAT (£0.47 ex VAT) |
-
+
|
£0.56 inc VAT | ||
| EFFSTE22 |
|
22mm | £1.14 inc VAT (£0.95 ex VAT) |
-
+
|
£1.14 inc VAT | ||
| EFFSTE28 |
|
28mm | £2.12 inc VAT (£1.77 ex VAT) |
-
+
|
£2.12 inc VAT | ||
| EFFSTE35 |
|
35mm | £2.81 inc VAT (£2.34 ex VAT) |
-
+
|
£2.81 inc VAT | ||
| EFFSTE42 |
|
42mm | £5.21 inc VAT (£4.34 ex VAT) |
-
+
|
£5.21 inc VAT | ||
| EFFSTE54 |
|
54mm | £8.15 inc VAT (£6.79 ex VAT) |
-
+
|
£8.15 inc VAT | ||
| EFFSTE67 |
|
67mm | £36.53 inc VAT (£30.44 ex VAT) |
-
+
|
£36.53 inc VAT | ||
| EFFSTE76 |
|
76mm | £49.09 inc VAT (£40.91 ex VAT) |
-
+
|
£49.09 inc VAT | ||
| EFFSTE108 |
|
108mm | £127.72 inc VAT (£106.43 ex VAT) |
-
+
|
£127.72 inc VAT |
In tight corners, the End Feed 90 Degree Street Elbow lets you go straight from one fitting into a bend with no pipe in between. Its pipe end is a solder socket, and its other end is a plain spigot which slides into the socket of a tee, valve or another elbow.
Why use an End Feed 90 Degree Street Elbow
A street elbow tightens up a layout. For example, under a boiler or behind a cylinder, it lets the pipe turn hard off a tee with almost no gap. It also saves cutting a tiny piece of pipe, which can be awkward to clean and solder.
Clean and flux the spigot, the socket it goes into and the pipe end. Heat evenly, feed in solder wire until it runs round each joint, and leave to cool.
- Sizes: 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm and 108mm
- 90 degree bend
- Socket at one end, spigot at the other
- End Feed, so solder is added by hand
For bigger runs, sizes above 54mm are used on plant room and commercial pipework. Find more in the End Feed fittings range.
Our Glasgow counter
You can collect at 555 South Street, Glasgow G14 0QX. Plumb Parts opens Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm. Online ordering works too.
Specification
- Material: copper
- Connection: End Feed socket x spigot, 90 degrees
- Sizes: 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm, 108mm
- Suitable for: tight right angle turns straight off a tee, valve or other fitting
Common Questions
Why use a 90 degree street elbow instead of an ordinary one?
No fiddly stub of pipe to cut, clean and solder. The turn butts right up to the tee or valve it plugs into.
Does the spigot need cleaning and fluxing too?
Yes. Treat the spigot exactly like a pipe end: clean it bright, flux it, and push it fully into the socket.
Are the big sizes soldered the same way?
Yes, but sizes from 54mm up hold a lot of heat. Use a larger torch or two, and heat the whole fitting evenly before feeding solder.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Sizes |
108mm ,10mm ,12mm ,15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,67mm ,76mm |
|---|
