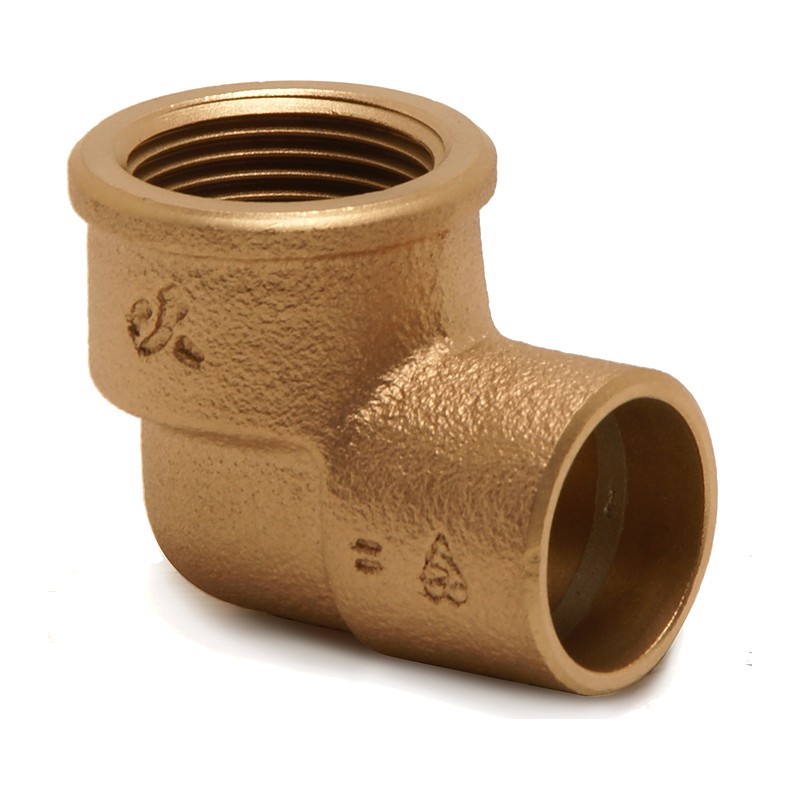

Professional Plumbing Solutions | Solder Ring Female Elbow

Discover our precision-engineered Solder Ring Female Elbow, crafted for professional plumbing installations requiring right-angle connections to male threaded components. These high-performance fittings exceed British Standard EN 1254 requirements, ensuring reliability across all plumbing applications.

Engineering Specifications

• Material Composition: Premium-grade DZR copper alloy
• Thread Configuration: British Standard Pipe (BSP) female thread
• Joint Technology: Integrated pre-soldered capillary system
• Metallurgical Properties: Lead-free solder formulation
• Operating Parameters: -20°C to +110°C continuous service
• System Integration: Up to 16 bar pressure rating
• Compliance: WRAS approved materials

Dimensional Specifications Professional connection options:

• Domestic: 15mm x 1/2″ BSP
• Commercial: 22mm x 3/4″ BSP
• Industrial: 28mm x 1″ BSP

Professional Installation Protocol Ensuring optimal joint integrity:

1. Surface Preparation: Mechanical cleaning with appropriate grade steel wool
2. Chemical Treatment: Application of specified flux compound
3. Component Assembly: Full insertion to depth marker
4. Thermal Process: Controlled heat application until solder flow visible
5. Joint Formation: Natural cooling cycle for optimal metallurgical bond
6. Quality Verification: Pressure testing to system specifications

Application Engineering Designed for integration with:

• High-efficiency boiler systems
• Professional heating installations
• Commercial water services
• Industrial process equipment
• Temperature control systems
• Pressure regulation units
• Flow control assemblies

Performance Standards

• British Standards Certification
• ISO 9001 Manufacturing
• Quality Management System
• Material Traceability Protocol
• Performance Testing Verification
• Extended Warranty Coverage

Technical Support Services Plumb Parts 555 South Street Glasgow, G14 0QX

Operational Hours Monday-Friday: 8am-5pm Saturday-Sunday: 8am-1pm

Professional Consultation Technical Support: 0141 404 5128 Engineering Queries: info@plumbparts.co.uk

Available for immediate collection or nationwide delivery. Expert technical consultation and installation guidance provided by our certified plumbing professionals
