Solder Ring Stop End 8mm to 54mm
Price range: £0.74 through £9.10 inc VAT ( Price range: £0.62 through £7.58 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Solder Ring Stop End caps the end of a copper pipe with a soldered joint. We stock 8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm and 54mm. Sold at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| SRSTOP8 |
|
8mm | £0.74 inc VAT (£0.62 ex VAT) |
-
+
|
£0.74 inc VAT | ||
| SRSTOP10 |
|
10mm | £0.86 inc VAT (£0.72 ex VAT) |
-
+
|
£0.86 inc VAT | ||
| SRSTOP12 |
|
12mm | £1.19 inc VAT (£0.99 ex VAT) |
-
+
|
£1.19 inc VAT | ||
| SRSTOP15 |
|
15mm | £0.86 inc VAT (£0.72 ex VAT) |
-
+
|
£0.86 inc VAT | ||
| SRSTOP22 |
|
22mm | £1.64 inc VAT (£1.37 ex VAT) |
-
+
|
£1.64 inc VAT | ||
| SRSTOP28 |
|
28mm | £2.22 inc VAT (£1.85 ex VAT) |
-
+
|
£2.22 inc VAT | ||
| SRSTOP35 |
|
35mm | £3.46 inc VAT (£2.88 ex VAT) |
-
+
|
£3.46 inc VAT | ||
| SRSTOP42 |
|
42mm | £5.76 inc VAT (£4.80 ex VAT) |
-
+
|
£5.76 inc VAT | ||
| SRSTOP54 |
|
54mm | £9.10 inc VAT (£7.58 ex VAT) |
-
+
|
£9.10 inc VAT |

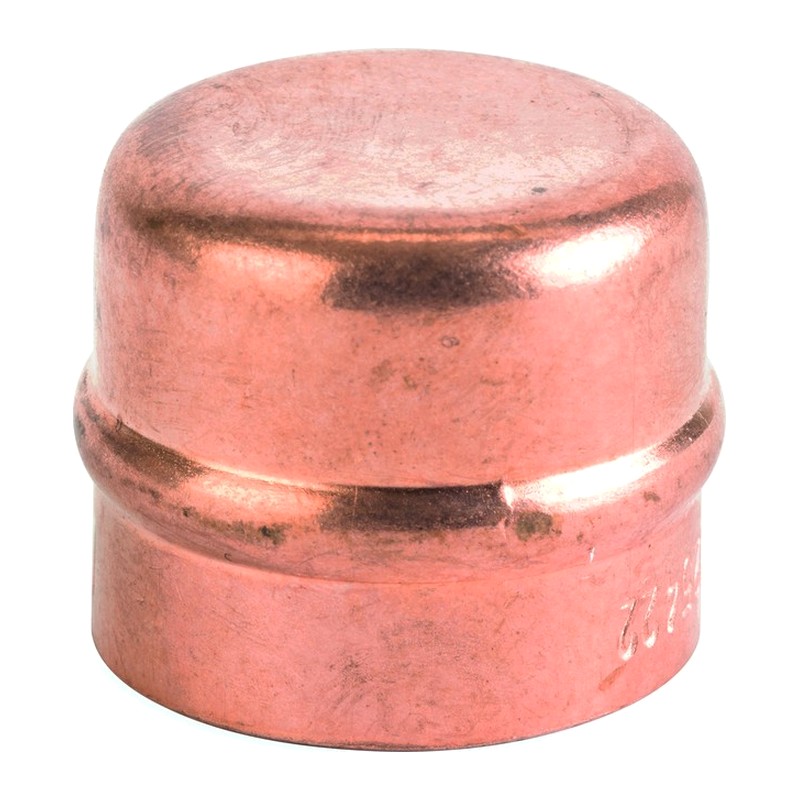

A Solder Ring Stop End seals the open end of a copper pipe permanently, and we stock it in nine sizes from 8mm to 54mm. It is a copper cap with its own solder ring.
Where it goes
Use it to cap a dead leg when a radiator, basin or appliance comes out, or to blank off a branch for later.
Sizes available
- 8mm for microbore heating.
- 10mm for microbore and small feeds.
- 12mm for older microbore and some appliance pipework.
- 15mm for small bore water and heating.
- 22mm for main runs in a house.
- 28mm for larger flows and primaries.
- 35mm for commercial runs.
- 42mm for plant room pipework.
- 54mm for large mains.
Fitting tips
Drain the pipe fully, as any water left in it will stop the solder flowing. Cut it square, clean and flux the end and the inside of the cap, push it home and heat until a full ring of solder appears. Once cool, refill and check for weeps.
Solder ring fittings from our Glasgow counter
See our solder ring fittings for couplers, bends and tees. Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
Specification
- Material: Copper
- Connection: Solder ring
- Sizes: 8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
- Suitable for: Capping copper pipe on water and heating systems
Common Questions
What is a stop end? It is a fitting that caps off the end of a pipe so nothing can flow out. This one is copper and is used to seal off water, oil or gas lines.
Do I need to add solder to a solder ring stop end? No, the solder is already built into the fitting. You just clean, flux and heat it.
How do I make the joint? Clean the pipe and inside the fitting with wire wool, add flux and push it on. Heat until you see a ring of solder all the way round the edge, then leave it to cool without throwing water on it.
Is the solder lead free? Yes, the fittings are made with lead free solder.
Can it be used underground? It is listed for above ground use, on hot or cold domestic and commercial systems.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Sizes |
10mm ,12mm ,15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,8mm |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

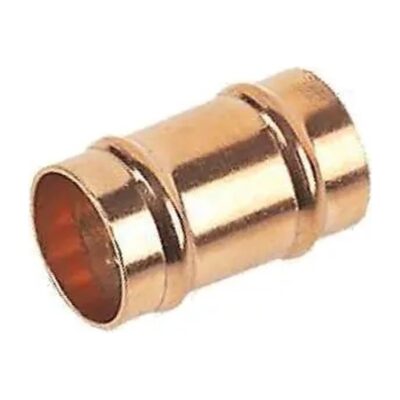

Solder Ring Coupler 8mm to 67mm
