Solder Ring Imperial x Metric Coupler 15mm to 35mm
Price range: £1.40 through £8.89 inc VAT ( Price range: £1.17 through £7.41 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Solder Ring Imperial/Metric Coupler joins old imperial copper to new metric pipe, in 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″ and 35mm x 1.1/4″. Common on older houses. From Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| SRIMC15D |
|
15mm x 1/2" | £1.40 inc VAT (£1.17 ex VAT) |
-
+
|
£1.40 inc VAT | ||
| SRIMC22E |
|
22mm x 3/4" | £2.92 inc VAT (£2.43 ex VAT) |
-
+
|
£2.92 inc VAT | ||
| SRIMC28F |
|
28mm x 1" | £4.88 inc VAT (£4.07 ex VAT) |
-
+
|
£4.88 inc VAT | ||
| SRIMC35G |
|
35mm x 1.1/4" | £8.89 inc VAT (£7.41 ex VAT) |
-
+
|
£8.89 inc VAT |

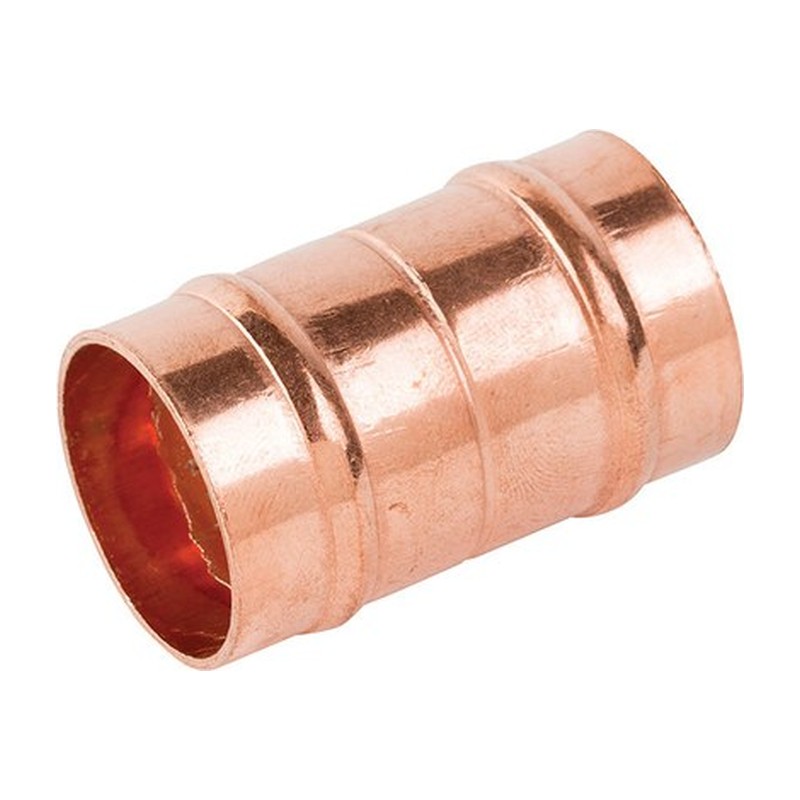

The Solder Ring Imperial/Metric Coupler connects old imperial sized copper to modern metric copper. Each end is sized to suit its pipe, with a Solder Ring in both sockets.
Why you need a Solder Ring Imperial/Metric Coupler
Before metric sizes came in, copper pipe was measured in inches. Some of those sizes are close to metric but not the same. For example, 3/4″ imperial copper is slightly bigger than 22mm, so a normal 22mm fitting will not go on. Older tenements and houses often still have runs of imperial pipe, especially in lofts and under floors, and this coupler bridges the gap.
- 15mm x 1/2″
- 22mm x 3/4″
- 28mm x 1″ and 35mm x 1.1/4″
- Solder Ring at each end
Measure the old pipe with a gauge or callipers before ordering, because painted or worn pipe can be confusing. Clean the old pipe very well, as it often has years of tarnish on it. Flux, assemble and heat until the solder shows at both mouths. Find matching parts in our Solder Ring Fittings.
Imperial fittings in Glasgow
You can get it from Plumb Parts at 555 South Street, Glasgow G14 0QX. We open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Online orders are welcome.
Specification
- Connection: Solder Ring at each end, one metric and one imperial
- Sizes: 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″ and 35mm x 1.1/4″
- Suitable for: Joining modern metric copper to old imperial copper tube
Common Questions
How do I tell if my old pipe is imperial?
Measure the outside with a vernier or calliper. Old imperial pipe is a fraction bigger than the matching metric size, so a 15mm fitting may be tight or not fit at all.
Can I just use a normal 22mm fitting on 3/4″ pipe?
The sizes are very close but not the same, and that small gap can spoil a soldered joint. An imperial to metric coupler takes the guesswork away.
Which end goes on which pipe?
The fitting is marked or visibly larger on the imperial end. Dry fit both pipes first so you know each end is a snug push-on fit before soldering.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
