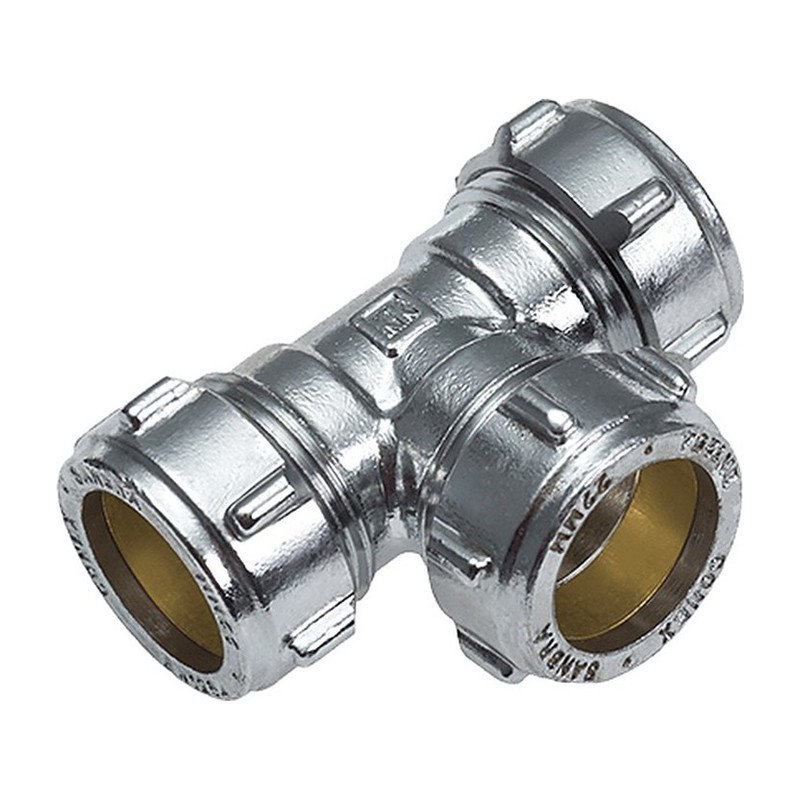

Compression Chrome Plated Equal Tee 12mm to 54mm

Compression Chrome Plated Equal Tee

Compression Chrome Plated Equal Tee used to connect three pipes or tubes of equal diameter.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: three Compression ends with the branch at 90 degrees
• Sizes: 12mm to 54mm
• Suitable for: taking a same size branch off visible pipe

Common Questions

In what order should I tighten the three nuts?

Push all three pipes in to their stops, then nip each nut up a little at a time, going round the tee. That keeps it square instead of pulling it off line.

Can a chrome tee go on a heating run beside a radiator?

Yes, a Compression tee is commonly used on heating flow and return pipes. Fit it where the nuts can be reached later in case one needs a tweak.

Can the tee be taken apart later?

It can, which is one of the good points of Compression. If a joint is opened, a new olive gives the best chance of a dry joint when it goes back together.
