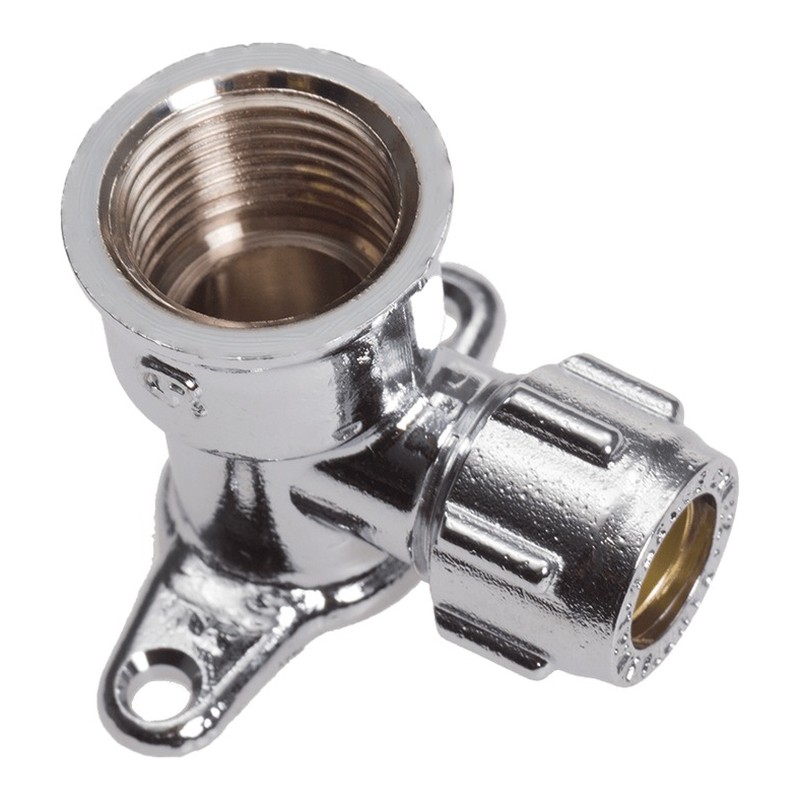

Compression Chrome Plated Female Wallplate Elbow 15mm to 22mm

Compression Chrome Plated Female Wallplate Elbow

Compression Chrome Plated Female Wallplate Elbow used to connect pipework to an appliance or fitting with a male thread at 90 deg.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

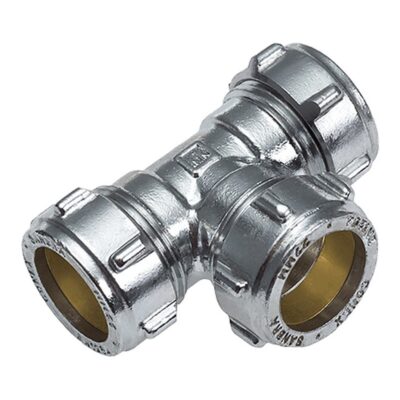

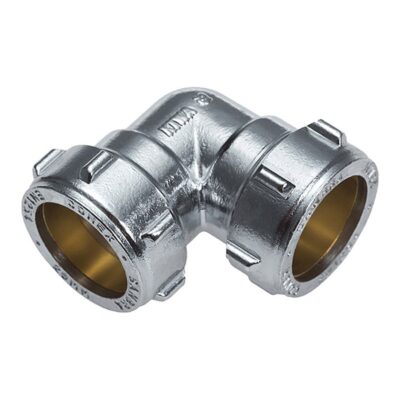

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: wall plate elbow, Compression inlet x female threaded outlet
• Sizes: 15mm x 1/2″, 22mm x 3/4″
• Suitable for: fixing a tap, valve or shower outlet firmly to the wall

Common Questions

What should the wall plate be fixed to?

Something solid. On masonry use plugs and screws, and on a stud wall fit a timber noggin behind it so the plate cannot work loose when the tap is used.

Can it go through tiles?

Yes, drill the tile with a tile bit and fix through into the wall or noggin behind. Seal round it so splashes cannot get into the wall.

15mm x 1/2″ or 22mm x 3/4″: which do I want?

Most taps and shower outlets fed in 15mm pipe use the 1/2″ size. The 22mm x 3/4″ suits bigger outlets on a larger supply.
