Compression Chrome Plated Male Coupler 15mm to 54mm

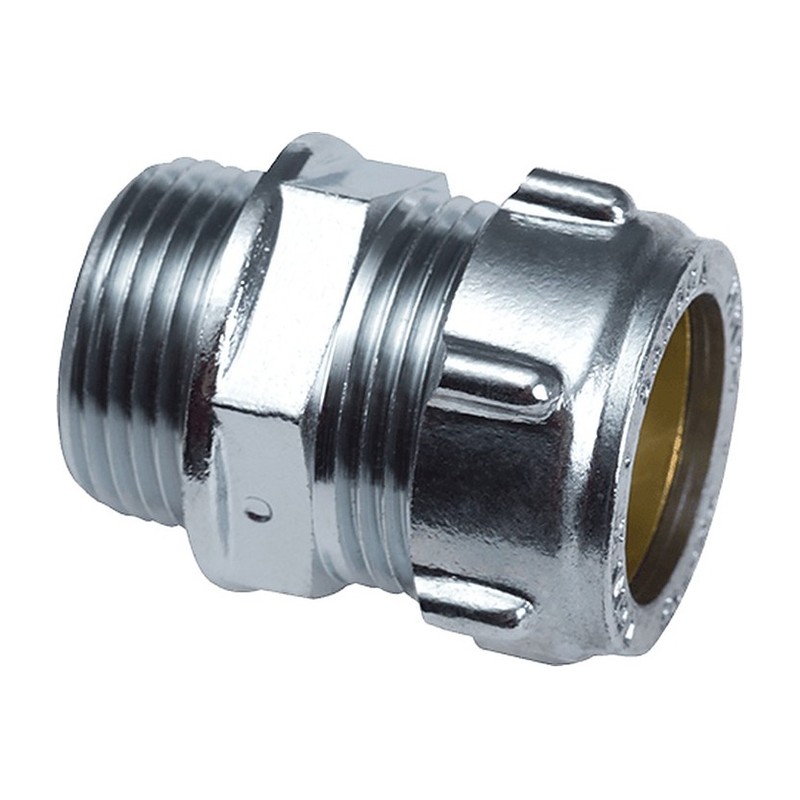

Compression Chrome Plated Male Coupler

Compression Chrome Plated Male Coupler used to connect pipework to an appliance or fitting that has a female thread.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: male thread x Compression, straight
• Sizes: 15mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
• Suitable for: running exposed pipe straight into a female threaded port

Common Questions

How much PTFE tape goes on the thread?

Enough to fill the thread without bunching, wound the same way the coupler screws in. Bigger threads need a few more turns than small ones.

What is the 15mm x 3/8″ size used for?

Smaller female ports, such as some valves, filters and controls, where a 3/8″ thread is fitted but the pipe is 15mm.

Where do I put the spanner?

On the hexagon of the body when you screw the thread in, not on the Compression nut. Then hold the body steady while you tighten the nut onto the pipe.
