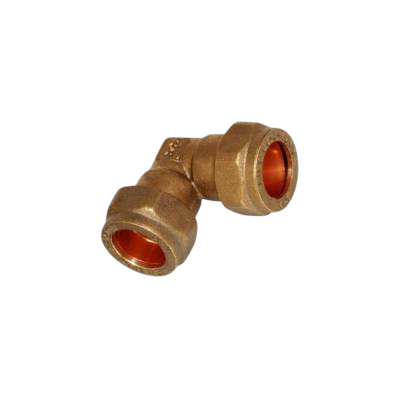

Compression DZR 90 Degree Elbow 15mm to 54mm

Price range: £3.10 through £46.69 inc VAT ( Price range: £2.58 through £38.91 ex VAT)



✓ In Stock

Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns

Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.



The Compression DZR 90 Degree Elbow turns copper pipe through a right angle without heat, in 15mm to 54mm plus a 22mm x 15mm reducer. Pick one up at Plumb Parts in Glasgow.

SKUThumbnail Size PriceQuantityTotal
CPE9015DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 15mm 15mm £3.10 inc VAT (£2.58 ex VAT)
-
+
£3.10 inc VAT
✓
spinner
CPE9022DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 22mm 22mm £5.63 inc VAT (£4.69 ex VAT)
-
+
£5.63 inc VAT
✓
spinner
Compression DZR 90 Degree Elbow 15mm to 54mm - 22mm x 15mm reducer 22mm x 15mm reducer £8.04 inc VAT (£6.70 ex VAT)
-
+
£8.04 inc VAT
✓
spinner
CPE9028DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 28mm 28mm £9.19 inc VAT (£7.66 ex VAT)
-
+
£9.19 inc VAT
✓
spinner
CPE9035DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 35mm 35mm £15.84 inc VAT (£13.20 ex VAT)
-
+
£15.84 inc VAT
✓
spinner
CPE9042DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 42mm 42mm £34.55 inc VAT (£28.79 ex VAT)
-
+
£34.55 inc VAT
✓
spinner
CPE9054DZR Compression DZR 90 Degree Elbow 15mm to 54mm - 54mm 54mm £46.69 inc VAT (£38.91 ex VAT)
-
+
£46.69 inc VAT
✓
spinner
Description

For turning a corner in copper without heat, the Compression DZR 90 Degree Elbow does it in one fitting, with a Compression nut and olive on each end. It is made from DZR brass, which stands up to dezincification better than plain brass.

What it is used for

Changes of direction on hot and cold supplies, heating pipework and around obstructions where a pipe bender cannot get in. Bending is still the neater option on open runs, but under floors, behind units and in tight boxing an elbow is far quicker. There is also a 22mm x 15mm reducing elbow, which turns and reduces at the same time.

Sizes available

  • 15mm and 22mm for everyday domestic work
  • 28mm for larger domestic supplies and heating
  • 35mm, 42mm and 54mm for commercial jobs
  • 22mm x 15mm reducing for a turn and a size change in one fitting

Glasgow counter fitting tips

Measure to the centre of the elbow and allow for the tube going fully into each socket. Get the pipe ends clean and round, as a squashed end from a hacksaw cut will not seal. Tighten each nut while holding the elbow body with a second spanner so it stays square to the run.

Straight couplers, tees and the Compression DZR 90 Degree Elbow are all in our Compression DZR fittings range.

Elbows are available online or over the counter at Plumb Parts, 555 South Street, Glasgow G14 0QX. Opening hours are Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.

Specification

  • Material: DZR brass
  • Connection: 90 degree, Compression both ends
  • Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, plus 22mm x 15mm reducing
  • Suitable for: changes of direction on copper water and heating pipework

Common Questions

DZR elbow or a pipe bend: which is better?

A machine bend has no joints, so on open runs it is neater. Where you cannot get a bender in, such as under floors or behind units, an elbow is quicker.

What is the 22mm x 15mm reducer option?

That one is a reducing elbow. It turns the corner and steps 22mm copper down to 15mm at once, so no separate reducer is needed.

Can the elbow be used on heating pipework?

Yes. Compression elbows are used on heating flow and return as well as hot and cold water. Keep the nuts where they can be got at later.

Additional information
Size15mm, 22mm, 22mm x 15mm reducer, 28mm, 35mm, 42mm, 54mm
