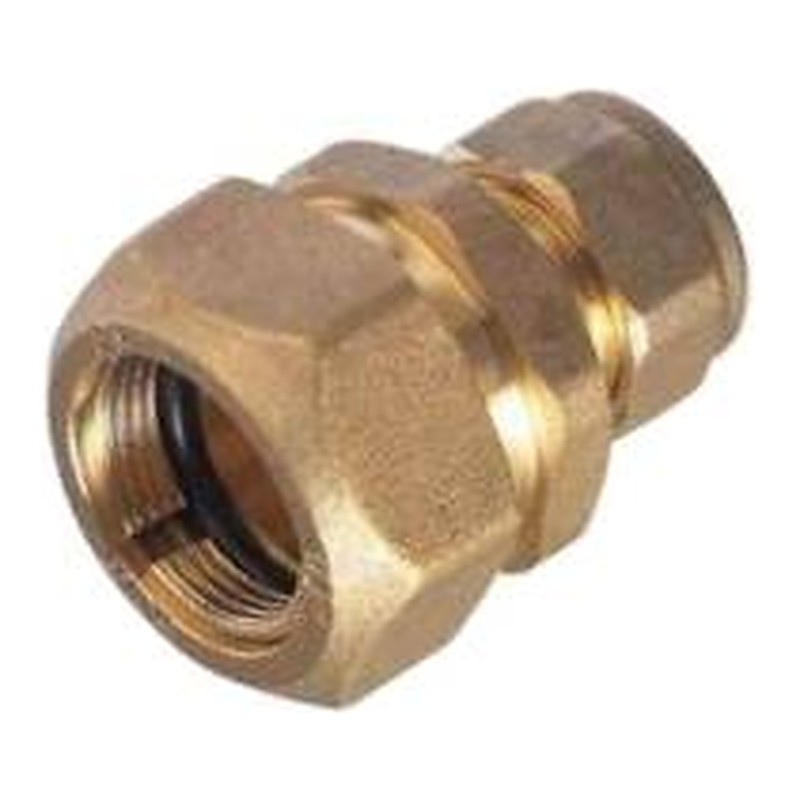

Compression Lead Coupler to Copper / Plastic 15mm to 22mm

The Compression Lead Coupler connects old lead pipe to new copper or plastic, in sizes from 3/8″ x 15mm 5LB up to 3/4″ x 22mm 9LB.

Where it goes

Lead pipe is sold by its nominal bore and by its weight class, 5LB, 6LB, 7LB or 9LB, which is the weight of a yard of pipe. A heavier pipe of the same bore has a thicker wall and a bigger outside size, so a 1/2″ 6LB and a 1/2″ 7LB need different couplers. The other end takes 15mm or 22mm pipe.

Sizes available

• 3/8″ x 15mm 5LB for light 3/8 inch lead to 15mm
• 1/2″ x 15mm 6LB for 1/2 inch 6LB lead to 15mm
• 1/2″ x 15mm 7LB for 1/2 inch 7LB lead to 15mm
• 3/4″ x 22mm 9LB for 3/4 inch 9LB lead to 22mm

Fitting tips

Measure the outside of the lead pipe or bring an offcut to the counter so we can match it. Cut the lead square without squashing it. Support the lead so it does not bend while you tighten. On plastic pipe, put an insert in first.

Compression fittings from our Glasgow counter

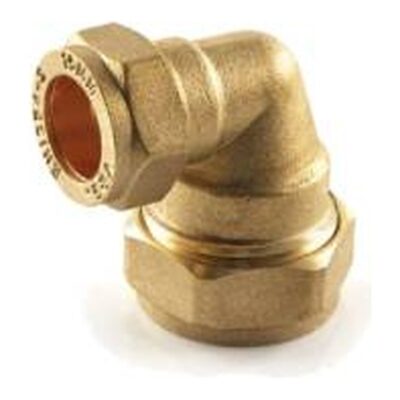

For couplers, elbows and tees to finish the job, see our compression fittings. Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Specification

• Material: Brass
• Connection: Compression to lead one end, compression to 15mm or 22mm the other
• Sizes: 3/8″ x 15mm 5LB, 1/2″ x 15mm 6LB, 1/2″ x 15mm 7LB, 3/4″ x 22mm 9LB
• Suitable for: Joining old lead water pipe to copper, or plastic with inserts

Common Questions

What do 5LB, 6LB, 7LB and 9LB mean on lead pipe?

They are lead pipe weight classes, the weight of one yard of pipe. A heavier class has a thicker wall.

How do I tell if my lead pipe is 6LB or 7LB?

Measure the outside with calipers. Or bring a short piece to our counter and we will match it.

Can I use this on a gas pipe?

No. This coupler is for water pipework only.
