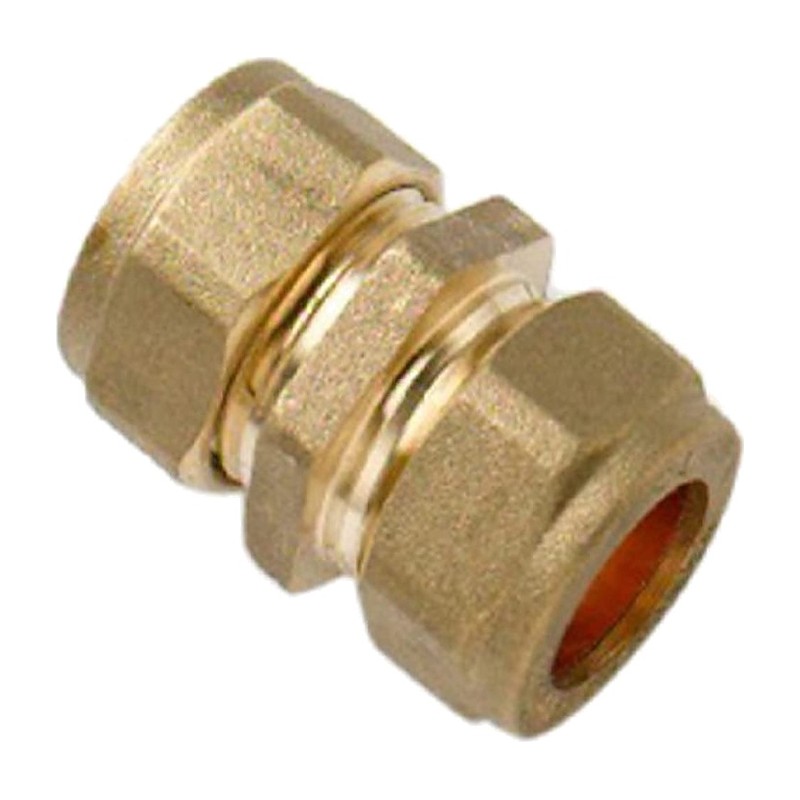

Compression Straight Coupler 8mm to 54mm

The Compression Straight Coupler joins two pipes of the same size end to end. We stock it in 8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm and 54mm. Most people come in for a 15mm compression coupling to repair a split pipe or extend a run to a tap or radiator. The small sizes suit microbore heating and the big ones suit mains and plant room work.

Each end has a nut and an olive, so the joint is made with two spanners and no heat. Cut the pipe square, clean off the burr, slide the nut and olive on, push the pipe into the body until it stops and tighten. It works on copper pipe, and on plastic pipe of the same size as long as you fit a pipe insert first so the pipe does not crush under the olive. A compression joint can be undone later if the job changes.

We keep every size on the shelf, so you can pick up one coupler or a bag of them. Call in to the Glasgow shop and we will check the size against your pipe at the counter.

Specification

• Connection: Compression, nut and olive at each end
• Sizes: 8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
• Suitable for: Joining two pipes of the same size end to end

Common Questions

What size compression coupler do I need for 15mm pipe? A 15mm one. Compression fittings are sized on the outside of the pipe, so the pipe and fitting carry the same number.

Can I use a compression coupler on plastic pipe? Yes, as long as the plastic pipe is the same size. Push a pipe insert into the end first so it does not crush under the olive.

Can I reuse a compression coupler on copper pipe? The joint can be undone later if the job changes. The olive grips the pipe once tightened, so if you cut the pipe back, fit a new olive.

What is a straight coupler used for? It joins two pipes of the same size end to end. Most folk use one to fix a split pipe or to extend a run to a tap or radiator.

How do I fit a compression coupler? Cut the pipe square and clean off the burr, then slip on the nut and olive. Push the pipe into the body until it stops and tighten while holding the coupler with a second spanner.

How tight should a compression coupler be? Hand tight, then roughly one more turn with a spanner. If it weeps under pressure, nip it a little further instead of forcing it.

Do you need PTFE on compression fittings? No, the seal comes from the olive squeezing onto the pipe, not from the thread. A square, clean cut does far more good than tape on the nut.
