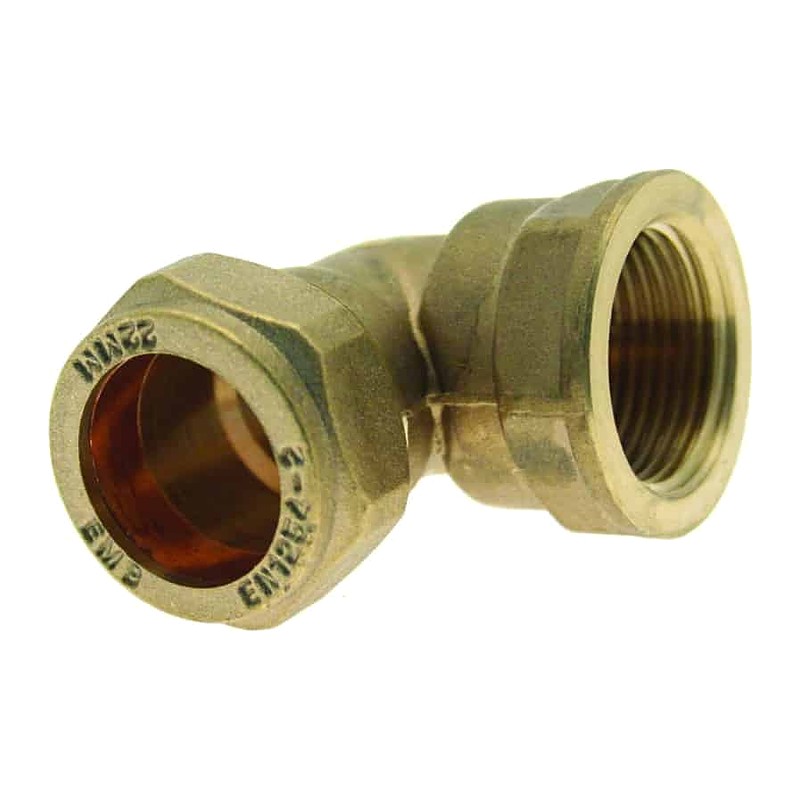

Compression Female Elbow 12mm to 54mm

Where a pipe needs to turn a corner and finish in a female thread, the Compression Female Elbow does both jobs. One end takes copper pipe with a nut and olive, and the other end has a female thread at 90 degrees for a male fitting to screw into.

Picking a Compression Female Elbow size

The first number is the pipe size and the second is the thread. For example, 15mm x 1/2″ is the common size for valves and fittings on domestic water. 22mm x 3/4″ and 22mm x 1″ suit bigger valves and pump connections. The large sizes up to 54mm x 2″ are for commercial pipework.

Seal the male thread with PTFE tape or jointing compound before screwing it in, and tighten the thread before you make the Compression joint. That way you do not twist the pipe joint when doing up the threaded side.

• Sizes: 12mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″
• Also 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
• Compression end for copper, female threaded end
• 90 degree body

Our Compression fittings page has the male versions too.
