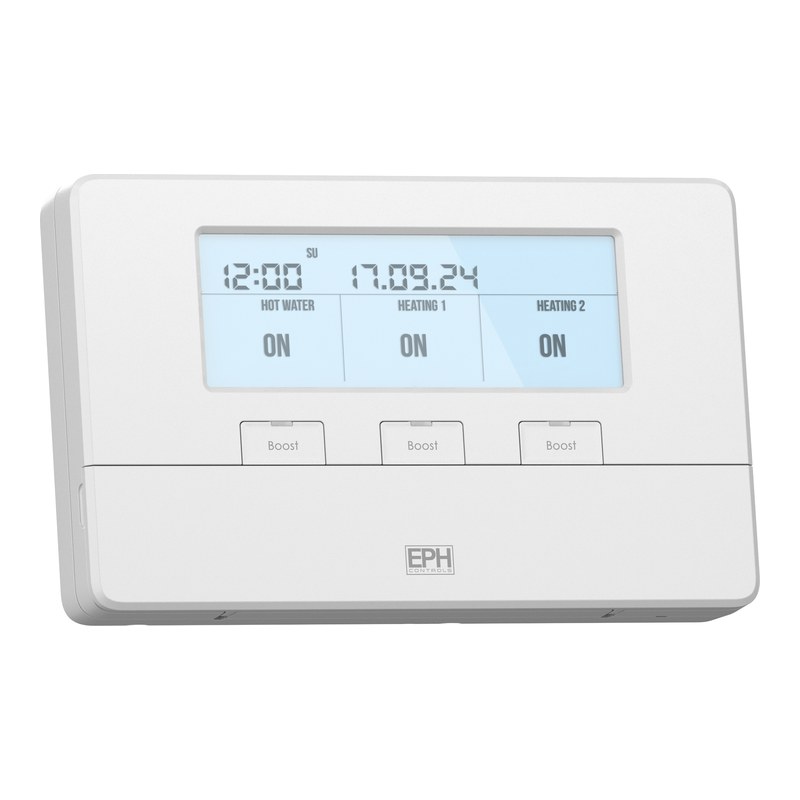

EPH R37 V2 3 Zone Programmer

The EPH R37 V2 is a wired 3 zone programmer for a house with hot water and two heating zones, such as upstairs and downstairs, each on its own zone valve. We keep it In Stock at our South Street counter in Glasgow.

Every zone has its own timetable on 24 hour, 5/2 day or 7 day settings with three on and off times a day, and a button each for boost. It sits on an 8 pin back plate, which comes with it.

Label each zone valve wire as you connect it, so the right zone opens for the right channel.

See the rest of our timeswitches and programmers, or come in and see it on the counter.

Specification

• Brand: EPH Controls
• Maker code: R37-V2
• Zones: 3 zones, hot water and 2 heating
• Modes: 24 hour, 5/2 day and 7 day
• On and off times: 3 per day
• Switch output: 230 V AC SPDT
• Contact rating: 3(1)A 230 V AC
• Back plate: 8 pin
• Screen: 100 x 35mm
• Working temperature: 0 to 50°C
• Stock: In Stock

Common Questions

Is the R37 V2 wired or wireless? It is wired. Each zone switches its own zone valve through the 8 pin back plate.

Do I need three zone valves? Yes, one for hot water and one for each heating zone, or the valves your system already has.

Can I collect it today? Yes. It is In Stock at our South Street counter during opening hours.
