FloPlast ABS Solvent Waste 92.5 Deg Bends 32mm to 50mm

Floplast ABS Solvent Waste 92.5 Deg Bends 32mm to 50mm

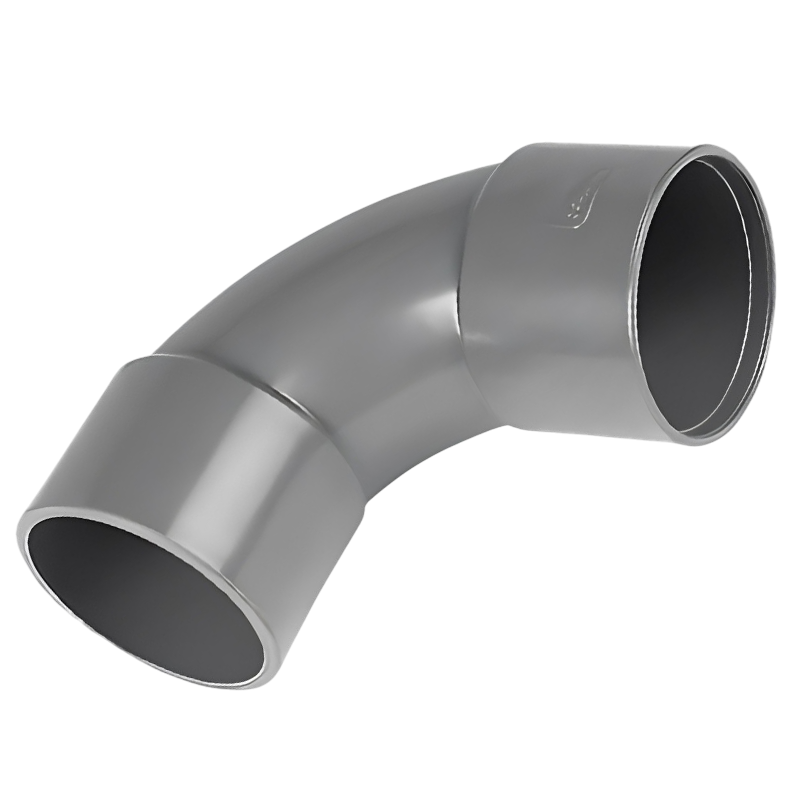

A 92.5 degree solvent weld bend for ABS waste pipe in 32mm, 40mm and 50mm.

Sizes in metric are 32mm, 40mm and 50mm, and imperial sizes between 1 1/4″ and 1 1/2″. Plumb Parts, 555 South Street, Glasgow G14 0QX, carries the Floplast ABS solvent waste range, which takes in 92.5 deg bends, 135 deg branches, couplings, female adaptors, 135 deg conversion bends, 90 deg conversion bends, 135 deg bends, pipe clips, access plugs, level invert reducers, air admittance valves (solvent, with universal adaptor), 90 deg bends, 92.4 deg cross tees, male tank connector adaptors, reducers and tees.

This fitting comes in white, grey and black, in 32mm, 40mm and 50mm.

System details: built to BS 5254 and BS EN 1451-1:2000. The fittings are moulded from white high temperature polypropylene and have compression outlets for plastic waste pipe of 32mm/1¼” and 40mm/1½”.

The wider system also has a pedestal trap of unusual design, four shower trap combinations with a plastic or chrome grid, and several appliance traps for fitting washing machines, dishwashers and the like.

Collect in store, open Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, or ask about delivery.

Specification

• Brand: FloPlast
• Range: ABS Solvent Weld Waste
• Maker code: WS14 (32mm Black), WS15 (40mm Black), WS16 (50mm Grey)
• Material: ABS
• Connection: Solvent weld
• Sizes: 32mm, 40mm, 50mm
• Standard/approval: BS EN 1455-1, Kitemarked
• Max temperature: Continuous discharge up to 70°C to 75°C
• Suitable for: Waste from sinks, basins, baths and showers

Common Questions

What sizes do the FloPlast 92.5 degree waste bends come in? They come in 32mm, 40mm and 50mm, in white, grey or black.

What are FloPlast solvent waste bends made of? They’re ABS, made to BS EN 1455-1 and Kitemarked, and suit continuous discharge up to around 70°C to 75°C.

How do I solvent weld these FloPlast waste bends? Cut the pipe square, clean both surfaces, apply solvent cement to the pipe and the socket, then push together and hold briefly. Dry fit first, as the joint is permanent once it sets.

Why is this waste bend 92.5 degrees instead of 90? The extra two and a half degrees gives a horizontal run a slight fall, so the water keeps heading for the outlet.

Can compression waste fittings go onto solvent weld waste pipe? Yes, a compression waste fitting can be used on a plain end of solvent weld pipe in the same size. It’s handy when you’re joining into an existing run.

Can a solvent weld waste joint be undone? No, once the cement sets the joint is permanent. To change it, cut the pipe either side and fit a new bend with couplings.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
