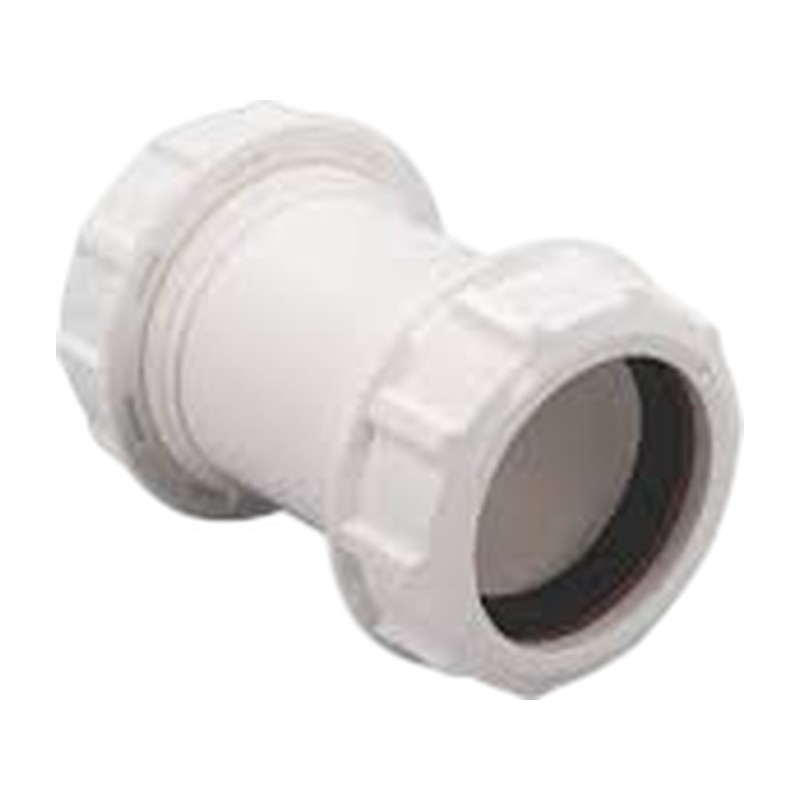

FloPlast Compression Straight Coupler – WC08 40mm

When a 40mm waste pipe needs joining without glue, the FloPlast Compression Straight Coupler WC08 does the job. Each side of this white fitting grips the pipe with its own nut and seal.

Jobs for the FloPlast Compression Straight Coupler WC08

Forty mil is the size for sinks, baths, showers and appliance wastes. This coupler joins two straight lengths in line. Because the joint is Compression, it is useful for tying new waste into an old run, and it can be undone later.

Square the pipe ends and deburr them. Fit the nut and seal, push the pipe in up to the stop and tighten by hand, then a little more. Check it does not twist the pipe out of line as you tighten.

After running water through, give the joint a look. A weep usually means the pipe was not pushed fully home.

Getting Compression couplers in Glasgow

More 40mm fittings are in the Flexible range. Collect from Plumb Parts at 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: FloPlast
• Range: Compression Waste
• Maker code: WC08
• Material: Polypropylene
• Connection: Compression nut and rubber seal at each side
• Sizes: 40mm
• Standard or approval: BS EN 1451-1
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Joining 40mm sink, bath and appliance waste without glue

Common Questions

Can the WC08 be used where two different makes of pipe meet?

Yes. FloPlast’s Compression fittings are made to take up small differences in size between makers and materials.

Is the WC08 suitable under a kitchen sink?

Yes. Because it comes apart, it is handy where the waste may need undoing when the sink or appliances are changed.

What causes a Compression nut to crack?

Overtightening, usually with grips. Hand tight plus a small turn is enough to squeeze the seal.

Datasheets

• FloPlast Unicom Compression Waste Leaflet (PDF)
