Step a 110mm soil stack sideways with the FloPlast Offset 135° Bend Ring Seal Top/Solvent Bottom SS440, in olive grey or black. Plumb Parts keeps it at our Glasgow counter.

SKUThumbnail Size Colour PriceQuantityTotal
SS440 FloPlast Offset 135° Bend Ring Seal Top/Solvent Bottom - SS440 110mm - 110mm - Olive Grey 110mm Olive Grey £9.54 inc VAT (£7.95 ex VAT)
-
+
£9.54 inc VAT
✓
spinner
SS440 FloPlast Offset 135° Bend Ring Seal Top/Solvent Bottom - SS440 110mm - 110mm - Black 110mm Black £9.54 inc VAT (£7.95 ex VAT)
-
+
£9.54 inc VAT
✓
spinner
Description

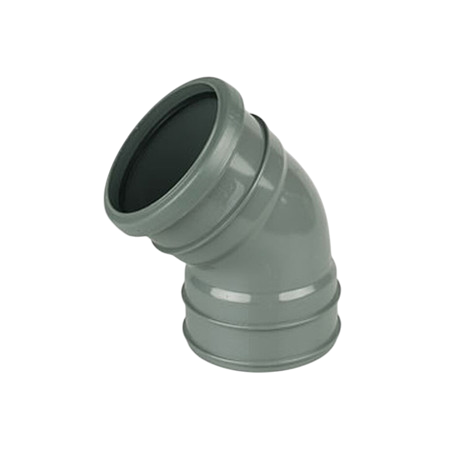

To step a 110mm soil stack sideways by a short distance, fit the FloPlast Offset 135° Bend Ring Seal Top/Solvent Bottom SS440. As the name says, the top joint is a Ring Seal and the bottom joint is Solvent Weld.

How the FloPlast Offset 135° Bend Ring Seal Top/Solvent Bottom SS440 works

Stacks often need to jog over a little: round a wall plate or the eaves, past a footing at ground level, or to line up with a drain connection. The offset does that in one piece. The Ring Seal top lets the pipe above push in, which allows for movement, while the solvent bottom makes a fixed joint below.

Use solvent cement on the solvent end and silicone lubricant on the Ring Seal end, and never mix the two up. Chamfer the spigot that goes into the Ring Seal so it does not roll the seal out of its groove.

Clip close above and below the offset, since it puts a sideways load on the stack. Check the alignment with a level before the cement sets.

Offset bends from our Glasgow counter

Couplers and clips can be found in the Flexible range, along with straight pipe. Plumb Parts sells online and at 555 South Street, Glasgow G14 0QX, with the counter open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.

Specification

  • Brand: FloPlast
  • Range: 110mm Solvent Soil
  • Maker code: SS440
  • Material: PVC-U
  • Connection: Ring Seal socket at the top, Solvent Weld joint at the bottom
  • Sizes: 110mm
  • Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
  • Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
  • Suitable for: Short sideways steps in a 110mm soil stack

Common Questions

Which end of the SS440 gets solvent cement?

Only the bottom joint, which is the solvent end. The Ring Seal at the top takes silicone lubricant, and cement there would ruin the seal.

Why would an offset have a Ring Seal top and a glued bottom?

The glued joint below stays fixed, while the Ring Seal above lets the pipe over it move as it warms and cools. FloPlast’s fixing guide asks for that kind of movement allowance on soil stacks.

Does the SS440 need extra clips?

Yes. An offset pushes sideways on the stack, so fix a clip close above it and another close below.
