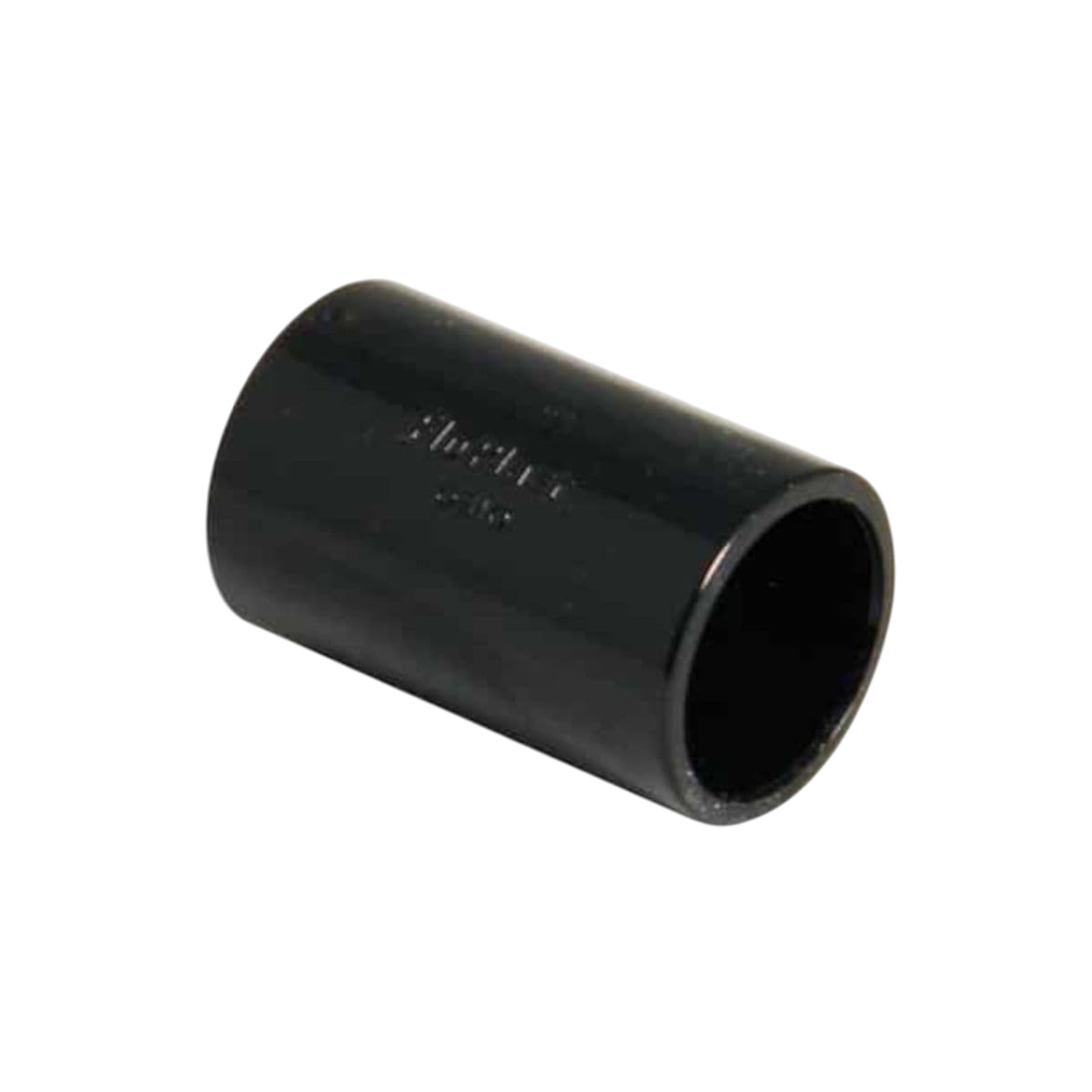

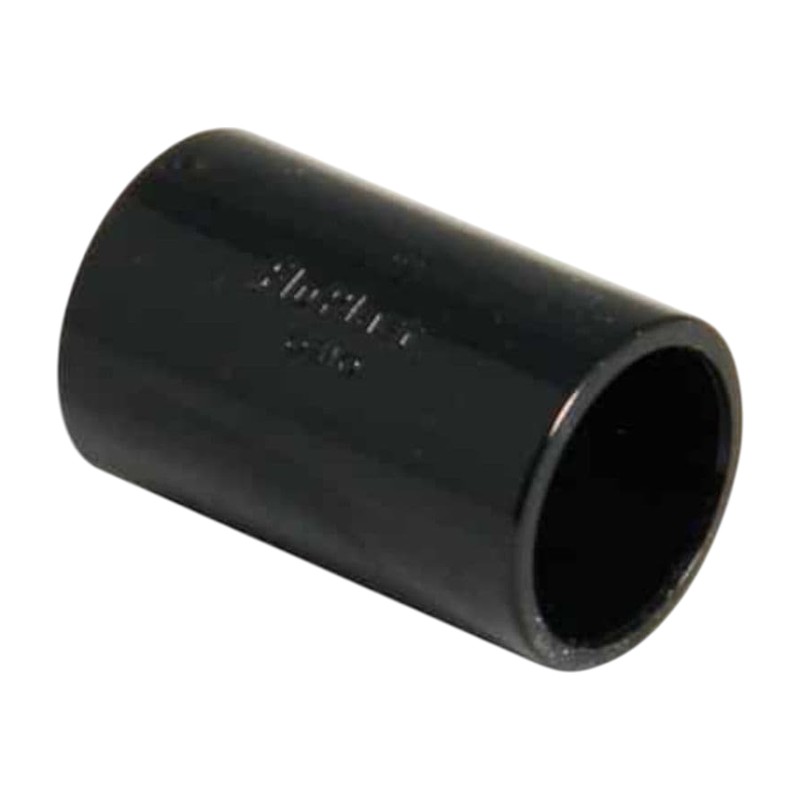

FloPlast Overflow Coupler – OS10 21.5mm

For joining two lengths of overflow pipe end to end, the FloPlast Overflow Coupler OS10 is the fitting. It is a plain double socket for 21.5mm overflow pipe, with Solvent Weld joints at both ends.

When you need a FloPlast Overflow Coupler OS10

On a long loft run, or an external condensate pipe working its way down a wall, you will need a coupler or two. It is equally handy for repairs. If a section has been cracked by a ladder or frost, cut it out and splice a new piece in with a coupler at each end.

Overflow pipe is small bore, so a pipe slice or fine-tooth saw gives a cleaner cut than a tired hacksaw blade. Clean off any burr, cement both surfaces and push home fully.

Wipe away surplus cement so it does not narrow the bore. Then clip the pipe either side of the coupler.

Buying overflow couplers in Glasgow

The Flexible range lists overflow bends, tees and clips. Order online, or pop into Plumb Parts at 555 South Street, Glasgow G14 0QX for the OS10, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.

Specification

• Brand: FloPlast
• Range: 21.5mm Overflow Waste
• Maker code: OS10
• Material: PVC-U
• Connection: Double socket, Solvent Weld both ends
• Sizes: 21.5mm
• Max temperature: 76°C continuous; up to 100°C for under 2 minutes
• Suitable for: Joining lengths of overflow or condensate pipe and making repairs

Common Questions

Can I mend a cracked overflow with the OS10?

Yes. Cut out the cracked section and glue in a new piece, using a coupler at each end.

What is the cleanest way to cut overflow pipe?

A pipe slice or fine-tooth saw gives a square cut. Take off the burr before cementing so the joint seats fully.

Does the coupler need a clip either side?

Yes. FloPlast’s tech sheet gives half a metre as the maximum bracket spacing, so put one close to each side of the joint.

Datasheets

• FloPlast Overflow System Tech Sheet (PDF)
