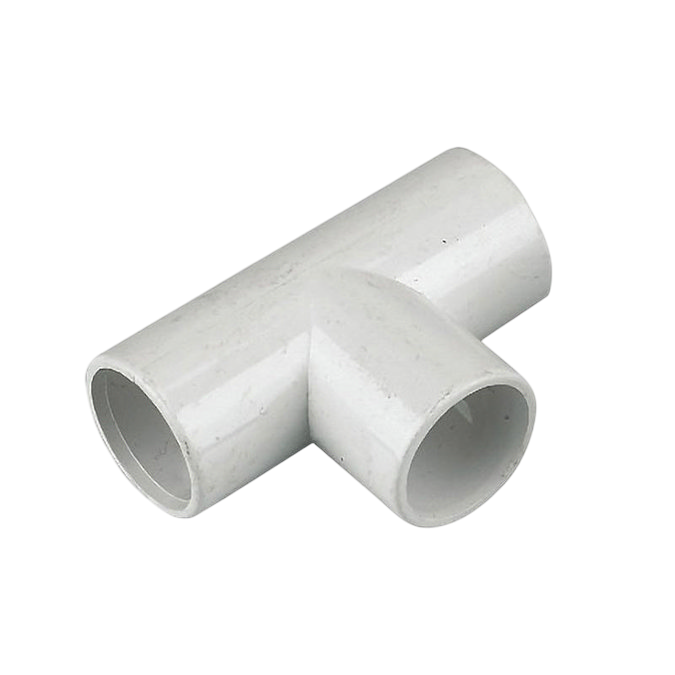

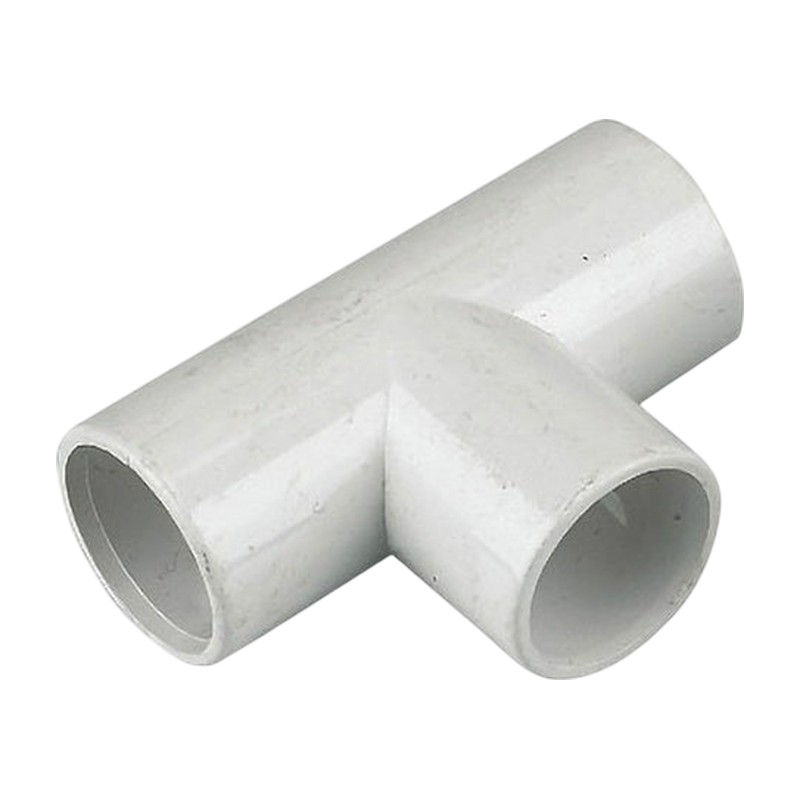

FloPlast Overflow Tee – OS13 21.5mm

Saving a second hole through the wall, the FloPlast Overflow Tee OS13 lets two overflow pipes share one run out of the building. It is a 21.5mm Solvent Weld tee from FloPlast’s overflow range.

When to use the FloPlast Overflow Tee OS13

Where two overflow runs meet, the tee joins them so a single pipe carries on to the outside. It also gets used on condensate runs.

An overflow is a warning pipe as much as anything, so the household needs to be able to see it running. If two cisterns share one outlet, you still need to be able to tell which one is discharging, so check the water regulations before combining them.

Cement each joint and keep every leg falling towards the outlet. Clip the branches close to the tee so neither pipe can sag and hold water. A dripping overflow means a fill valve or float needs attention, so it is worth fixing the cause quickly rather than living with it.

Buying overflow tees in Glasgow

Overflow pipe and fittings are in the Flexible range. The OS13 tee is sold at Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Online ordering suits too.

Specification

• Brand: FloPlast
• Range: 21.5mm Overflow Waste
• Maker code: OS13
• Material: PVC-U
• Connection: Three Solvent Weld sockets
• Sizes: 21.5mm
• Max temperature: 76°C continuous; up to 100°C for under 2 minutes
• Suitable for: Joining two overflow runs into one

Common Questions

Can two cisterns share one overflow through the OS13?

It can be done, but you still need to see which one is running. Check the water byelaws for your job before combining warning pipes.

Does the tee suit condensate runs too?

Yes, it is used on condensate pipework, as long as every leg falls towards the outlet. Clip each branch close to the tee.

Is the OS13 made in black?

Yes, FloPlast make the overflow tee in white and black. Match it to the pipe so the run looks finished.

Datasheets

• FloPlast Overflow System Tech Sheet (PDF)
