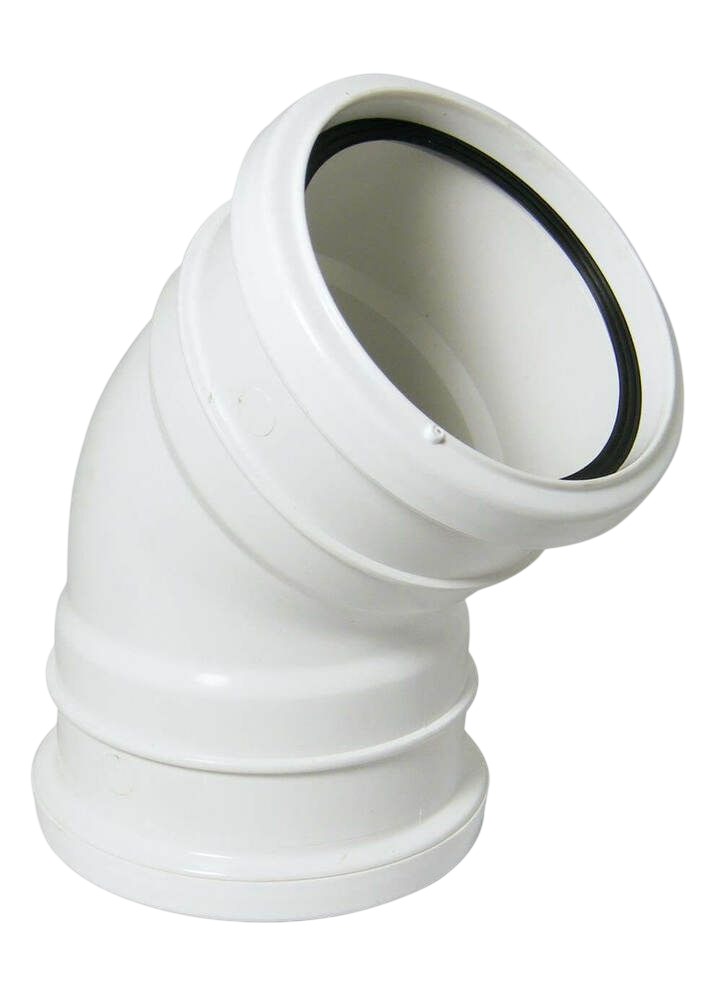

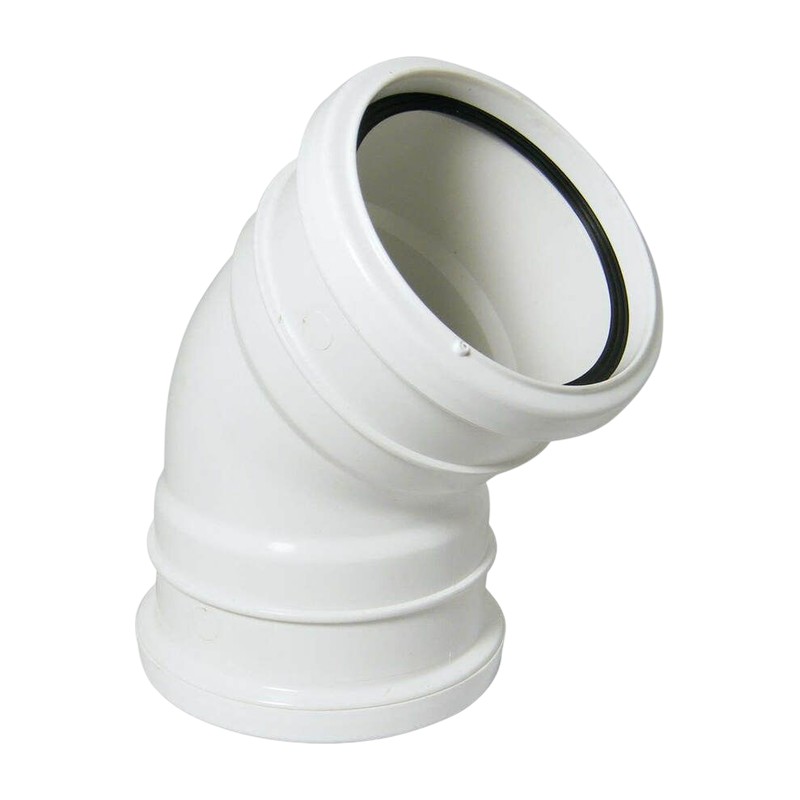

FloPlast Ring Seal 135 Deg Bend Double Socket – SP563 110mm

For a 45 degree change of direction, the FloPlast Ring Seal 135 Deg Bend Double Socket SP563 has a Ring Seal socket at both ends. You feed a plain pipe end into each one.

Using the FloPlast Ring Seal 135 Deg Bend Double Socket SP563

Two of these make an offset to take a stack round an obstacle. A single one eases a soil pipe into a different line without the sharp turn of a 90. Gentle bends also make rodding easier if the stack ever blocks.

Because both ends are sockets, you need plain-ended pipe going into each. Cut the pipe square, chamfer it and lubricate it with silicone. Push fully home and ease back a little for expansion.

Clip the pipe close to the bend on both sides so the fitting does not take the weight of the stack.

On an outside stack, check the alignment from a distance before fixing the last clip, since a bend that is off true is easy to spot from the street.

Buying soil bends in Glasgow

More 110mm soil parts are in our Flexible range. Plumb Parts serves from 555 South Street, Glasgow G14 0QX on Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and you can also order on the website.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP563
• Material: PVC-U
• Connection: Ring Seal socket at both ends
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: 45 degree changes of direction and offsets on soil pipe

Common Questions

Can you have a bend in a soil pipe? Yes, bends are used all the time on soil pipework to change direction. The SP563 turns the run through 45 degrees, and it’s best to keep bends to what you need so the pipe drains freely.

Can you bend soil pipe itself? No, rigid PVC-U soil pipe shouldn’t be heated or forced into a curve. Use a moulded bend like this one to make the turn properly.

What does a 135 degree bend look like? It’s a gentle 45 degree change of direction, the angle between the two legs being 135 degrees. Two of them together make a sweeping right-angle turn.

When should I pick the double socket version? Use the SP563 where there’s plain pipe going into both ends. If one end plugs straight into another fitting, the socket/spigot SP163 is usually neater.

How do I fit pipe into a ring seal socket? Cut the pipe square and take the burr off so it doesn’t damage the seal, lubricate it with silicone, push it fully home, then pull it back 10mm for expansion. Clip each leg close to the bend.
