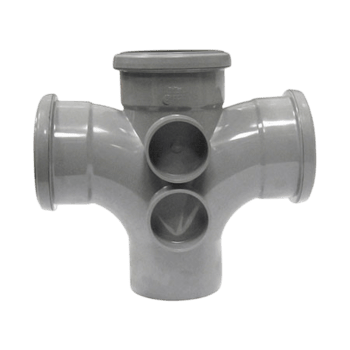

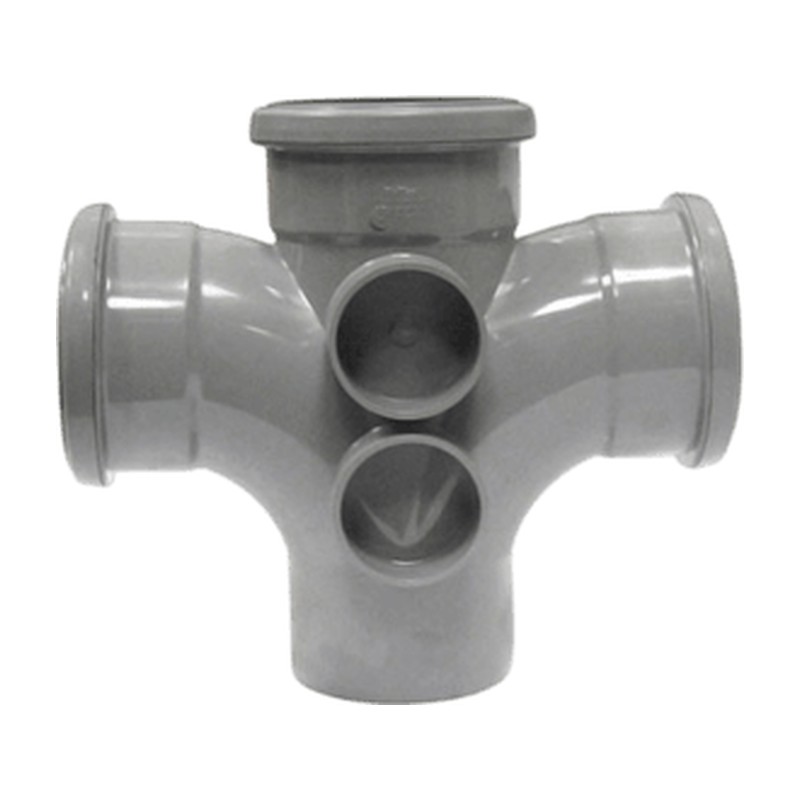

FloPlast Ring Seal 92.5 Deg Double Branch – SP230 110mm
£44.66 inc VAT (£37.22 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Back-to-back bathrooms sharing a stack? The FloPlast Ring Seal 92.5 Deg Double Branch SP230 gives two opposed 110mm inlets at one level, in black, white or grey. Plumb Parts has it in Glasgow.
| SKU | Thumbnail | Size | Colour | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|---|
| SP230 |
|
110mm | Black | £44.66 inc VAT (£37.22 ex VAT) |
-
+
|
£44.66 inc VAT | ||
| SP230 |
|
110mm | White | £44.66 inc VAT (£37.22 ex VAT) |
-
+
|
£44.66 inc VAT | ||
| SP230 |
|
110mm | Grey | £44.66 inc VAT (£37.22 ex VAT) |
-
+
|
£44.66 inc VAT |
With two inlets opposite each other, the FloPlast Ring Seal 92.5 Deg Double Branch SP230 lets two soil connections meet a 110mm stack at the same level.
Typical jobs for the FloPlast Ring Seal 92.5 Deg Double Branch SP230
Back-to-back bathrooms are the classic use, where a WC on each side of a wall shares one stack. It also helps where a pan and another soil connection arrive from opposite sides. If your two connections come from walls at right angles, a corner branch suits better.
Set the branch height so both pipes fall into the stack. Chamfer each pipe end, apply silicone lubricant and push the joints fully home, easing back a touch.
Bracket the stack close to the branch, because it carries load from both sides.
If one side will not be connected straight away, close it with a socket plug so smells cannot escape. Label which side is live so the next trade does not cut into the wrong one.
Double branches from Glasgow
Socket plugs for a spare inlet, plus pipe and bends, are in our Flexible range. Collect at Plumb Parts, 555 South Street, Glasgow G14 0QX on Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or let the website handle the order.
Specification
- Brand: FloPlast
- Range: 110mm Ring Seal Soil
- Maker code: SP230
- Material: PVC-U
- Connection: Two opposed branch inlets, Ring Seal joints
- Sizes: 110mm
- Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
- Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
- Suitable for: Back-to-back WCs sharing one stack
Common Questions
Is the SP230 the branch for back-to-back bathrooms?
Yes, that is its classic use. A WC each side of the wall can join one stack at the same level.
What if my two connections come from walls at right angles?
Then use a corner branch instead. The SP230 inlets face directly away from each other.
How do I stop smells from a side that is not connected yet?
Fit a 110mm socket plug and label which side is live. That also tells the next trade not to cut into it.
Datasheets
| Size |
110mm |
|---|---|
| Colour |
Black ,White ,Grey |
