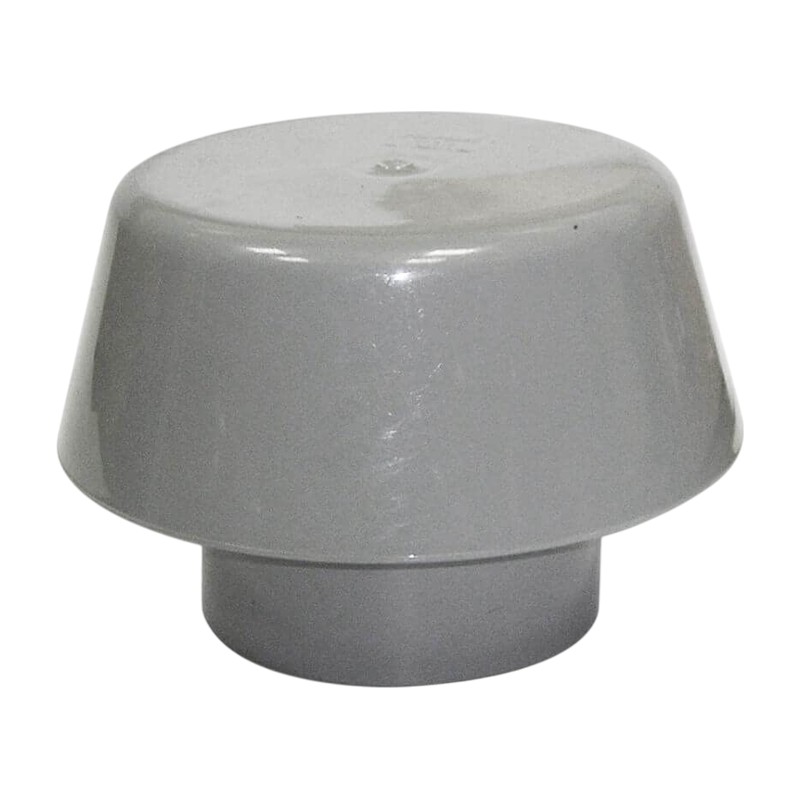

FloPlast Seal Ring Extract Cowl – SP310 110mm

Exposed vents benefit from the FloPlast Seal Ring Extract Cowl SP310, a hooded cap for the top of a 110mm soil vent pipe. Air still moves in and out of the stack, but the hood keeps rain out as well as birds and debris.

Why choose the FloPlast Seal Ring Extract Cowl SP310

A plain vent terminal keeps wildlife out but lets rain fall straight down the stack. On exposed sites, or where you would rather the vent stayed dry, the cowl is the better choice. It pushes onto the pipe with a Ring Seal, so no solvent is needed.

Square off the top of the vent and bevel the edge, so the seal is not shoved aside. A wipe of silicone lubricant helps it go on.

Where the pipe passes through a pitched roof, fit a weathering slate and collar before the cowl.

Check the finished height above the roof and its distance from windows, since the building regulations set rules for soil vents.

Vent cowls at our Glasgow counter

A weathering slate and collar are in our Flexible range if the roof needs them. Trade and public are both served at Plumb Parts, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP310
• Material: PVC-U
• Connection: Ring Seal push-on joint
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Hooded top for a 110mm soil vent pipe

Common Questions

Cowl or vent terminal: which suits my roof?

The SP310 cowl has a hood that keeps rain out as well as birds and debris, so it suits exposed spots. An open terminal guards only against wildlife.

What goes on before the cowl on a pitched roof?

Dress a weathering slate round the pipe and fit the collar above it. The SP310 cowl goes on at the very end.

Are there rules on how high the vent sits?

Yes. Approved guidance limits how low a soil vent can finish and how near it can be to an opening window, so measure before you cut the pipe to length.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
