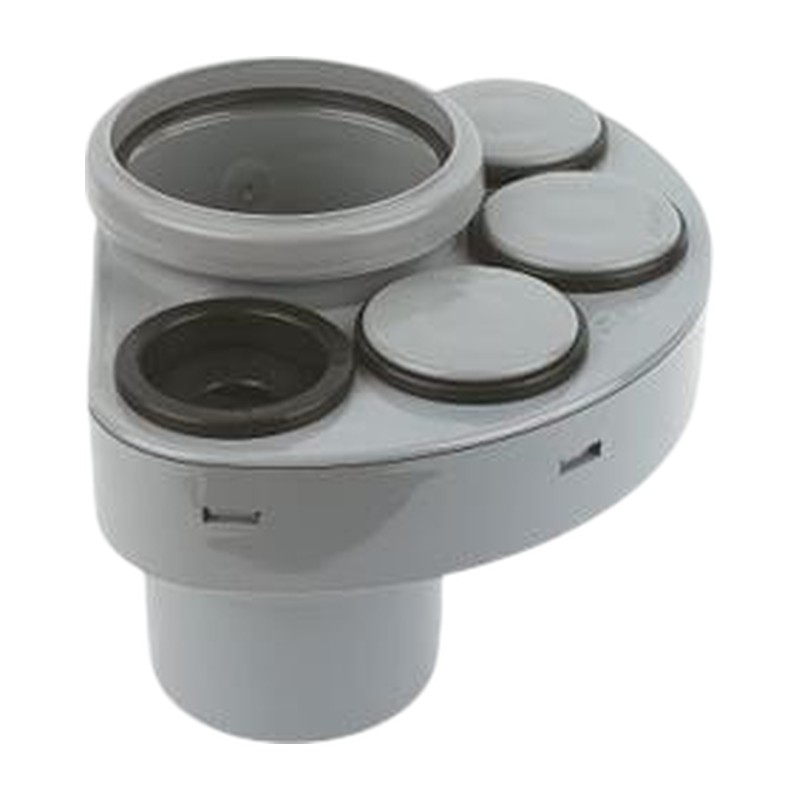

FloPlast Seal Ring Soil Manifold – SP588 110mm

Several bathroom wastes can meet the stack at the FloPlast Seal Ring Soil Manifold SP588, a short section of 110mm soil pipe with several boss connections built in, so you can bring multiple wastes into the stack at one point. The version sold here comes with one boss open and ready to use.

Using the FloPlast Seal Ring Soil Manifold SP588

In a bathroom, the basin, bath and shower wastes all need to reach the stack. Instead of cutting in separate bosses, a manifold gathers them together. That is handy in a corner where every appliance has to reach the same spot.

Set the height so each waste can reach its boss with a proper fall. Open the extra bosses only when you need them, with a hole saw matched to the boss adaptor.

Wastes connect through boss adaptors, sold separately. Use silicone lubricant on Ring Seal joints.

Watch the rules on waste connections near a WC branch, so wastes are not fouled by the pan discharge.

Soil manifolds in Glasgow

The boss adaptors it needs are listed in our Flexible range, and the team at Plumb Parts, 555 South Street, Glasgow G14 0QX, serves customers Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, as well as through the website.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP588
• Material: PVC-U
• Connection: Ring Seal joints; bosses for Push-Fit waste connections
• Sizes: 110mm, one open boss
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Gathering several wastes into a stack in the corner of a room

Common Questions

What does the SP588 soil manifold do?

It brings several wastes into the stack at one point. FloPlast say it helps prevent stack induced siphonage on the connecting runs and avoids crossflow problems.

How many wastes can it take?

FloPlast say up to four, from basin, bath and sink sized pipes, through simple Push-Fit connections. This one comes with one boss open.

Where is a manifold usually fitted?

FloPlast design it for a soil stack in the corner of a room. Set the height so each waste has a proper fall.

Datasheets

• FloPlast Soil Manifold Leaflet (PDF)
