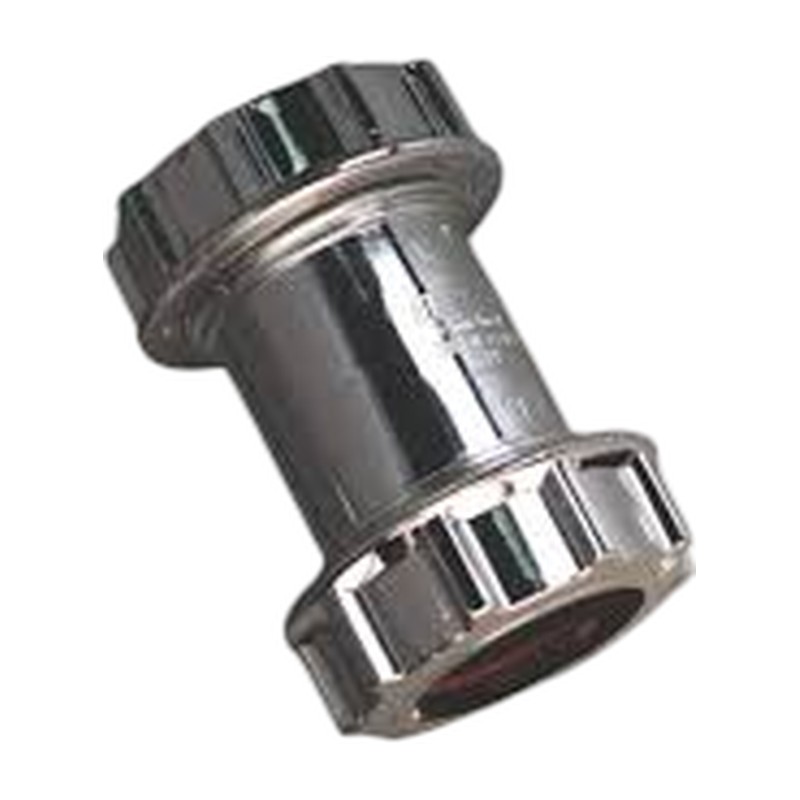

FloPlast Universal Compression Chrome Style Coupling – CW07 32mm

Visible basin wastes stay smart with the FloPlast Universal Compression Chrome Style Coupling, which joins two lengths of 32mm pipe and keeps the chrome look going. It is the CW07, a straight coupling with a Compression nut and seal at each end.

Using the FloPlast Universal Compression Chrome Style Coupling

Wall-hung basins and open pedestals leave the waste in plain sight. A white coupler in the middle of a chrome run looks like an afterthought. This one matches chrome style traps, bends and clips, so the run looks planned.

Cut the pipe square and smooth off any burr so it does not cut the seal. Put the nut and seal over the pipe, push it home against the stop and wind the nut on by hand. A gentle extra nip with a cloth round it is enough; grips will scratch the finish.

Because there is no glue, the joint can be undone if the basin is ever changed. Clip the pipe either side so it stays straight.

Wipe chrome style fittings with a soft damp cloth. Harsh cleaners and scourers dull the finish.

Specification

• Brand: FloPlast
• Range: Chrome Style Compression Waste
• Maker code: CW07
• Material: Polypropylene with a chrome look finish
• Connection: Compression nut and seal on both ends of the coupling
• Sizes: 32mm
• Standard or approval: BS EN 1451-1 (FloPlast data)
• Suitable for: Exposed basin wastes where the pipe is on show
• Max temperature: Continuous discharge up to 70°C to 75°C

Common Questions

Will the CW07 coupling grip an old white plastic basin waste?

Yes, in most cases. FloPlast make their Compression waste to take 32mm plastic waste pipe whatever the make, so it is handy for tying a new chrome run into an older white one.

Does the chrome finish rub off?

It is a plated look on a plastic body, so treat it gently. Tighten by hand with a cloth over the nut and clean it with a damp cloth, never a scourer or bleach cleaner.

Can I take the coupling apart later?

Yes. Back the nuts off and the pipe slides out, so you can get at the basin waste or swap the basin without cutting anything.

Chrome waste fittings in Glasgow

Bends, tees and clips are in the Flexible range. Plumb Parts, 555 South Street, Glasgow G14 0QX has the counter open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and an online shop.

Datasheets

• FloPlast Chrome Style Compression Waste and Traps Leaflet (PDF)
