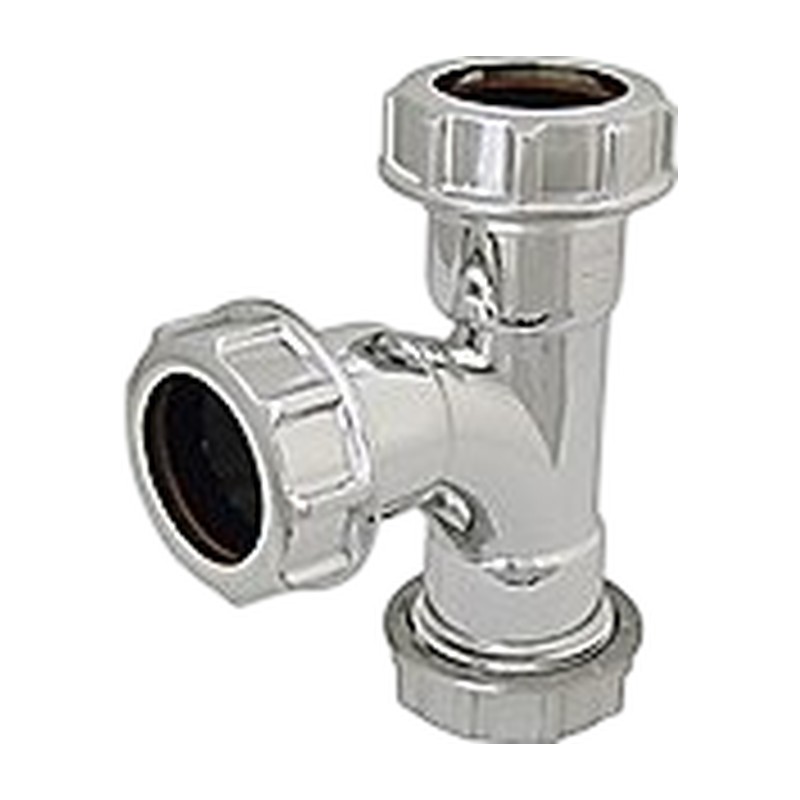

FloPlast Universal Compression Chrome Style Tee – CW23 40mm

For a neat junction on show, fit the FloPlast Universal Compression Chrome Style Tee CW23. Its finish is chrome style, and all three legs use Compression joints.

Fitting the FloPlast Universal Compression Chrome Style Tee CW23

Under a wall-hung sink or across a wet room wall, every fitting is on show. This tee lets two wastes join without a white fitting breaking up the run. It suits sinks, baths and showers in 40mm.

Square and deburr each pipe end. Nut first, then seal, then seat the pipe and wind the nut on by hand with a final small turn. Protect the chrome with a cloth rather than using grips.

Make sure both branches fall towards the outlet. Where two appliances drain at once, think about the flow so one does not back up the other.

Compression joints can be undone later, which helps with cleaning and alterations. Chrome clips either side finish the run.

Specification

• Brand: FloPlast
• Range: Chrome Style Compression Waste
• Maker code: CW23
• Material: Polypropylene body, chrome style finish
• Connection: Compression joint on all three legs
• Sizes: 40mm
• Standard or approval: FloPlast list it to BS EN 1451-1
• Suitable for: Visible sink, bath and shower waste runs
• Max temperature: Continuous discharge up to 70°C to 75°C

Common Questions

Can a washing machine hose go into the CW23?

Not directly. The tee joins 40mm waste pipe, so an appliance hose needs a proper appliance trap or standpipe first, then the waste pipe can come into the tee.

Which way round does the branch go?

The branch should join so its flow heads towards the outlet, with both pipes falling. Fit it level across the top so water from one side does not run back up the other.

Is there 40mm chrome style pipe to go with the CW23?

Yes, FloPlast make a 3m chrome style waste pipe in 40mm, plus bends, couplings and clips. Using them keeps the whole run the same colour from trap to wall.

Chrome style fittings in Glasgow

Chrome style couplings, bends and clips are in the Flexible range, so the whole run can match. Plumb Parts, 555 South Street, Glasgow G14 0QX opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order online.

Datasheets

• FloPlast Chrome Style Compression Waste and Traps Leaflet (PDF)
