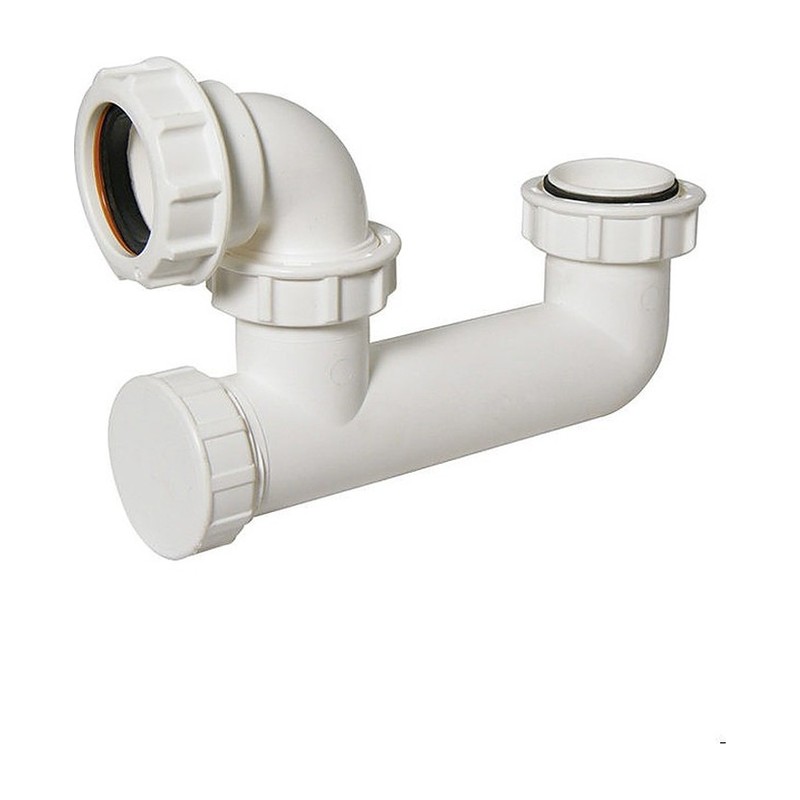

FloPlast White Low Level Bath Trap with Overflow Access 50mm Seal x 40mm

The FloPlast White Low Level Bath Trap with Overflow Access 50mm Seal x 40mm is made for baths that sit low to the floor. It keeps a 50mm water seal while taking up less height than a standard trap, and it has a connection for the bath overflow pipe.

Fitting a low level bath trap

Under a bath there is often only a small gap between the waste outlet and the floorboards, especially with modern baths on short legs. A low level trap is built for that gap. The overflow access lets the overflow hose join the trap, so overflow water goes away through the same 40mm waste. It suits both new bathrooms and the replacement of a cracked old trap.

Glasgow counter tips before the bath panel goes on

Fit the trap and overflow while the bath is still easy to reach, ideally before it is pushed back against the wall. Hand tighten the top nut onto the bath waste with the washer seated. Then connect the overflow and make the outlet joint to the 40mm pipe. Keep a steady fall on the waste away from the trap. Fill the bath to the overflow and let it out in one go. That tests both joints and shows up any slow drainage. If you can, leave an access panel in the bath side for later.

The FloPlast White Low Level Bath Trap with Overflow Access 50mm Seal x 40mm is part of our FloPlast traps range.

Collection is from Plumb Parts, 555 South Street, Glasgow G14 0QX. Bath traps can be bought over the counter Mon-Fri 8am-5pm and also Sat-Sun 8am-1pm, or you can order on the website.

Specification

• Brand: FloPlast
• Range: Waste Traps
• Maker code: TLB45
• Material: White polypropylene
• Sizes: 40mm, 50mm water seal
• Standard or approval: BS EN 274-1
• Suitable for: Baths with little room under the waste, with cleaning access for the overflow

Common Questions

Is a 50mm seal enough for a bath?

A 50mm seal is a common depth for bath traps. Keep the waste run short and well vented so the water is not pulled out.

Does the overflow pipe connect to this trap?

Yes, the trap has a connection for the bath overflow so both drain through one 40mm waste.

Can I reach it after the panel is on?

Only if you leave an access point. Try to keep a removable panel or hatch at the tap end so the trap can be cleaned.
