Geberit Mapress Stainless Steel Adapter Female Thread Plain End 22mm to 108mm
Price range: £20.86 through £329.12 inc VAT ( Price range: £17.38 through £274.27 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

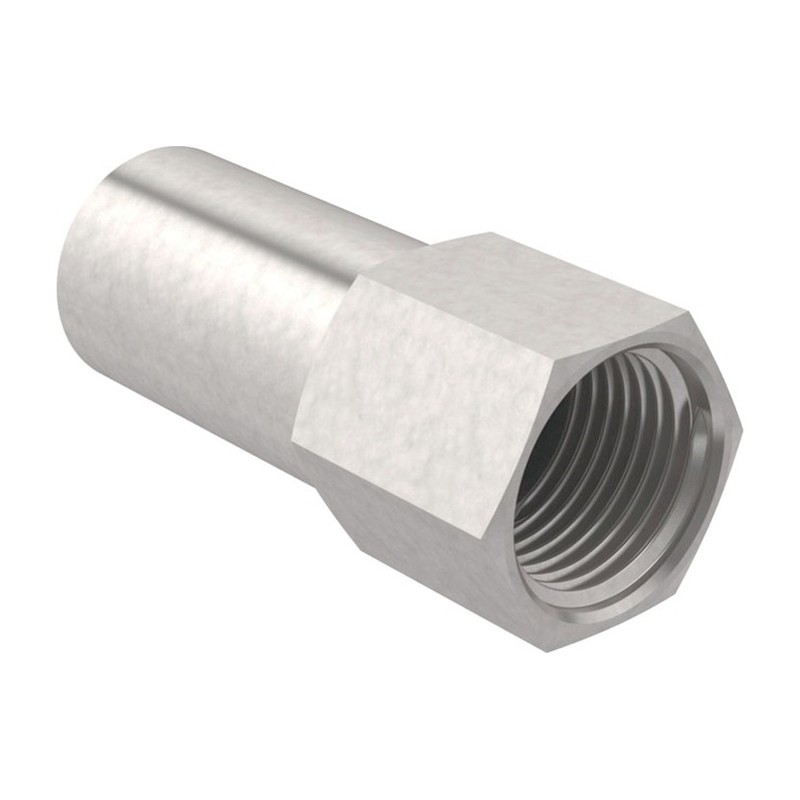

Geberit Mapress 316 Stainless Steel Adapter Female Thread Plain End has a plain spigot that fits a Mapress socket and a 1/2″ female thread for gauges, vents or drains. Sizes 22mm x 1/2″ to 108mm x 1/2″, from Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| GEBSSFCP22D |
|
22mm x 1/2" | £20.86 inc VAT (£17.38 ex VAT) |
-
+
|
£20.86 inc VAT | ||
| GEBSSFCP28D |
|
28mm x 1/2" | £27.18 inc VAT (£22.65 ex VAT) |
-
+
|
£27.18 inc VAT | ||
| GEBSSFCP35D |
|
35mm x 1/2" | £36.01 inc VAT (£30.01 ex VAT) |
-
+
|
£36.01 inc VAT | ||
| GEBSSFCP42D |
|
42mm x 1/2" | £46.14 inc VAT (£38.45 ex VAT) |
-
+
|
£46.14 inc VAT | ||
| GEBSSFCP54D |
|
54mm x 1/2" | £54.97 inc VAT (£45.81 ex VAT) |
-
+
|
£54.97 inc VAT | ||
| M33860 |
|
76mm x 1/2" | £192.06 inc VAT (£160.05 ex VAT) |
-
+
|
£192.06 inc VAT | ||
| 33862 |
|
89mm x 1/2" | £272.93 inc VAT (£227.44 ex VAT) |
-
+
|
£272.93 inc VAT | ||
| GEBSSFCP108D |
|
108mm x 1/2" | £329.12 inc VAT (£274.27 ex VAT) |
-
+
|
£329.12 inc VAT |
A 1/2″ female tapping straight off a plain spigot is what the Geberit Mapress 316 Stainless Steel Adapter Female Thread Plain End gives you. The spigot is sized to the stainless pipe, so it pushes into the socket of a tee or other Mapress fitting and is pressed there.
Uses of the Geberit Mapress 316 Stainless Steel Adapter Female Thread Plain End
Every size has the same 1/2″ thread, which tells you what it is mostly for: small connections off a bigger run. Typical examples are a pressure gauge, an air vent, a test point, a temperature sensor or a drain cock. Plug it into the branch of a tee and you have a threaded point without a separate reducer.
- 22mm x 1/2″, 28mm x 1/2″ and 35mm x 1/2″
- 42mm x 1/2″ and 54mm x 1/2″
- 76mm x 1/2″, 89mm x 1/2″ and 108mm x 1/2″
- Plain end, female thread, 316 stainless steel
Screw the gauge or vent into the female thread before you press, if the layout lets you. Check that the thread sealant you use is suitable for 316 stainless steel. Mark the insertion depth on the plain end and push it fully into the mating socket. Then press with the jaw for that pipe size, and look at the mark again. Keep the plain end free from dents, because the seal ring in the other fitting grips on it. More adaptors live in the Geberit Mapress 316 stainless steel range.
Threaded stainless parts in Glasgow
Plumb Parts, 555 South Street, Glasgow G14 0QX, is open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm for collection. You can also order online.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Maker code: 33846 (22mm x 1/2″), 33848 (28mm x 1/2″), 33850 (35mm x 1/2″), 33852 (42mm x 1/2″), 33854 (54mm x 1/2″), 33862 (89mm x 1/2″), 33864 (108mm x 1/2″)
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: Plain spigot to fit a Mapress socket, female thread on the outlet
- Sizes: 22mm x 1/2″, 28mm x 1/2″, 35mm x 1/2″, 42mm x 1/2″, 54mm x 1/2″, 76mm x 1/2″, 89mm x 1/2″ and 108mm x 1/2″
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
Common Questions
Why does every size have a 1/2″ thread?
This adaptor is made for small tappings off bigger pipe, such as a gauge, air vent or sensor. If you need a full bore threaded outlet, look at the female thread adaptors with larger threads.
Can it plug into the branch of a 54mm tee?
Yes, the 54mm x 1/2″ spigot pushes into a 54mm socket on a tee or elbow and is pressed there. Mark the depth on the spigot first.
What thread sealant should I use on stainless?
Use PTFE tape or a paste that is rated for 316 stainless steel and for the water in the system. Make the threaded joint before you press, so no twisting reaches the seal ring.
Datasheets
| Sizes |
22mm x 1/2" ,28mm x 1/2" ,35mm x 1/2" ,42mm x 1/2" ,54mm x 1/2" ,76mm x 1/2" ,89mm x 1/2" ,108mm x 1/2" |
|---|
