Geberit Mapress Stainless Steel Adaptor Union C/W SS Nut Male 15mm to 54mm
Price range: £34.42 through £166.51 inc VAT ( Price range: £28.68 through £138.76 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

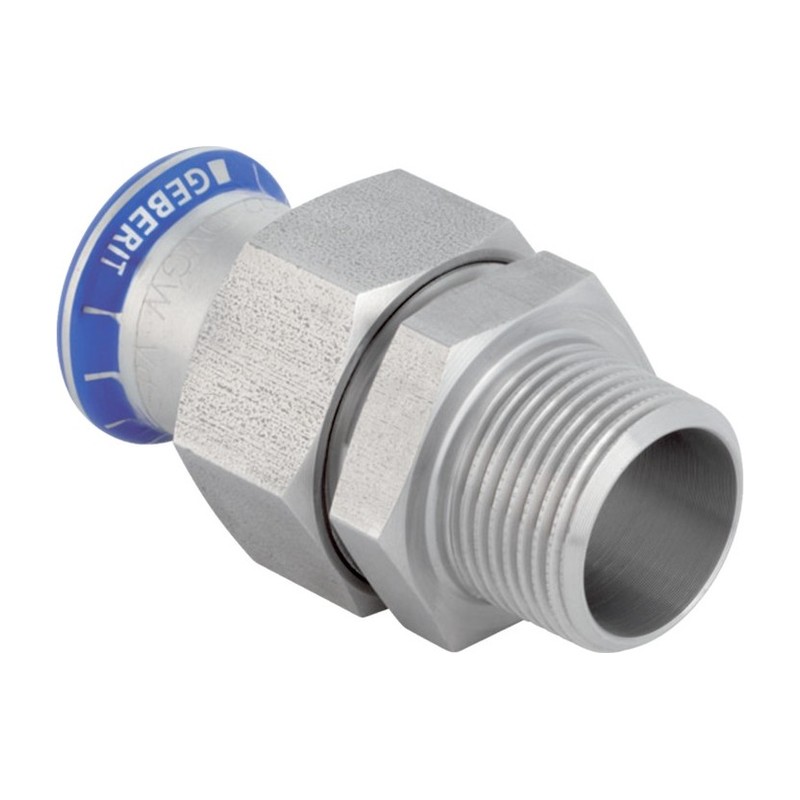

The Geberit Mapress 316 Stainless Steel Adaptor Union C/W SS Nut Male makes a breakable joint between stainless press pipe and a female thread, with its own stainless nut. Choose from 15mm x 1/2″ through 54mm x 2″ at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| M35360 |
|
15mm x 1/2" | £34.42 inc VAT (£28.68 ex VAT) |
-
+
|
£34.42 inc VAT | ||
| M35361 |
|
15mm x 3/4" | £34.42 inc VAT (£28.68 ex VAT) |
-
+
|
£34.42 inc VAT | ||
| M35364 |
|
22mm x 1/2" | £40.98 inc VAT (£34.15 ex VAT) |
-
+
|
£40.98 inc VAT | ||
| M35365 |
|
22mm x 3/4" | £40.98 inc VAT (£34.15 ex VAT) |
-
+
|
£40.98 inc VAT | ||
| M35366 |
|
22mm x 1" | £40.98 inc VAT (£34.15 ex VAT) |
-
+
|
£40.98 inc VAT | ||
| M35367 |
|
28mm x 1" | £62.29 inc VAT (£51.91 ex VAT) |
-
+
|
£62.29 inc VAT | ||
| M35368 |
|
35mm x 1.1/4" | £83.28 inc VAT (£69.40 ex VAT) |
-
+
|
£83.28 inc VAT | ||
| M35369 |
|
42mm x 1.1/2" | £96.35 inc VAT (£80.29 ex VAT) |
-
+
|
£96.35 inc VAT | ||
| M35370 |
|
54mm x 2" | £166.51 inc VAT (£138.76 ex VAT) |
-
+
|
£166.51 inc VAT |
Supplied complete with a 316 stainless steel nut, each Geberit Mapress 316 Stainless Steel Adaptor Union C/W SS Nut Male joins stainless press pipe to a female threaded part through a union. One end presses on, and the other carries a male thread.
Fitting your Geberit Mapress 316 Stainless Steel Adaptor Union C/W SS Nut Male
The male thread screws into a valve body, a pump connection or a vessel boss. The union in between means you can later take that equipment off without disturbing the pipe. Engineers tend to put one on each side of anything that will need servicing, so the part drops straight out.
- 15mm x 1/2″, 15mm x 3/4″
- 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″
- 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
- Male thread, union and stainless nut
Thread the male end into its fitting first and seal it with a product suitable for 316 stainless steel. Hold the adaptor on its flats rather than on the union nut while tightening. Next, prepare the pipe in the normal way and press the socket end. Finally, close the union and tighten it gently, because the seal does the work, not brute force. Remember to note where unions are on as fitted drawings, so the next engineer can find them. The female version is listed in our Geberit Mapress 316 stainless steel range too.
Buying union adaptors in Glasgow
Get these at the Plumb Parts counter, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm. Ordering online is the alternative.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Maker code: 35360 (15mm x 1/2″), 35361 (15mm x 3/4″), 35365 (22mm x 3/4″), 35366 (22mm x 1″), 35367 (28mm x 1″), 35369 (42mm x 1.1/2″), 35370 (54mm x 2″)
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: Press Fit socket (black CIIR seal ring), union with stainless nut, male thread
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
Common Questions
Is a stainless nut better than the standard one?
It keeps every part of the union stainless, which some specifications ask for on drinking water and process jobs. Geberit sell both versions, so follow the project specification.
Can I put this union on the inlet of a water heater?
Yes, the male thread goes into a female port on the heater and the union lets the heater come off later. Follow the heater maker’s instructions on valves and connections.
How many sizes take a 22mm pipe?
Three: 22mm x 1/2″, 22mm x 3/4″ and 22mm x 1″. The thread size is the second figure.
Datasheets
| Sizes |
15mm x 1/2" ,15mm x 3/4" ,22mm x 1/2" ,22mm x 3/4" ,22mm x 1" ,28mm x 1" ,35mm x 1.1/4" ,42mm x 1.1/2" ,54mm x 2" |
|---|
