Geberit Mapress Stainless Steel Adaptor Union Female Thread 15mm to 54mm
Price range: £12.29 through £127.90 inc VAT ( Price range: £10.24 through £106.58 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

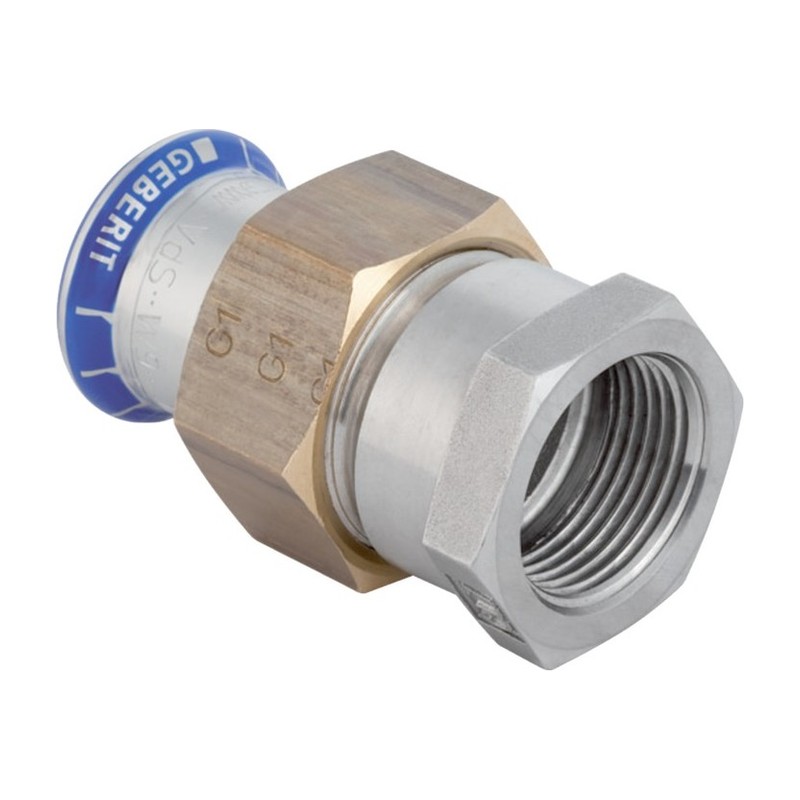

Geberit Mapress 316 Stainless Steel Adaptor Union Female Thread joins stainless press pipe to male threaded equipment through a union for easy removal. There are sizes from 15mm x 1/2″ up to 54mm x 2″, all available through Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 35360 |
|
15mm x 1/2" | £12.29 inc VAT (£10.24 ex VAT) |
-
+
|
£12.29 inc VAT | ||
| 35301 |
|
15mm x 3/4" | £26.21 inc VAT (£21.84 ex VAT) |
-
+
|
£26.21 inc VAT | ||
| M35304 |
|
22mm x 3/4" | £29.52 inc VAT (£24.60 ex VAT) |
-
+
|
£29.52 inc VAT | ||
| 35366 |
|
22mm x 1" | £13.80 inc VAT (£11.50 ex VAT) |
-
+
|
£13.80 inc VAT | ||
| 35306 |
|
28mm x 1" | £49.19 inc VAT (£40.99 ex VAT) |
-
+
|
£49.19 inc VAT | ||
| M35307 |
|
35mm x 1.1/4" | £63.94 inc VAT (£53.28 ex VAT) |
-
+
|
£63.94 inc VAT | ||
| M35308 |
|
42mm x 1.1/2" | £73.64 inc VAT (£61.37 ex VAT) |
-
+
|
£73.64 inc VAT | ||
| 35309 |
|
54mm x 2" | £127.90 inc VAT (£106.58 ex VAT) |
-
+
|
£127.90 inc VAT |
Stainless installations still need serviceable joints, and the Geberit Mapress 316 Stainless Steel Adaptor Union Female Thread provides one. It has a press socket, a union and a female thread that goes onto a male tail.
Jobs for a Geberit Mapress 316 Stainless Steel Adaptor Union Female Thread
Use it to connect pumps, strainers, meters or water heaters that have male threaded connections. When the item needs servicing, you undo the union instead of cutting the pipe. Also, on commissioning, unions make it easy to take out a strainer basket or swap a faulty valve without draining a long section.
- 15mm x 1/2″, 15mm x 3/4″
- 22mm x 3/4″, 22mm x 1″, 28mm x 1″
- 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
- Press socket, union and female thread
This listing does not say what the union nut is made of. If the job calls for stainless throughout, there is a version supplied complete with a stainless nut. Fit the threaded end onto the equipment first, then press onto the pipe after preparing it. Check the union seal is in place and clean before closing it. Tighten the union carefully with two spanners, one holding the body. Other unions are listed under Geberit Mapress 316 stainless steel.
Union fittings from our Glasgow counter
Plumb Parts is at 555 South Street, Glasgow G14 0QX. You can collect Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order these online.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Maker code: 35301 (15mm x 3/4″), 35305 (22mm x 1″), 35306 (28mm x 1″), 35309 (54mm x 2″)
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: Press Fit socket (black CIIR seal ring), union, female thread
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
Common Questions
What is the union nut made of on this version?
The listing does not say. Geberit sell this adaptor with a standard nut and also with a CrNi stainless nut, so if the job needs stainless throughout, choose the C/W SS nut version.
Can I break the union with the system full?
Isolate and drain the section first, because the union holds full system pressure. Once it is depressurised, undo the nut and the equipment comes away.
Does the union need a washer?
Follow the Geberit fitting design and do not add extra sealant to the union faces. Keep them clean and line them up before tightening, so the joint does not weep.
Datasheets
| Sizes |
15mm x 1/2" ,15mm x 3/4" ,22mm x 3/4" ,22mm x 1" ,28mm x 1" ,35mm x 1.1/4" ,42mm x 1.1/2" ,54mm x 2" |
|---|
