Geberit Mapress Stainless Steel Bulkhead/Deck Passing P/E 15mm to 100mm

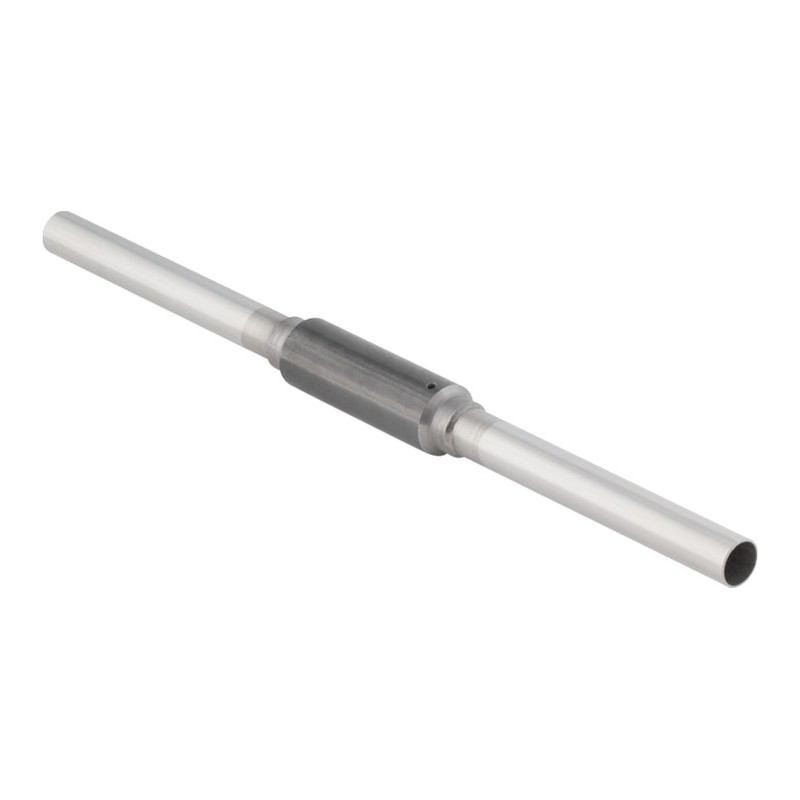

Passing a stainless pipe through a wall, floor or ship’s deck is the job of the Geberit Mapress 316 Stainless Steel Bulkhead/Deck Passing P/E. P/E stands for plain end, so the ends are spigots that go into Mapress press fittings on each side.

Using a Geberit Mapress 316 Stainless Steel Bulkhead/Deck Passing P/E

Bulkhead and deck passings are common in marine and offshore work, where pipe must cross a steel division. They also turn up in tank rooms and plant where pipe passes a fixed wall. The passing gives a solid fixing point at the penetration, and the plain ends let you carry on the run with ordinary Mapress fittings either side.

• 15mm, 22mm, 28mm and 35mm
• 40mm and 50mm
• 65mm, 80mm and 100mm
• Plain ends both sides (P/E)

The larger sizes are listed as 40mm, 50mm, 65mm, 80mm and 100mm, which look like nominal bore sizes rather than pipe outside diameters. So check the Geberit code or ask at the counter which pipe each one suits before you order. How the passing is fixed or welded into the bulkhead depends on the job and any marine or fire rules that apply. Treat each plain end like pipe: mark the depth, push into the press socket and press. Browse the wider Geberit Mapress 316 stainless steel range for fittings either side.

Specialist fittings from our Glasgow counter

Ask at Plumb Parts, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm. Online orders for the deck passing are taken too.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel
• Maker code: 90982 (22mm), 90986 (50mm), 90988 (80mm), 90989 (100mm)
• Material: CrNiMo 316 stainless steel 1.4401 (316)
• Connection: Plain spigot at each end to fit Mapress sockets
• Sizes: 15mm, 22mm, 28mm, 35mm, 40mm, 50mm, 65mm, 80mm and 100mm
• Max pressure: 16 bar for drinking water and heating water
• Max temperature: 100°C for drinking water and heating water without antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe

Common Questions

Are the 40mm to 100mm sizes outside diameters?

They look like nominal bore sizes. In Geberit’s own list the bigger passings match pipe of 42, 54, 76.1, 88.9 and 108 millimetres outside, so check the code with us before ordering.

How is the passing fixed into a steel bulkhead?

Geberit supply it with a protective tube for welding, so it is normally welded into the division. Marine and fire rules may apply, so follow the job specification.

Can I press straight onto the plain ends?

No. The plain ends go into the sockets of Mapress fittings on each side, and those sockets are pressed.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Liquid Media) (PDF)
