Geberit Mapress Stainless Steel Elbow Adaptor 90 Deg Female Thread 15mm to 35mm
Price range: £20.21 through £50.84 inc VAT ( Price range: £16.84 through £42.37 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

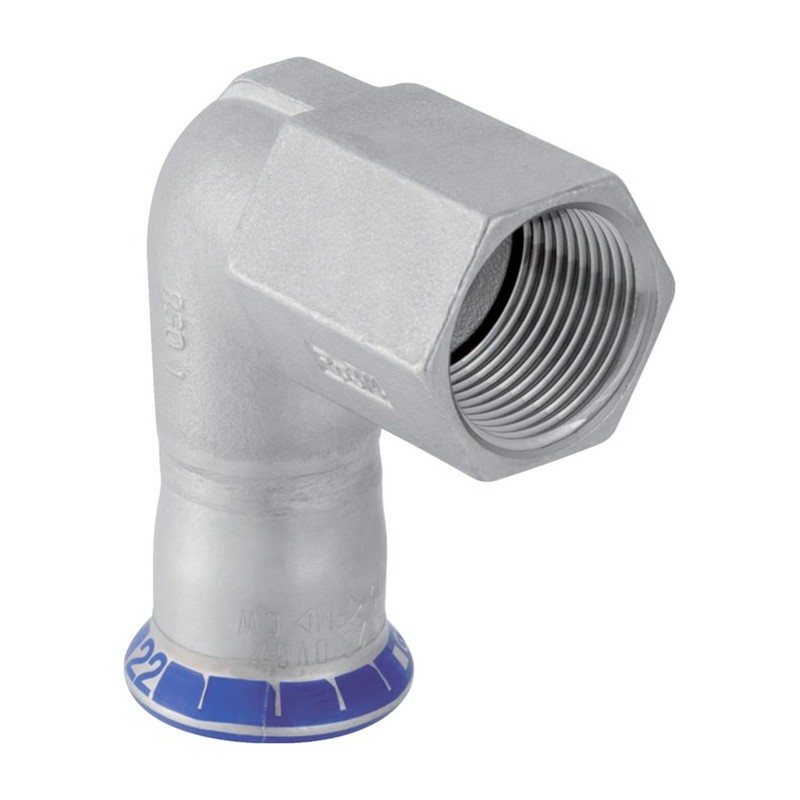

The Geberit Mapress 316 Stainless Steel Elbow Adaptor 90 Deg Female Thread is a right-angle fitting from stainless press pipe to a female thread. Sizes 15mm x 3/8″ to 35mm x 1.1/4″, available at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 33802 |
|
15mm x 3/8" | £20.21 inc VAT (£16.84 ex VAT) |
-
+
|
£20.21 inc VAT | ||
| GEBSSE9015DF |
|
15mm x 1/2" | £20.48 inc VAT (£17.07 ex VAT) |
-
+
|
£20.48 inc VAT | ||
| GEBSSE9022EF |
|
22mm x 3/4" | £29.52 inc VAT (£24.60 ex VAT) |
-
+
|
£29.52 inc VAT | ||
| GEBSSE9028FF |
|
28mm x 1" | £37.73 inc VAT (£31.44 ex VAT) |
-
+
|
£37.73 inc VAT | ||
| GEBSSE9035GF |
|
35mm x 1.1/4" | £50.84 inc VAT (£42.37 ex VAT) |
-
+
|
£50.84 inc VAT |
Dropping off a stainless run into a male threaded part at right angles is neat with the Geberit Mapress 316 Stainless Steel Elbow Adaptor 90 Deg Female Thread. A press socket, a 90 degree turn and a female thread sit in one fitting.
Where the Geberit Mapress 316 Stainless Steel Elbow Adaptor 90 Deg Female Thread works
It suits connections to valves, gauges, vents and appliance tails that sit at right angles to the pipe. Using one fitting rather than an elbow plus a threaded adaptor saves a joint and some length. That helps in cupboards, ducts and plant rooms where clearances are tight.
- 15mm x 3/8″ and 15mm x 1/2″
- 22mm x 3/4″
- 28mm x 1″ and 35mm x 1.1/4″
- Press socket and 90 degree female thread
Get the threaded part screwed in before pressing, so tightening it does not twist the pressed seal. A sealant suited to stainless is the safe choice. Set the outlet direction carefully, because you cannot turn the elbow after pressing. Then cut, deburr and mark the pipe, push it in and press with the right jaw. Check the depth mark afterwards. The male thread version is also listed in our Geberit Mapress 316 stainless steel range.
Elbow adaptors in Glasgow
Plumb Parts, at 555 South Street, Glasgow G14 0QX, opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm for collection, and takes orders online.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: Press Fit socket (black CIIR seal ring) at 90 degrees to a female thread
- Sizes: 15mm x 3/8″, 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″ and 35mm x 1.1/4″
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
Common Questions
Can it take a 3/8″ valve on 15mm pipe?
Yes, the 15mm x 3/8″ size is for small male threaded valves and gauges. The 15mm x 1/2″ is the one for standard tap and valve tails.
Can the outlet be turned after pressing?
No. Set the outlet direction, make the threaded joint and only then press, because turning a pressed elbow damages the seal.
Is a male thread version made?
Yes, the 90 degree elbow adaptor with a male thread is a separate listing. Pick that one when the part you connect to has a female port.
Datasheets
| Sizes |
15mm x 3/8" ,15mm x 1/2" ,22mm x 3/4" ,28mm x 1" ,35mm x 1.1/4" |
|---|
