Geberit Mapress Stainless Steel Gas 90 Degree Elbow 15mm to 108mm
Price range: £13.44 through £321.50 inc VAT ( Price range: £11.20 through £267.92 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

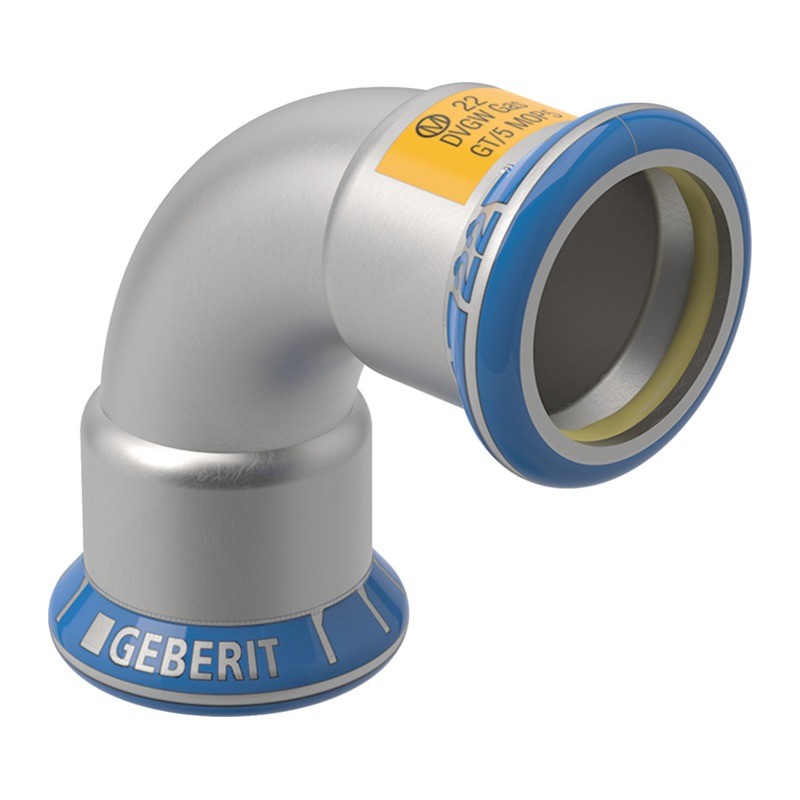

The Mapress Stainless Gas 90 Degree Elbow is a Geberit press fit right-angle bend with a press socket on each end, yellow HNBR seals and yellow gas marking. Sold from 15mm up to 108mm. Collect from our Glasgow shop at 555 South Street G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 34000 |
|
15mm | £13.44 inc VAT (£11.20 ex VAT) |
-
+
|
£13.44 inc VAT | ||
| 34002 |
|
22mm | £18.34 inc VAT (£15.28 ex VAT) |
-
+
|
£18.34 inc VAT | ||
| 34003 |
|
28mm | £23.22 inc VAT (£19.35 ex VAT) |
-
+
|
£23.22 inc VAT | ||
| 34187 |
|
35mm | £34.64 inc VAT (£28.87 ex VAT) |
-
+
|
£34.64 inc VAT | ||
| 34188 |
|
42mm | £54.30 inc VAT (£45.25 ex VAT) |
-
+
|
£54.30 inc VAT | ||
| 34189 |
|
54mm | £74.88 inc VAT (£62.40 ex VAT) |
-
+
|
£74.88 inc VAT | ||
| 34441 |
|
76.1mm | £191.86 inc VAT (£159.88 ex VAT) |
-
+
|
£191.86 inc VAT | ||
| 34442 |
|
88.9mm | £235.13 inc VAT (£195.94 ex VAT) |
-
+
|
£235.13 inc VAT | ||
| 34443 |
|
108mm | £321.50 inc VAT (£267.92 ex VAT) |
-
+
|
£321.50 inc VAT |
The Mapress Stainless Gas 90 Degree Elbow is the standard right-angle bend for stainless press fit gas pipework, with a press socket on each end, in sizes from 15mm to 108mm, for Gas Safe registered engineers. It is the fitting you use most on a commercial kitchen supply or a plant room gas header.
The body is CrNiMo 316 stainless steel 1.4401 (EN 10088). Each socket carries a yellow HNBR seal ring and the fitting is marked yellow. Geberit list the gas range for natural gas, liquefied gas and biogas. It has a pressing indicator and is made to leak if a joint is left unpressed.
Cut the pipe square and deburr it, as a burr can roll the seal. Mark the insertion depth so you can check the pipe has not backed out while you get the tool on, then press with the jaw for that size and remove the indicator. We carry 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm and 108mm.
The street version with a plain end is in our Geberit Mapress Gas 316 Stainless Steel Press Fit section.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel Gas
- Maker code: 34000 (15mm), 34002 (22mm), 34003 (28mm), 34187 (35mm), 34188 (42mm), 34189 (54mm), 34441 (76.1mm), 34442 (88.9mm), 34443 (108mm)
- Material: CrNiMo 316 stainless steel 1.4401 (EN 10088), yellow HNBR seal ring
- Connection: Press socket both ends
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm, 108mm
- Suitable for: Natural gas, liquefied gas and biogas (Geberit datasheet)
- Standard/approval: Gas approvals to DVGW G 260
- Max pressure: 5 bar (maximum operating pressure)
- Max temperature: -20°C to +70°C
Common Questions
What should I do after pressing a Mapress Stainless Gas 90 Degree Elbow? Remove the pressing indicator to show the joint is done, then carry out a tightness test before commissioning.
Which press jaws do I need? Pressing jaws or collars approved by Geberit for Mapress in that size. Check your tool is suitable for stainless.
How do I tell gas Mapress from water Mapress? Gas fittings are marked yellow with a yellow HNBR seal and yellow plugs. The water range has black seals and clear plugs, and must not be used on gas.
Who can install Mapress gas fittings? Any work on a gas installation must be carried out by a Gas Safe registered engineer, including the tightness test.
Buy online or collect from our Glasgow counter at 555 South Street, G14 0QX. Hours are Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Datasheets
- Geberit Mapress 316 Stainless Steel Application Overview (Gaseous Media) (PDF)
| Size |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,76.1mm ,88.9mm ,108mm |
|---|
