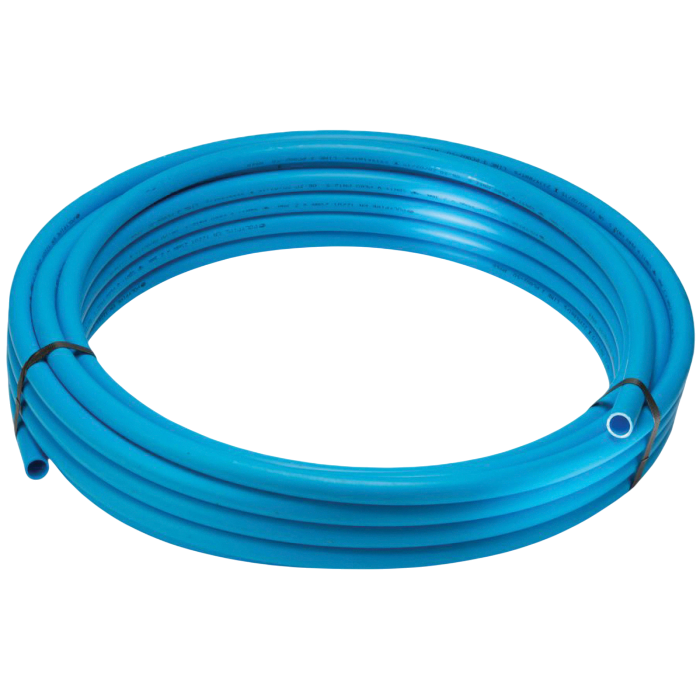

MDPE Blue Pipe Coil Main Water Supply 25mm

MDPE Blue Pipe Coil Main Water Supply 25mm is what most fitters lay for a new underground water supply into a house, garage or outbuilding. The blue colour marks it as drinking water pipe for burying, and we sell it in 25m, 50m and 100m coils.

Blue MDPE water pipe uses

Use 25mm for the service pipe from the boundary stopcock to the property, for renewing an old lead or iron supply, and for feeding garden buildings, stables and site cabins. It gives a decent flow over longer distances than 20mm. Scottish Water’s guidance is to lay supply pipes at a depth of between 750mm and 1350mm to protect them from frost and damage, and you need their written permission to go shallower.

• 25mm x 25m, for short runs and repairs
• 25mm x 50m
• 25mm x 100m, for long supplies or rural runs

Join it with 25mm MDPE Compression fittings or Push Fit fittings made for MDPE. Fit a pipe insert (liner) into the end before you push it into a Compression fitting, because it supports the pipe wall so the joint stays tight. Cut square with plastic pipe cutters. In the trench, lay the pipe on a bed of sand or fine fill with no stones and snake it slightly to allow for ground movement. Where it comes up into the building, duct it and insulate the section above ground. Blue MDPE should stay buried, so don’t leave it exposed outside.

On an MDPE blue pipe coil main water supply job you’ll usually need 25mm fittings, inserts and a transition fitting onto copper or plastic indoors. Fittings and other MDPE pipe sizes sit in our pipes, hoses and insulation area.

25mm blue MDPE for Glasgow jobs

Collect it from Plumb Parts, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or buy online.

Specification

• Material: MDPE (medium density polyethylene), blue
• Sizes: 25mm, in 25m, 50m or 100m coils
• Suitable for: Buried cold drinking water supplies
• Pack quantity: One coil

Common Questions

Is 25mm MDPE 25mm inside?

No, the 25mm is the outside diameter. The bore is smaller because of the wall thickness, so do not size it like copper’s inside.

Do I need a pipe insert in 25mm MDPE?

Yes, in Compression fittings. The insert supports the soft wall, so the joint stays tight and does not weep later.

Can blue MDPE run above ground?

It is made to be buried. Any short part that comes above ground should be ducted and insulated, and kept out of daylight.
