JG Speedfit MDPE Male Connector 20mm to 32mm
Price range: £5.87 through £12.92 inc VAT ( Price range: £4.89 through £10.77 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

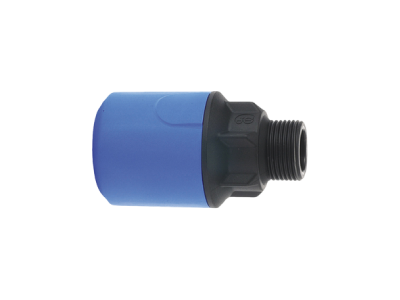

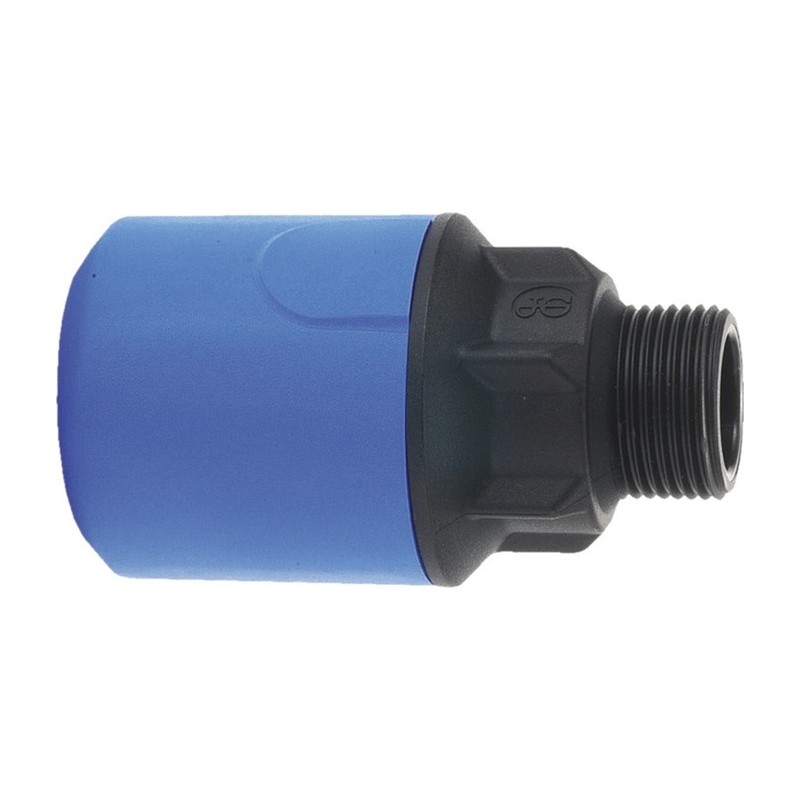

The JG Speedfit MDPE male connector is Push-Fit for MDPE pipe on one end and has a male thread on the other. Sizes 20mm x 1/2 inch, 25mm x 3/4 inch, 32mm x 3/4 inch and 32mm x 1.1/2 inch. From Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| UG101B |
|
20mmX1/2" | £7.09 inc VAT (£5.91 ex VAT) |
-
+
|
£7.09 inc VAT | ||
|
|
25mmX3/4" | £12.92 inc VAT (£10.77 ex VAT) |
-
+
|
£12.92 inc VAT | |||
|
|
32mmX3/4" | £5.87 inc VAT (£4.89 ex VAT) |
-
+
|
£5.87 inc VAT | |||
| UG104B |
|
32mmX1.1/2" | £6.86 inc VAT (£5.72 ex VAT) |
-
+
|
£6.86 inc VAT |
Getting blue MDPE pipe into a female threaded port is the job of the JG Speedfit MDPE male connector. It is Push-Fit on the pipe end and has a male thread on the other.
What the JG Speedfit MDPE male connector is used for
Screw it into female threaded valves, tank connectors, meter boxes and brass fittings. That makes it useful on a supply to a cattle trough, a garage tap, or an outbuilding with its own stop valve. Because the pipe side is Push-Fit, there are no nuts to tighten in a tight trench.
- 20mm x 1/2 inch
- 25mm x 3/4 inch
- 32mm x 3/4 inch and 32mm x 1.1/2 inch
- Male thread, Push-Fit pipe end
Thread it into the female port first, using PTFE tape on the male thread. Tighten it firmly but do not lean on plastic threads. Fit an insert in the pipe, cut square, and push the pipe home until it stops. A quick pull confirms the collet has gripped. Test under pressure before covering any pipe.
Collecting connectors in Glasgow
For the female version and the elbows, see our MDPE and alkathene fittings range.
Pick it up at Plumb Parts, 555 South Street, Glasgow G14 0QX. The counter runs Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Online ordering works as well.
Specification
- Brand: JG Speedfit
- Range: MDPE cold water services fittings
- Maker code: UG101B (20mmX1/2″), UG104B (32mmX1.1/2″)
- Connection: Push Fit for MDPE pipe with pipe insert, male thread
- Sizes: 20mm x 1/2″, 25mm x 3/4″, 32mm x 3/4″ and 32mm x 1.1/2″
- Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
- Max pressure: 16 bar at 20°C
- Max temperature: Cold water only, rated at 20°C
- Suitable for: Blue MDPE (PE80) cold water service pipe, above or below ground
Common Questions
Which male connector suits a 1 1/2 inch port on 32mm pipe?
The 32mm x 1.1/2″ male connector. There is also a 32mm x 3/4″ for smaller ports on a 32mm supply.
Can I screw a plastic male connector into a brass tank connector?
Yes, but tighten it gently. Too much force on a plastic thread inside brass can crack it.
Is the male connector suitable for a trough supply?
Yes, it is often used to bring a supply into a trough valve or field tap. Keep the threaded joint reachable and protect it from frost.
Datasheets
| Size |
20mmX1/2" ,25mmX3/4" ,32mmX3/4" ,32mmX1.1/2" ,35X35mm ,42X42mm ,54X54mm ,67X67mm ,76X76mm ,108X108mm |
|---|
