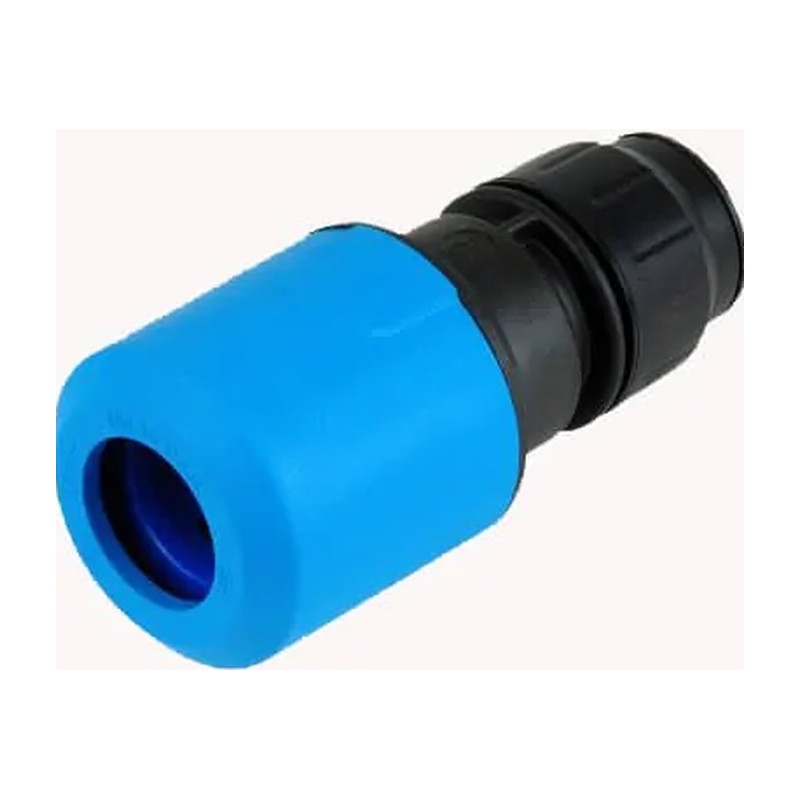

JG Speedfit MDPE to Copper Pipe Connector 20mm to 32mm

Where the blue supply pipe meets the copper indoors, the JG Speedfit MDPE to copper pipe connector makes the change in one straight fitting. Both ends are Push-Fit.

Sizes of JG Speedfit MDPE to copper pipe connector

The 25mm x 15mm and 25mm x 22mm suit most house supplies, going onto the copper rising main. The 20mm x 15mm suits smaller supplies and garden runs. The 32mm x 28mm is for larger properties and commercial units. Because there is no nut and olive, there is less to go wrong in the cramped space under a sink.

• 20mm MDPE x 15mm copper
• 25mm MDPE x 15mm or 22mm copper
• 32mm MDPE x 28mm copper
• Push-Fit, joints can be undone

Fit an insert in the MDPE. Cut the copper square, take off the burr and give it a wipe, so the O-ring is not nicked going in. Push each pipe in to the stop, then pull to check. Fit a stop tap close by if there is not one already, so the house can be isolated.

Supply fittings in Glasgow

For stop taps and elbows, look in our MDPE and alkathene fittings range.

Visit the Plumb Parts counter, 555 South Street, Glasgow G14 0QX. It opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order online.

Specification

• Brand: JG Speedfit
• Maker code: UG601B (20mm x 15mm), UG603B (25mm x 15mm), UG602B (25mm x 22mm), UG604B (32mm x 28mm)
• Range: MDPE cold water services fittings
• Connection: Push Fit MDPE end with pipe insert, Push Fit copper end
• Sizes: 20mm x 15mm, 25mm x 22mm, 25mm x 15mm and 32mm x 28mm
• Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
• Max pressure: 16 bar at 20°C
• Max temperature: Cold water only, rated at 20°C
• Suitable for: Joining blue MDPE supply pipe to copper

Common Questions

Which connector joins a 25mm supply to a 15mm rising main?

Use the 25mm x 15mm size. If the rising main is 22mm, pick the 25mm x 22mm instead.

Does the copper end of the connector need an insert?

No, copper keeps its shape, so it only needs a square cut, deburring and a wipe. The MDPE end always needs a JG insert.

Where is the 32mm x 28mm connector used?

On bigger properties and small commercial units, where a 32mm MDPE main meets 28mm copper. Fit a stop tap close by so the building can be isolated.

Datasheets

• JG Speedfit Cold Water PE to Copper Coupling Data Sheet (PDF)
