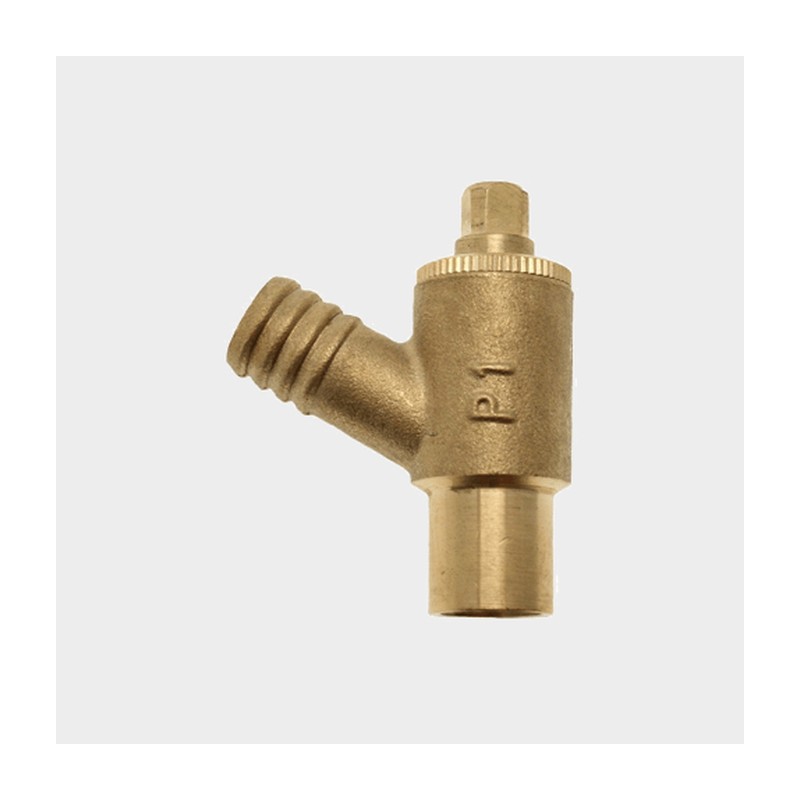

MT Draw Off Cock Type A Capillary 15mm

Soldered straight onto the pipe, the MT Draw Off Cock Type A Capillary gives a neat drain point on 15mm copper. It has a capillary end that takes the pipe like an End Feed fitting, and a hose outlet with a spindle to open and close it.

MT Draw Off Cock Type A Capillary options

There are three choices. The standard 15mm is the everyday version. The 15mm DZR version is made from dezincification resistant brass, which matters in areas where water attacks ordinary brass. The 15mm long tail has a longer pipe end, handy when you need more reach to clear insulation or a wall.

Fit it at the lowest point of the circuit, so the system can empty fully. Clean and flux the pipe, solder the joint, and keep the flame off the valve body as much as you can. Open the spindle slightly while you heat, so no seal is cooked.

• 15mm, 15mm DZR and 15mm long tail
• Capillary end for soldering to copper
• Hose outlet for draining
• Opened with a drain cock key or spanner

Other drain cocks are in Valves & Control Devices.

Buying drain cocks in Glasgow

Call at Plumb Parts, 555 South Street, Glasgow G14 0QX, Monday to Friday 8am to 5pm or Saturday and Sunday 8am to 1pm. Ordering online is also open.

Specification

• Connection: capillary pipe end for soldering, hose outlet
• Sizes: 15mm, 15mm DZR, 15mm long tail
• Suitable for: a soldered drain point on 15mm copper

Common Questions

Which capillary draw off cock option should I choose?

The standard 15mm for most jobs, the DZR one where water attacks ordinary brass, and the long tail where you need extra reach past insulation or a wall.

How do I solder it without damaging the seal?

Open the spindle a little while you heat and keep the flame on the joint, not the body. Let it cool before closing it.

Can it go on a heating system?

Yes, it is a drain point for heating or water pipework. Fit it low so the circuit drains fully.
