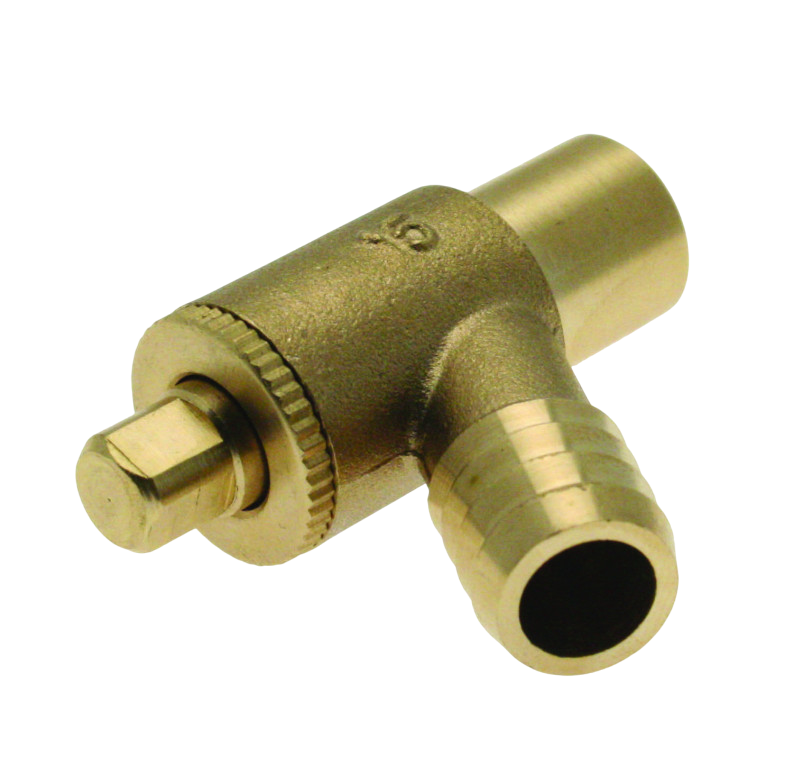

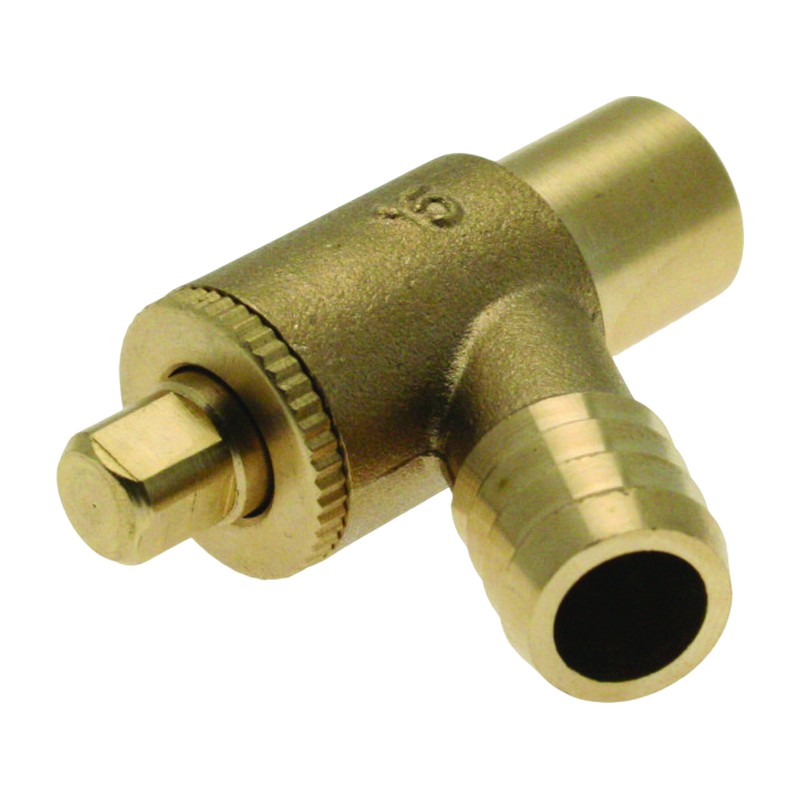

MT Draw Off Cock Type A DZR 1/2 inch

For a threaded drain point that will last in hard-wearing conditions, the MT Draw Off Cock Type A DZR is a 1/2″ drain valve made from DZR brass. It screws into a female socket at the low point of the pipework and has a hose outlet for emptying the system.

About the MT Draw Off Cock Type A DZR

DZR brass resists dezincification, the slow loss of zinc that can leave ordinary brass crumbly in some water supplies. So it is the better choice on a cold main, a buried run or anywhere the fitting will sit full of water for a long time.

Wrap the thread with PTFE tape or use jointing compound, then screw it into a 1/2″ female tee, elbow or boss. Point the outlet where a hose can be fitted easily. To drain, push the hose on, run it to a gully and open the spindle with a key or spanner.

• Size: 1/2″
• DZR brass body
• Threaded inlet
• Hose outlet for draining

Plain brass and capillary drain cocks sit beside it in Valves & Control Devices.

Shop for it in Glasgow

DZR drain cocks can be collected at 555 South Street, Glasgow G14 0QX from Plumb Parts, open Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm. You can order online if you prefer.

Specification

• Material: DZR brass
• Connection: male threaded inlet, hose outlet
• Sizes: 1/2″
• Suitable for: a threaded drain point on pipework that stays full of water

Common Questions

What does the 1/2″ DZR draw off cock screw into?

A 1/2″ female socket, such as a tee, an elbow or a boss at the low point of the system.

Which way should the outlet face?

Aim it downward or sideways at an angle that lets a hose drop to the gully in a smooth run with no kinks.

Does the thread need sealing?

Yes, wrap it with PTFE tape or use jointing compound, then screw it in firmly.
