Pegler XPress Press-Fit Gas Copper 45 Deg Street Elbow 15mm to 108mm

Pegler XPress Press-Fit Gas Copper 45 Deg Street Elbow

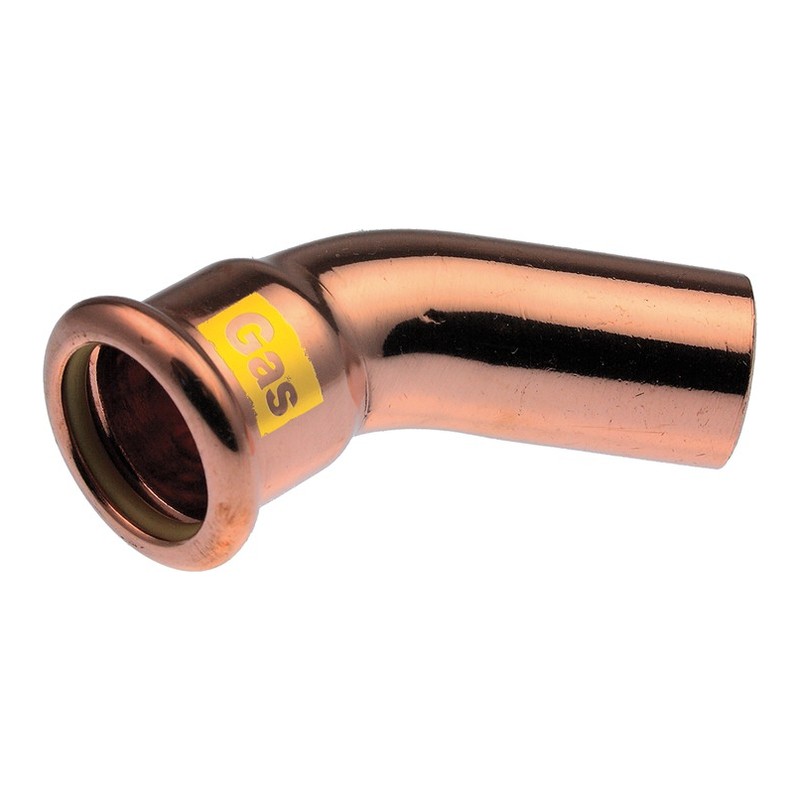

This is a 45 degree gas street elbow with a Press Fit end and a male spigot, in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm.

It makes a gentle change of direction in gas pipework, and the spigot plugs into another gas press fitting. Gas and water Xpress are not interchangeable: gas fittings have yellow seals and gas markings. By law, gas pipework is left to a Gas Safe registered engineer.

Plumb Parts stocks the full Pegler XPress Press-Fit Fittings range, in sizes from 15mm to 108mm.

Other fitting types in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Back plate Elbows, Copper Long Pattern BackPlate Elbows, Copper 90deg Bends, Copper 45 deg Elbows, Pegler XPress Gas Press-Fit Copper 45 Deg Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper keeps installation simple. No heat is involved, jointing is rapid, and the same system covers domestic, commercial and industrial pipework.

Why installers choose Xpress

• Carries the BSI Kitemark to BS 8537:2010
• Gas rating: -20°C to +70°C
• Gas rating: 5 bar on external above-ground pipework, 1 bar inside buildings
• With Leak Before Press, a fitting left unpressed will leak on test, so it cannot be missed
• No flame needed, so no hot works permit or extra insurance is required
• Backed by a wide spread of British and overseas approvals
• Rapid jointing cuts labour and time compared with the traditional way

Full gas limits are in the Specification below.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: 39835 (15mm), 39836 (22mm), 39837 (28mm), 39838 (35mm), 39839 (42mm), 39840 (54mm), 39356 (66.7mm), 39357 (76.1mm), 39359 (108mm)
• Material: Copper
• Connection: Press Fit end with a male spigot, 45 degree
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

What is a 45 degree gas street elbow for?

It makes a gentle turn in gas pipework, with a spigot end that plugs into another gas press fitting.

Gas or water Xpress: how do I tell them apart?

Xpress Gas fittings have yellow seals and gas markings, while water ones do not. Never swap them over.

Can a homeowner fit it?

No. By law, gas pipework is for a Gas Safe registered engineer only.

Plumb Parts, 555 South Street, Glasgow G14 0QX. Collect in store or have it delivered. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Datasheets

• Pegler XPress SG21S Product Datasheet (PDF)
• VSH XPress Installation Instructions (PDF)
